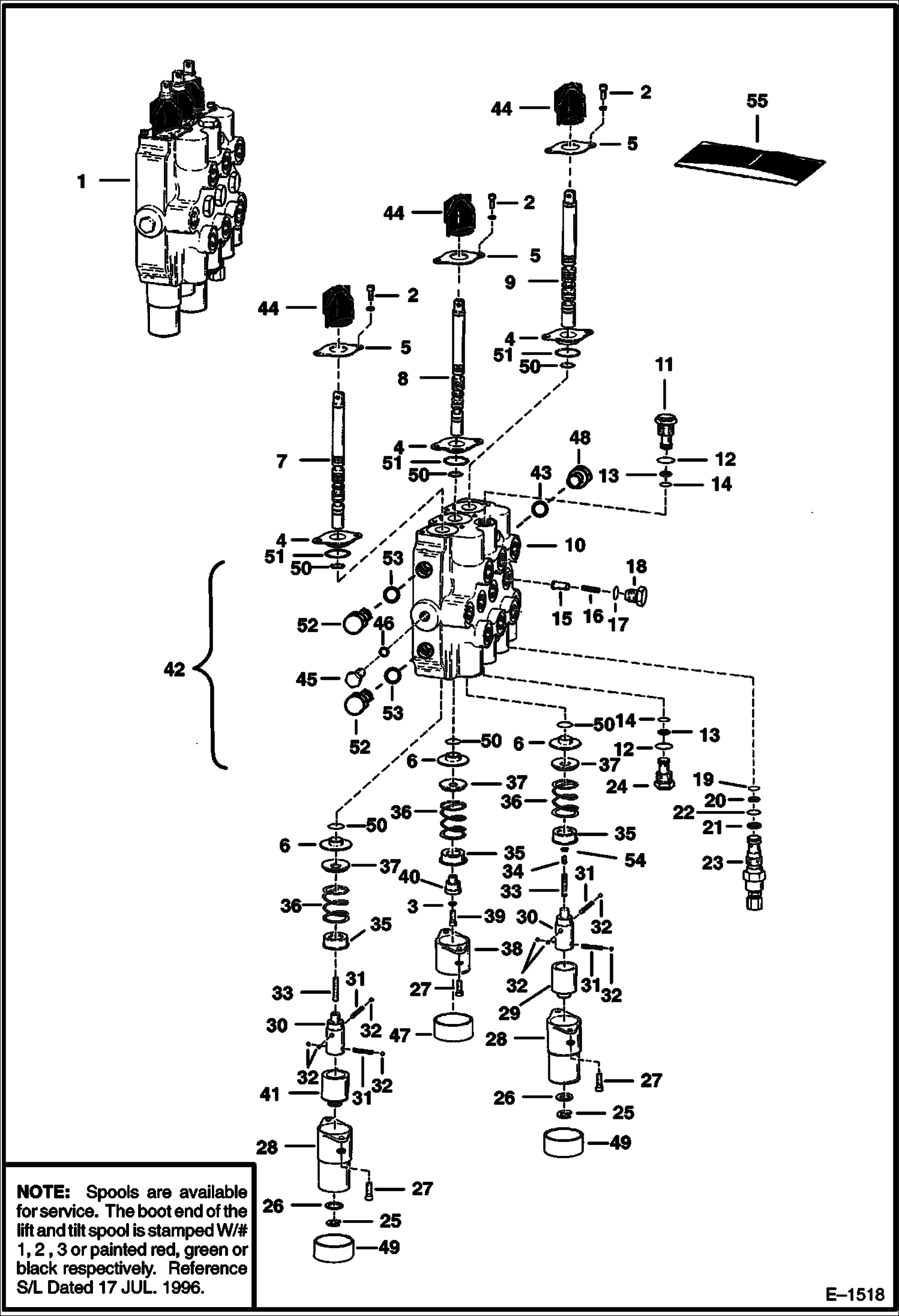

Запчасти Bobcat 400s HYDRAULIC VALVE HYDRAULIC SYSTEM

1

VALVE See BTI347 NLA - Ref. 2 - 53 - Was 6596193 - A

2

29G412

BOLT Was 6588163 - B

3

22E4

WASHER

4

6589565

BUSHING

5

6589564

RETAINER

6

6595663

BUSHING Seal Backup

7

6589663

SPOOL auxiliary

8

6666591

SPOOL tilt - #1 or Red - SEE NOTE

8

6666592

SPOOL tilt - #2 or Green - SEE NOTE

8

6666593

SPOOL tilt - #3 or Black - SEE NOTE

9

6666588

SPOOL lift - #1 or Red - SEE NOTE

9

6666589

SPOOL lift - #2 or Green - SEE NOTE

9

6666590

SPOOL lift - #3 or Black - SEE NOTE

10

BODY NSS

11

6667549

VALVE Was 6665533 - A

12

79K10

O RING 10

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required

14

6677106

O-RING back-up washer not required

15

6592115

SEAT

16

6592117

SPRING, LOAD CHECK

17

79K8

O RING 10

18

6592116

NUT

19

O-RING NSS

20

WASHER NSS

21

O-RING NSS

22

WASHER NSS

23

6676195

VALVE main relief - W/Ref. 19-22 - Was 6598959 - A

24

6592720

PLUG W/Ref. 12-14

25

799119

RING

26

6592098

WASHER

27

29G416

BOLT Was 6588982 - B

28

6589226

COVER, END 0.63'' flange

29

6531270

SLEEVE, DETENT lift

30

6587575

ADAPTER

31

6592107

SPRING

32

6592105

BALL

33

6586918

SCREW

34

6596807

PLUG plastic - 0.46'' long - A

35

6592100

COLLAR

36

6587580

SPRING

37

7211397

WASHER, SPRING Was 6587523 - A

38

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

39

6588166

SCREW Was 30G000418B - D

40

6592109

ADAPTER

41

6595027

SLEEVE auxiliary

42

SHORT BLOCK NLA - Order Ref. 1

43

79K12

O RING 10 flat boss face

43

99K12

O RING tapered boss face

43

95K12

O-RING tapered boss face - socket head

44

6587763

BOOT

45

24K7

PLUG W/Ref. 46 - flat boss face

45

90K7

PLUG tapered boss face - W/Ref. 46 - Was 90KN00007B - A

46

79K10

O RING 10 flat boss face

46

95K10

O-RING tapered boss face

47

6662848

CAP

48

24K8

PLUG W/Ref. 43 - flat boss face

48

24K8

PLUG W/Ref. 43 - tapered boss face - Was 24KN00008B - A

48

90K8

PLUG W/Ref. 43 - tapered boss face - socket head - Was 90KV00008B - A

49

6660644

CAP

50

6683274

SEAL, SPOOL 10 spool - Was 6665846 - A

51

1K127

O-RING 10 Was 93K127 - A

52

6816855

PLUG W/Ref. 53 - Was 6534973 - A

53

79K7

O RING 10

54

54K20002

O'RING 10

55

6809425

SEAL KIT Upper Deck - Ref. 12-14 & 17 - Was 6586461 - A

55

6816250

KIT, SEAL Spool - Was 6803605 - A

55

6659574

SEAL KIT Main Relief - Was 6661328 - B

55

6816715

KIT, SEAL See BTI374 - Also Order (2) more of 6683274 seal and (1) of 6587763 boot - Ref. 2, 12-14, 17, 19-22, 27, 34, 44, 46, 50, 51, 53 & 54
