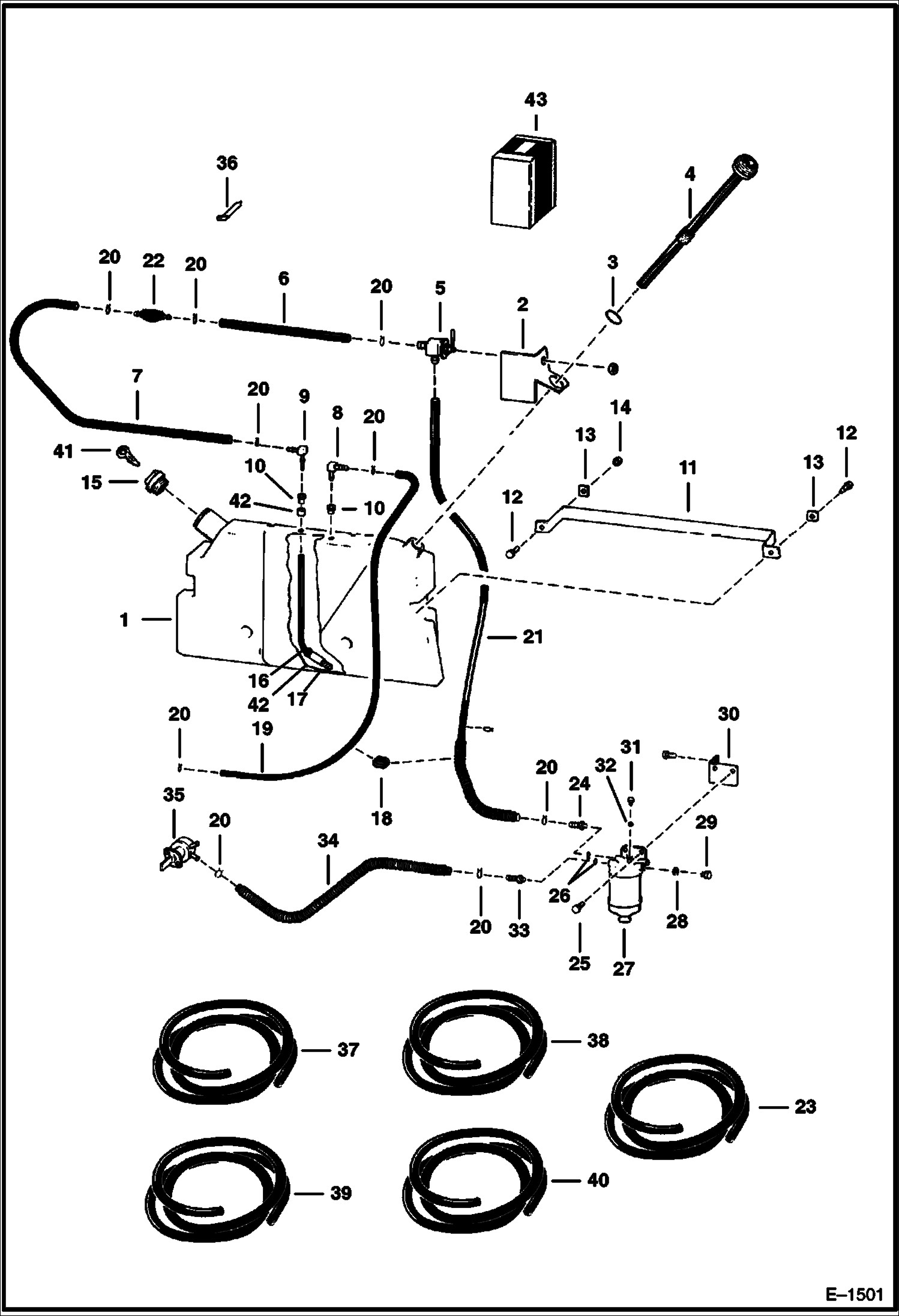

Запчасти Bobcat 400s FUEL SYSTEM (5618 11001 - & 5619 11001 -) MAIN FRAME

1

6708327

TANK

2

6564038

MOUNT

3

25K60204

O RING 10

4

6598910

GAUGE

5

6599455

VALVE shut-off

6

HOSE NLA - 17'' (432 mm) - Order Ref. 37

7

HOSE NLA - 15'' (381 mm) - Order Ref. 37

8

6630041

ELBOW

9

6598908

ELBOW Was 6681462 - A

10

6553411

BUSHING 0.38'' ID

11

6564037

BAND

12

84G3716

SCREW 5

13

6559447

WASHER

14

61D6

NUT 5

15

6661114

CAP. DIESEL Green

15

6661696

CAP, FUEL LOCKING locking - W/Ref. 40 - Was 6654373 - A

16

HOSE NLA - 14.75'' (375 mm) - Order 2 of 6569752

17

6650239

SCREEN, FUEL PICKUP

18

1023368

GROMMET

19

HOSE NLA - 36'' (914 mm) - Order Ref. 39

20

42HS04

CLAMP, HOSE Was 6515575 - A

21

HOSE NLA - 42'' (1067 mm) - Order Ref. 38

22

6657734

PUMP, PRIMER HAND 124 mm (4.88'') long

23

6563505

CONDUIT bulk 5/8'' (15,8 mm) I.D. - Sold Per Foot - Order Feet Required

24

6560355

FITTING

25

84G3716

SCREW 5

26

79K5

O RING 10

27

FILTER See Illustration FUEL FILTER/ B5653

28

6515466

WASHER sealing

29

6515682

PLUG

30

6593309

MOUNT

31

6515676

PLUG

32

6515468

WASHER sealing

33

1324240

CONNECTOR

34

HOSE 14'' (356 mm) - Order Ref. 37

35

6666850

PUMP, FUEL See Illustration FUEL & INJECTION PUMP/ B4158

36

6624289

STRAP, TIE

37

6577821

HOSE bulk - sold per foot

38

6577822

HOSE bulk - sold per foot

39

6578169

HOSE bulk - sold per foot - 0.19'' ID

40

6565434

CONDUIT bulk 1/2'' (12,7 mm) I.D. - Sold Per Foot - Order Feet Required

41

6654374

KEY

42

6661213

RING, COMPRESSION
