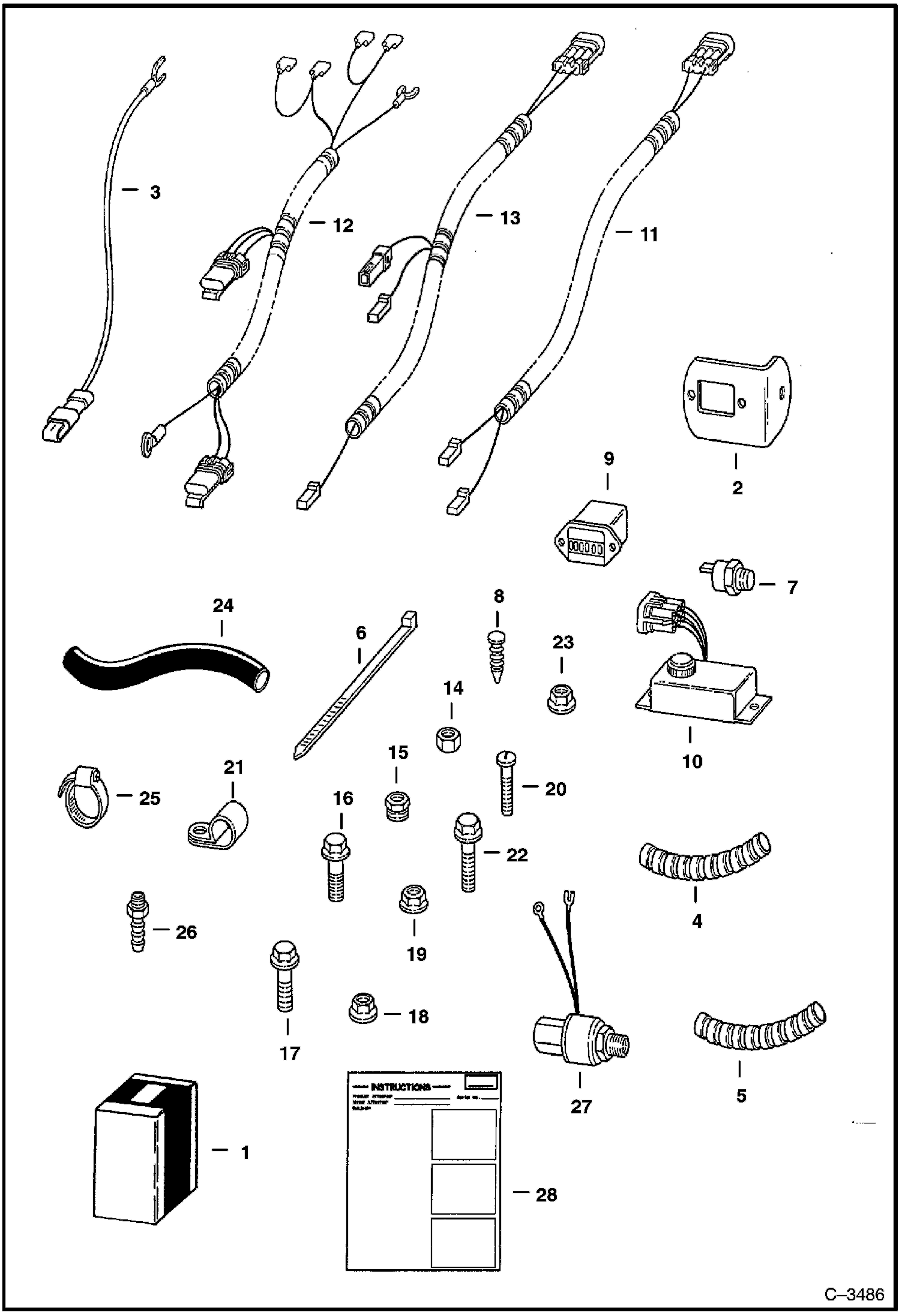

Запчасти Bobcat 400s RENTAL KIT (5618 11001, 5619 11001 & Above) ACCESSORIES & OPTIONS

1

6714883

KIT W/Ref. 2-28

2

6552906

BRACKET

3

6567968

WIRE assy.

3

614142

SLEEVE 10

3

733611

TERMINAL female

3

6517924

CONNECTOR

3

30R107

TERMINAL

4

CONDUIT NLA - 76.50'' (1943,1 mm) - bulk - Sold Per Foot - Order Ref. 5

5

6584978

CONDUIT bulk - sold per foot

6

6610510

TIE

7

6630821

SWITCH temp.

8

6664221

RETAINER

9

6664886

HOURMETER

10

6669420

CONTROLLER

11

6700228

HARNESS Hourmeter

11

733611

TERMINAL female

11

6517924

CONNECTOR

11

6640690

PIN male

11

6641176

SEAL cable

11

6641179

CONNECTOR 2-pin

11

6641180

LOCK Use W/ 2-pin connector

12

6714038

HARNESS

12

733616

TERMINAL male

12

6640691

PIN female

12

6641176

SEAL cable

12

6641178

CONNECTOR 2-pin

12

6641180

LOCK Use W/ 2-pin connector

12

6641181

LOCK 6-pin

13

6714471

HARNESS

13

733611

TERMINAL

13

733616

TERMINAL

13

6519548

CONNECTOR

13

6517924

CONNECTOR

13

6640690

PIN male

13

6641176

SEAL cable

13

6641179

CONNECTOR 2-pin

13

6641180

LOCK Use W/ 2-pin connector

14

12D6

NUT 10

15

19F5

BSHG

16

35C408

BOLT

17

35C716

BOLT

18

55D4

NUT

19

55D7

NUT

20

85G608

SCREW

21

30H57

CLAMP Insulated

22

35C516

BOLT 10

23

57D5

NUT

24

6577822

HOSE 36'' (914mm) required - bulk - Sold Per Foot

25

42HS04

CLAMP, HOSE Was 6515575 - A

26

6513421

CONNECTOR barbed

27

7024822

SOLENOID, FUEL Was 6559117

28

6900402

INSTRUCTIONS
