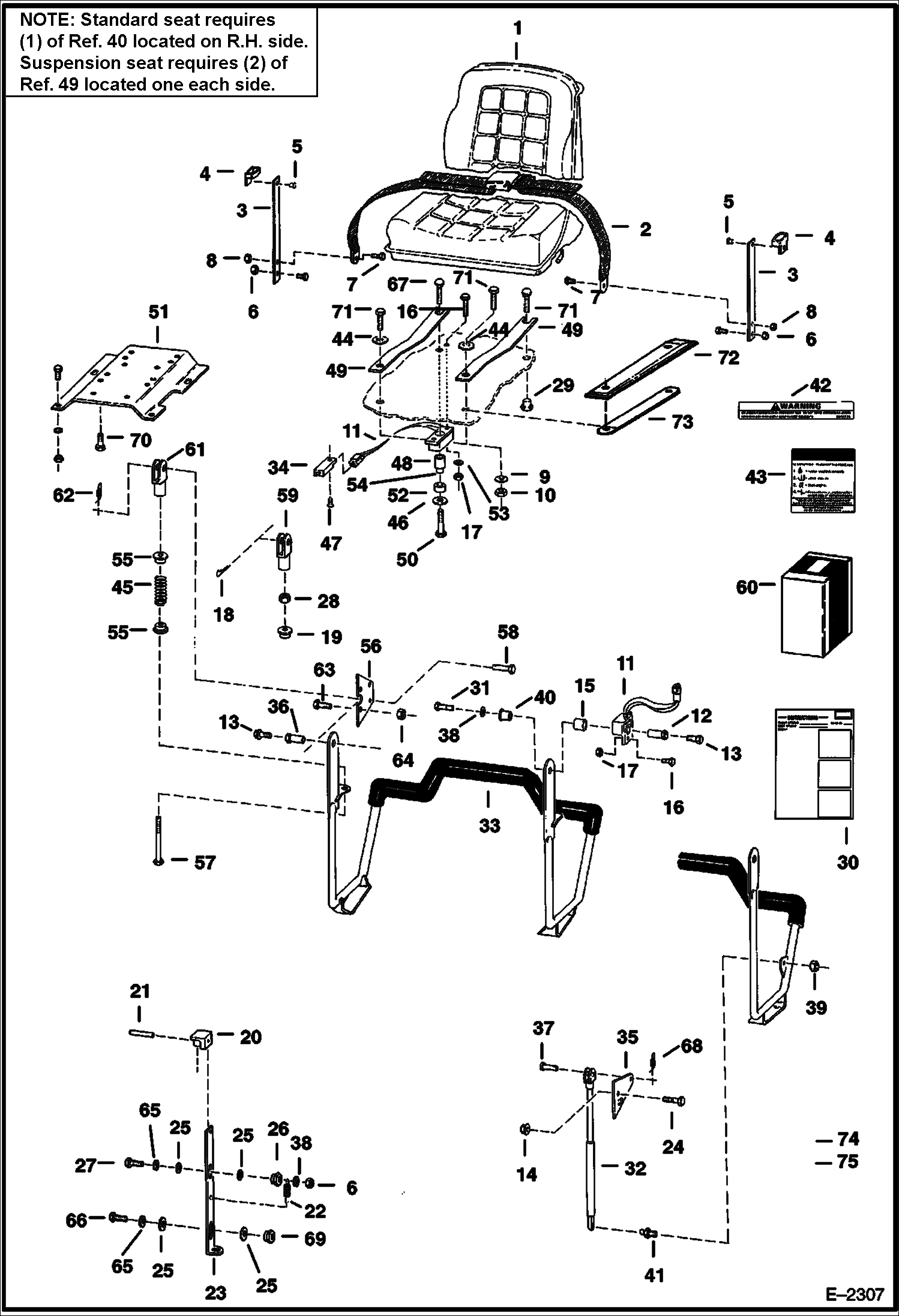

Запчасти Bobcat 400s SEAT & SEAT BAR MAIN FRAME

1

SEAT See Illustration SEAT & SEAT BAR/ B25175 STANDARD SEAT REQUIRES (1) OF Ref. 49 LOCATED ON R.H. SIDE - SUSP. SEAT REQUIRES (2) OF Ref. 49 LOCATED ONE EACH SIDE

2

SEAT BELT NLA - Order 6675074 - Was 6564774 - A

2

SEAT BELT NLA - Order 6675074 - Was 6667875 - A

2

SEAT BELT NLA - w/spring plates - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plate) - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

GUIDE ASSY NLA - W/Ref. 4 & 5 - 13.75'' (349,2 mm) Use W/NLA 6564774 seat belt - Was 6565354 - A

3

GUIDE ASSY NLA - W/Ref. 4 & 5 - 12.25'' (311,1 mm) Use W/NLA 6667875 seat belt - Order 6711908 spring plate, Ref. 4 & (2) of Ref. 5 - Was 6711907 - A

3

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 )

3

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6630207

RIVET 5

6

85D6

NUT, 5

7

BOLT NLA - Was 17C000715B - A

8

85D7

NUT

9

6701174

WASHER

10

61D5

NUT

10

61D5

NUT

10

61D5

NUT

10

61D5

NUT

10

59D5

NUT 5

10

59D5

NUT 5

11

7105252

SENSOR, SEAT BAR POSITION Also Order Ref. 54 - Was 6680430 - A

12

6706685

BUSHING

13

35C608

BOLT

13

35C608

BOLT

13

35C612

BOLT

13

35C612

BOLT

14

83D6

NUT 5

15

6680473

BUSHING, MAGNET - A

16

35C410

BOLT 5 fastens thru tab - 5/8'' (15,9 mm)

16

17C428

BOLT fastens thru body - 1-3/4''(44.4mm) - Was 6710539 - A

17

83D4

NUT 10 fastens thru tab

17

50D12

NUT fastens thru body

18

1306637

CLIP

18

1306637

CLIP

19

6571991

GUIDE

19

6571991

GUIDE

20

6702343

BLOCK Was 6563148 - A

21

14J2512

PIN 5

22

6594284

SPRING Was 6702430 - A

23

6704559

LOCK L.H. - W/Ref. 20, 21 - Was 6704557 - A

23

6704558

LOCK R.H. - W/Ref. 20, 21 - Was 6704556 - A

24

17C624

BOLT 5 Was 17C000612B - D

25

6700170

WASHER plastic

26

6559479

NUT

27

17C624

BOLT 5 Was 17C000612B - B

28

8D6

NUT 5 jam

28

8D6

NUT 5

29

6707319

NUT spacer

30

6722392

INSTRUCTIONS For Ref. 28

31

17C608

BOLT

31

17C608

BOLT

32

6664207

GAS SPRING

32

6664207

GAS SPRING

32

6664207

GAS SPRING

32

6664207

GAS SPRING

33

6707717

SEAT BAR for Use W/Gas Spring

33

6707717

SEAT BAR

33

6707717

SEAT BAR

33

6707717

SEAT BAR

33

SEAT BAR NLA - for Use W/Compression Spring - Order 6713886 seat bar & 2 each of Ref. 55, 57, 61 & 62 - Was 6711870 - A

33

6713886

SEAT BAR for Use W/ compression spring

33

6713886

SEAT BAR

34

6665000

CLIP

35

6708595

BRACKET

36

6706962

BUSHING

37

4F5062

PIN

38

25E17

WASHER 5

38

25E17

WASHER 5

38

25E17

WASHER 5

38

25E17

WASHER 5

38

25E17

WASHER 5

38

25E17

WASHER 5

39

85D5

NUT 5

40

6680441

BUSHING keyed - Was 6664882 - A

41

6649244

BALL STUD

42

6577754

DECAL, WARNING 5 gas spring

43

6707134

DECAL instruction for LCS

44

6706890

WASHER

44

6706890

WASHER

45

6701535

SPRING

45

6701535

SPRING

46

25E16

WSHR

47

6664221

RETAINER

48

6710751

BUSHING spacer

49

6706966

SPRING, SEAT plate -

50

17C508

BOLT

51

6594257

BRACKET

51

6594257

BRACKET

51

6594257

BRACKET

51

6594257

BRACKET

52

6680472

SENSOR tapered magnetic - Was 6666608 - A

53

25E10

WASHER

54

6680523

KEY,MAGNETIC magnet bushing - Was 6664881 - A

55

6710659

BUSHING

55

6710659

BUSHING

55

6710659

BUSHING

55

6710659

BUSHING

55

6710659

BUSHING

55

6710659

BUSHING

56

6710660

MOUNT

56

6710660

MOUNT

57

6713887

BOLT Was 6711897 - A

57

6713887

BOLT

58

4F6106

PIN

58

4F6106

PIN

59

2J6208

YOKE

59

2J6208

YOKE

60

KIT NLA - Order Ref. 2 - Was 6713061 - A

61

6713589

CLEVIS

61

6713589

CLEVIS

62

6631418

RING, RETAINING

62

6631418

RING, RETAINING

63

17C712

BOLT

63

17C712

BOLT

64

91D7

NUT

64

91D7

NUT

65

872229

WASHER

66

35C616

BOLT 5

67

35C516

BOLT 10

68

6631418

RING, RETAINING

68

6631418

RING, RETAINING

68

6631418

RING, RETAINING

68

6631418

RING, RETAINING

69

6594298

NUT

70

17C510

BOLT

70

17C510

BOLT

71

17C516

BOLT

71

17C516

BOLT

72

6711729

COVER

73

6711730

STRIP

74

17C512

BOLT 5

74

17C512

BOLT 5

75

37C516

BOLT

75

37C516

BOLT
