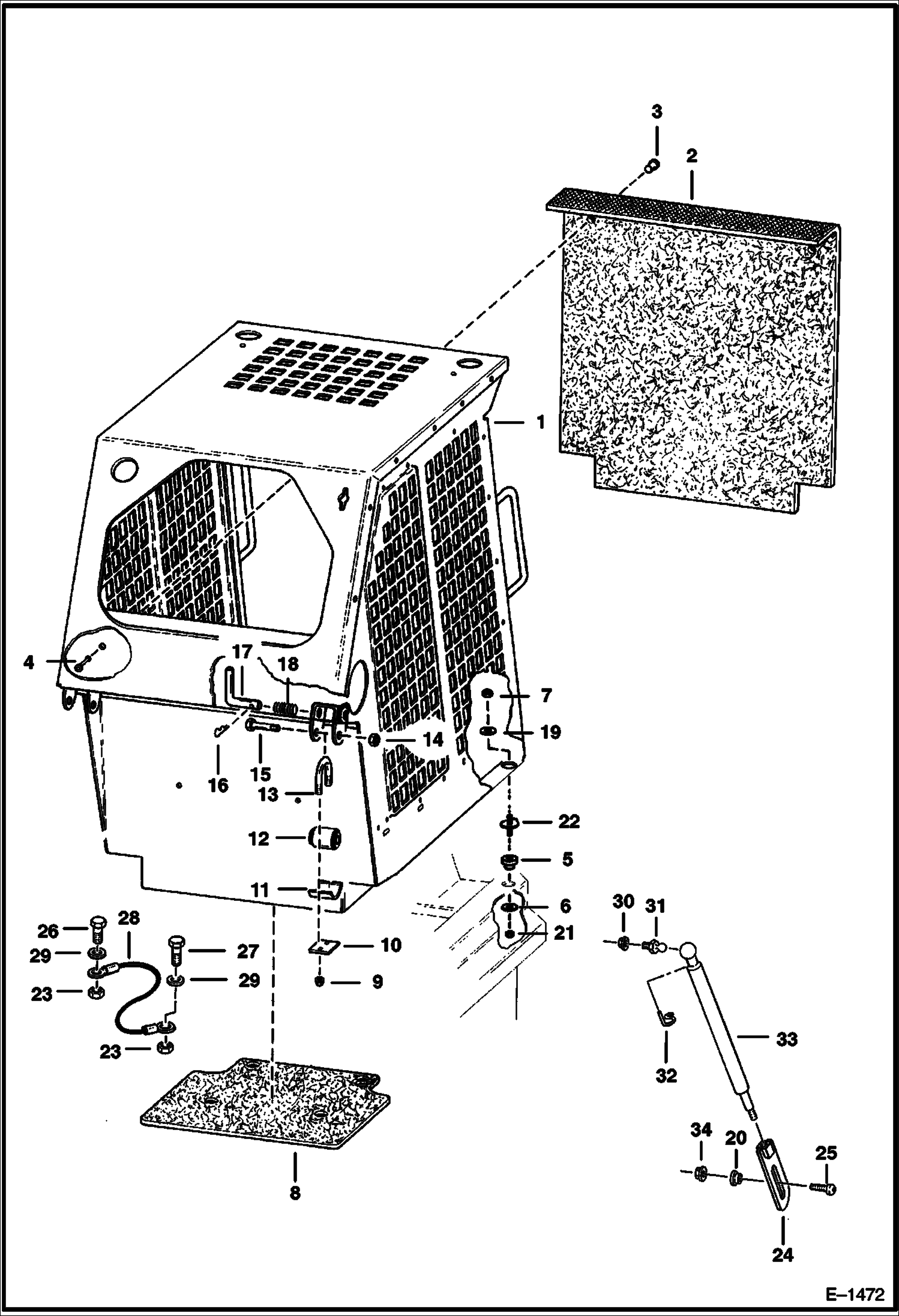

Запчасти Bobcat 400s OPERATOR CAB MAIN FRAME

1

6734641

CAB, ASSY Was 6708601 - A

2

6708486

INSULATION Was 6565199 - A

3

6563156

SLEEVE

4

6630207

RIVET 5

5

6560633

DAMPENER rubber

6

6515817

WASHER

7

59D8

NUT 5

8

6734908

INSULATION Was 6708487 - A

9

83D6

NUT 5

10

6565068

PLATE

11

6563997

RETAINER

12

6562602

BUSHING

13

6563998

U-BOLT

14

85D10

NUT, 5

15

17C1048

BOLT

16

1306637

CLIP

17

6593389

PIN

18

6593390

SPRING

19

6553709

WASHER

20

6706272

BUSHING

21

85D8

NUT, 5

22

6702971

BOLT

23

61D5

NUT

24

6706092

END gas spring

25

25G616

SCREW

26

17C512

BOLT 5

27

84G3112

BOLT 5

28

6594283

WIRE

29

25E15

WASHER

30

83D5

NUT 5

31

6706519

STUD ball

32

6706520

RING retaining

33

6664206

GAS SPRING

34

95D6

NUT Was 91D000006B - A
