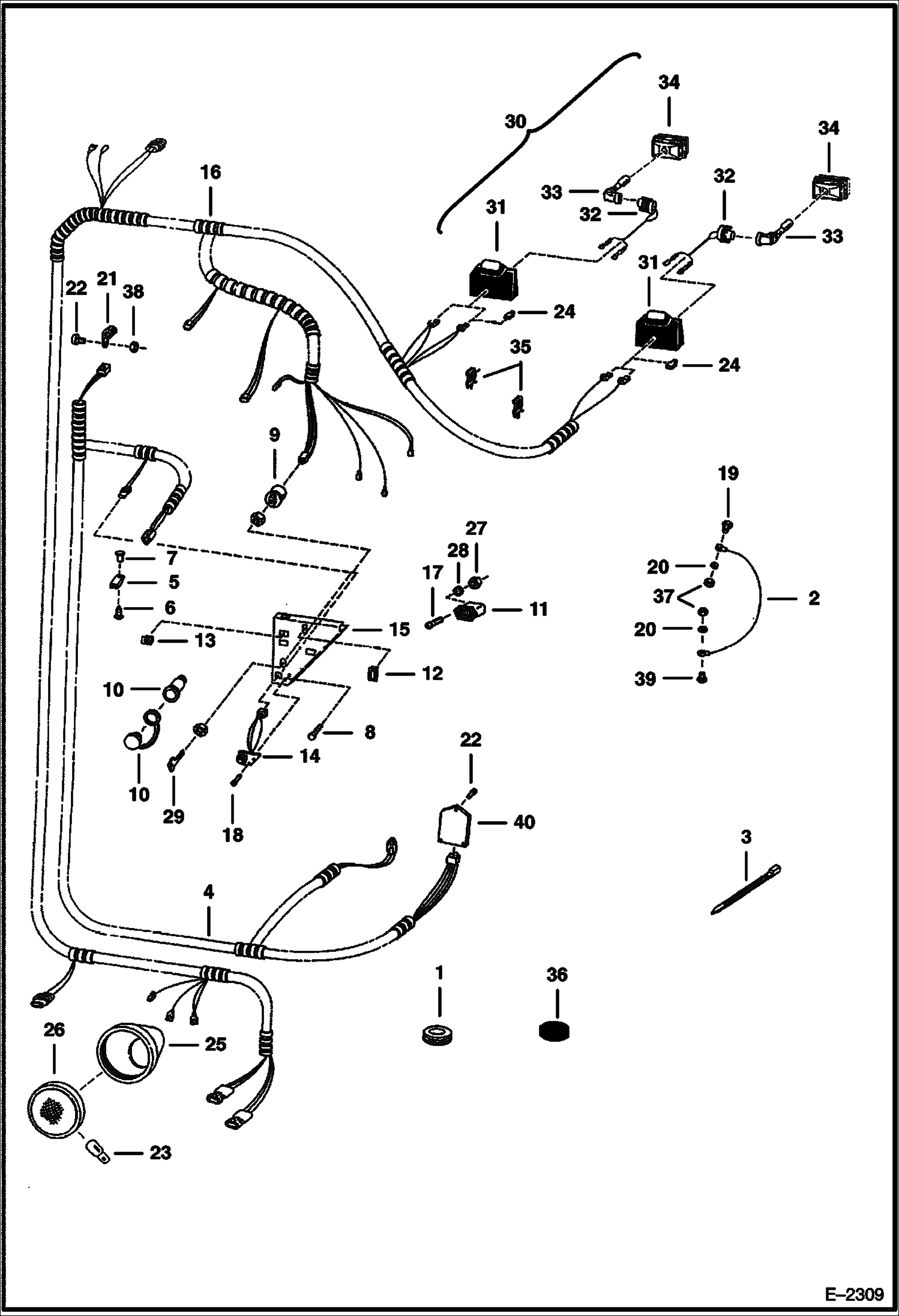

Запчасти Bobcat 400s EUROPEAN ACCESSORIES (Cab Electrical) ACCESSORIES & OPTIONS

1

742876

GROMMET

2

6594283

WIRE

3

6610510

TIE

4

6710422

HARNESS controller

5

6665000

CLIP

6

6665321

RIVET male

7

6665322

RIVET female

8

6702642

SCREW

9

6632052

SWITCH

9

KIT NLA - key, nut & washer - Was 6632056 - A

10

6664223

OUTLET

10

6664224

CAP

11

6664886

HOURMETER

12

6665314

PLUG Was 6719038 - A

13

6665315

SWITCH head light

14

6667905

SWITCH trac override - Was 6706995 - A

15

6708268

PANEL

16

6708825

HARNESS cab

17

65G608

SCREW

18

6669225

BOLT Was 58G000408B - A

19

17C512

BOLT 5

20

25E15

WASHER

21

30H54

CLIP

22

35C410

BOLT 5

23

898731

1156 BULB

24

6519548

CONNECTOR

25

6558142

HOUSING

26

6563740

LAMP

27

12D6

NUT 10

28

12E6

WASHER

29

6505412

KEY

30

6577801

LIGHT assy.

31

6578824

HOUSING

32

6578528

HARNESS

33

6650111

LAMP

34

6649478

BULB HOUSING lamp

35

6630585

CLIP

36

6707674

PLUG round - 1.28''(32.5mm) diam. hole in cab

37

61D5

NUT

38

83D4

NUT 10

39

84G3112

BOLT 5

40

6668767

CONTROLLER Was 6667468 - A
