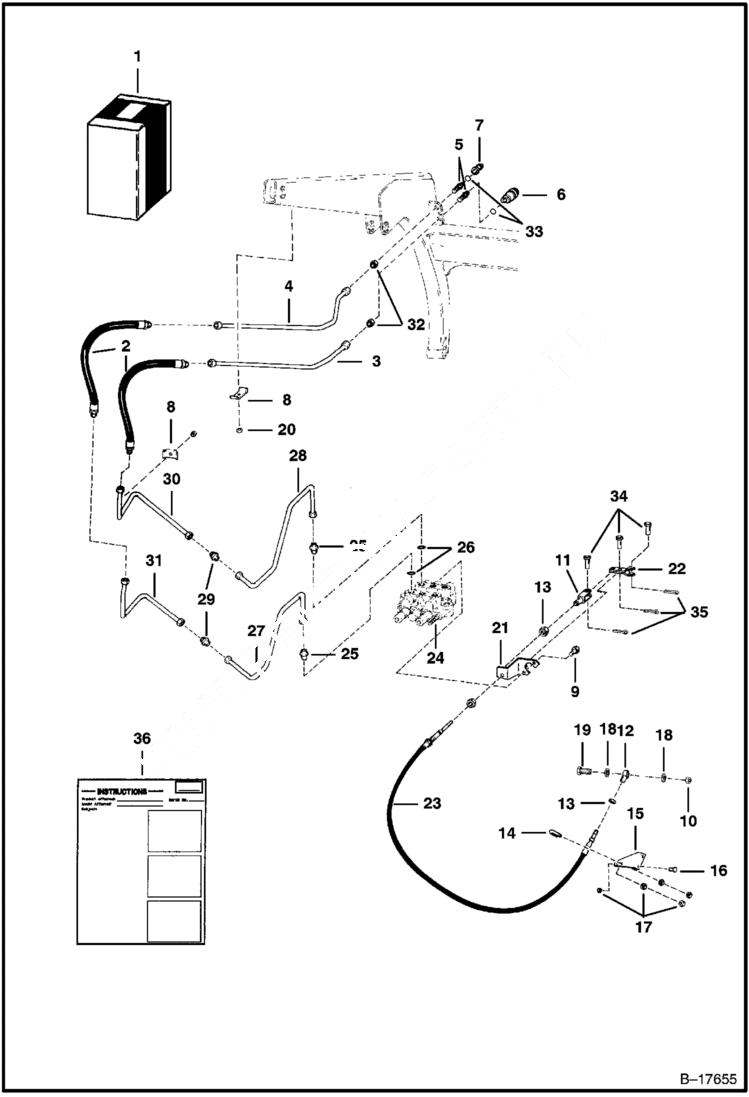

Запчасти Bobcat 400s AUXILIARY HYDRAULIC KIT (For Flush Face Style Couplers) ACCESSORIES & OPTIONS

1

6712173

KIT See Illustration AUXILIARY SPOOL KIT/ TS1457 REF. 2-23,25-36 - MUST ALSO PURCHASE 1-6597448 AUX. SPOOL KIT

2

6728013

HOSE Was 6530855 - B

3

6711637

TUBELINE

4

6711636

TUBELINE

5

45K6

CONNECTR

5

45K6

CONNECTR W/ O-Ring - Was 45KN00006B - A

5

97K8

O-RING Flared end

5

6716378

ADAPTER Use W/Ref. 33

6

6667805

COUPLER, FF FEMALE straight

7

6667806

COUPLER Flush Face

8

6500989

CLAMP

9

73G412

SCREW

10

85D4

NUT 5

11

2J4200

CLEVIS

12

6593671

CONNECTOR

13

8D4

NUT

14

6592766

U-BOLT

15

6564802

MOUNT

16

17C512

BOLT 5

17

85D5

NUT 5

18

25E13

WASHER 5

19

17C416

BOLT

20

95D6

NUT Was 91D000006B - A

21

6729088

GUIDE Was 6711211 - A

22

6707600

ARM

23

6599469

CABLE

24

VALVE See Illustration HYDROSTATIC PUMP/ B17884

25

731794

CONNECTR flat boss face

25

6715184

ADAPTER tapered boss face

26

79K10

O RING 10 flat boss face

26

99K10

O'RING tapered boss face

26

97K8

O-RING flared end

27

6565144

TUBE

28

6707712

TUBE Was 6565145 - A

29

87F6

FITTING flat boss face

29

87F6

FITTING tapered boss face - Was 87FN00006B - A

29

97K8

O-RING flared end

30

6592960

TUBE

31

6592961

TUBE

32

86F6

NUT

33

79K8

O RING 10

33

99K8

O-RING

34

1304227

PIN

35

1F208

PIN

36

6566718

INSTRUCTIONS
