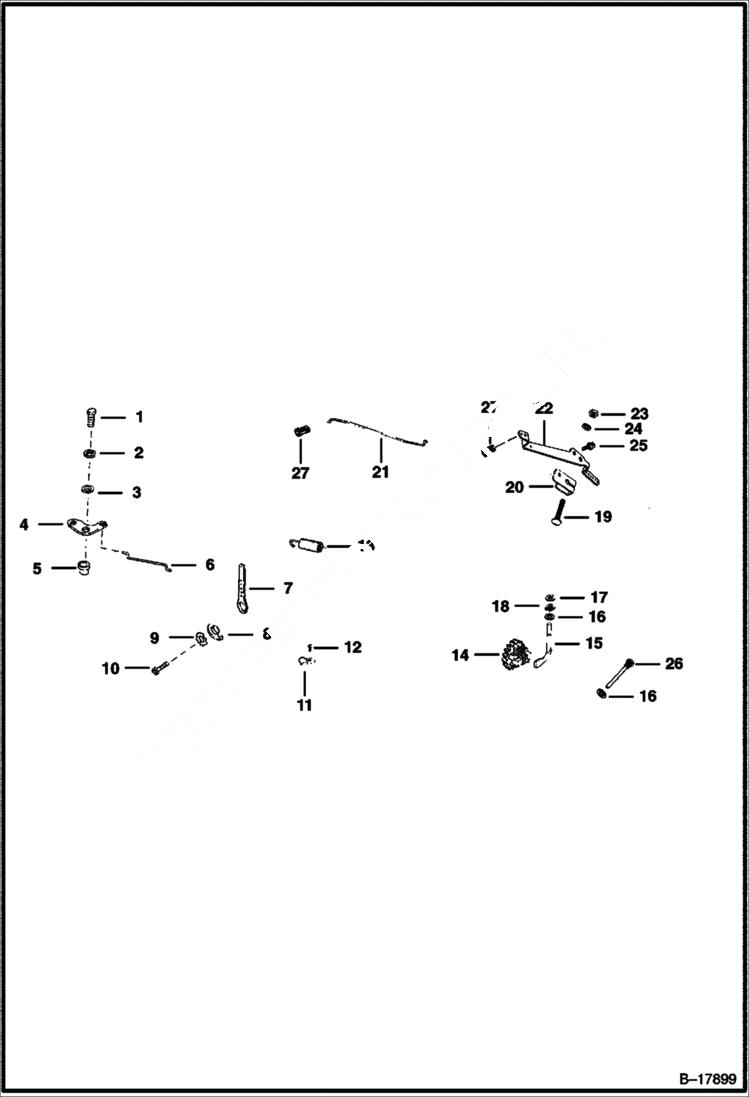

Запчасти Bobcat 400s GOVERNOR POWER UNIT

1

17C412

BOLT 5

2

25E13

WASHER 5

3

6512913

WASHER

4

6564274

BELLCRANK

5

6564273

SPACER

6

6564267

ROD

7

6599860

LEVER

8

6599797

STOP

9

6E4

WASHER 10

10

47G410

SCREW

11

6599798

CLAMP

12

84G1906

SCREW

13

6599848

SPRING

14

6599801

GEAR

15

6632147

SHAFT

16

6632127

WASHER

17

6518949

WASHER

18

6630570

RETAINER

19

6632163

BOLT

20

CLAMP NSS

21

6648910

LINKAGE

22

6648911

ARM

23

61D4

NUT 5

24

6518951

WASHER

25

BOLT NSS

26

6518876

PIN gov. stop

27

6648909

BUSHING
