HEADS, VALVES & CAMSHAFT

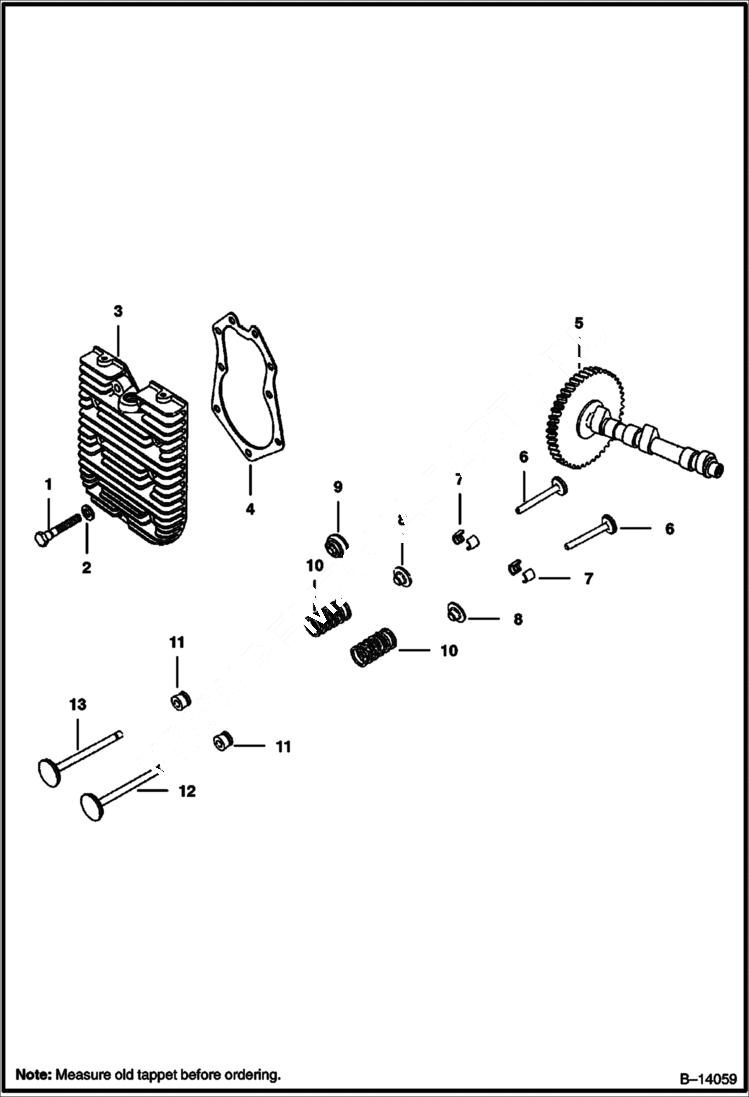

Запчасти Bobcat 400s HEADS, VALVES & CAMSHAFT POWER UNIT

Схема запчастей Bobcat 400s - HEADS, VALVES & CAMSHAFT POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47G524

SCREW Was 6599799 - A

2

6599792

WASHER

3

6632092

HEAD

4

6632093

GASKET

5

6655773

CAMSHAFT

6

6632090

TAPPET 2.830 (71,882 mm) - See Note

7

6518861

KEY RETAINER Pair

8

6512175

RETAINER

9

6632091

ROTATOR

10

6632086

SPRING

11

6632087

SEAL

12

6632089

VALVE intake

13

6655779

VALVE KIT W/Valve & Insert 30 degrees

13

6655774

VALVE exhaust 30 degrees
