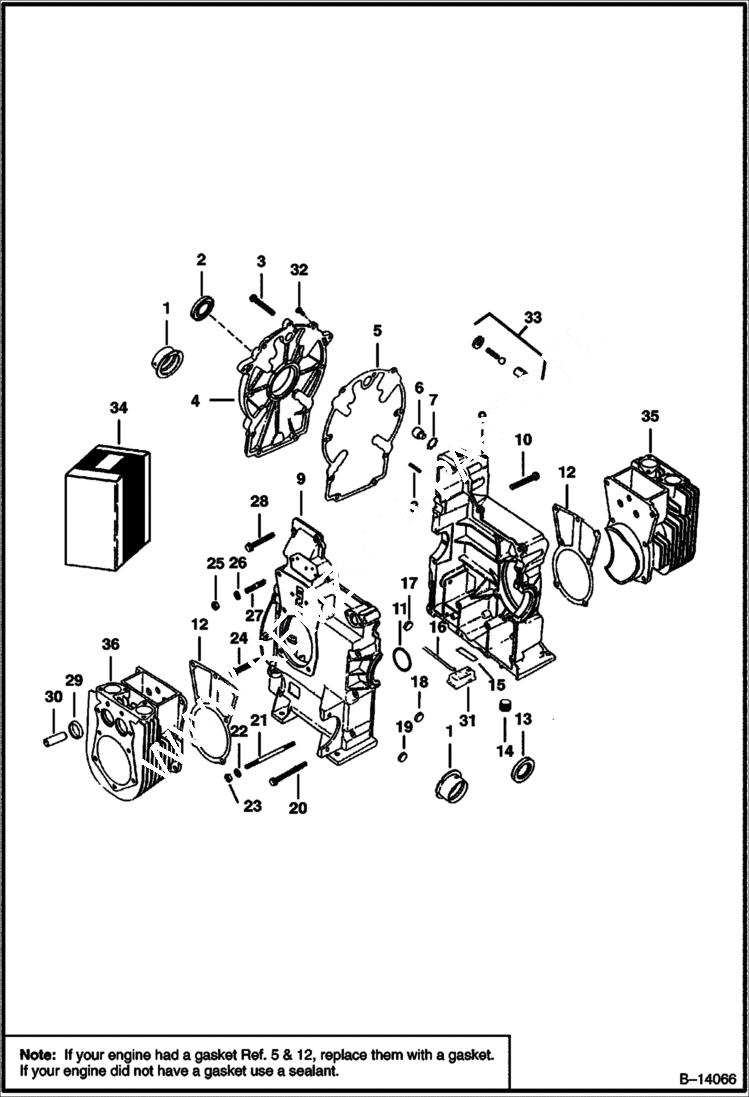

Запчасти Bobcat 400s CRANKCASE POWER UNIT

1

6630561

SLEEVE bearing (Std)

1

6630562

SLEEVE bearing (.010)

1

6630563

SLEEVE bearing (.020)

2

6599787

OIL SEAL rear

3

35C516

BOLT 10

4

6630930

PLATE

5

6632137

GASKET If your engine had a gasket, replace them with a gasket. If your engine did not have a gasket use a sealant.

6

6599847

SHAFT governor

7

6599782

SNAP RING

8

646102

PIN

9

CRANKCASE NLA

10

SCREW NLA - Was 47G000532B - A

11

79K6

O RING 10 Use W/Ref. 17

12

6599826

GASKET If your engine had a gasket, replace them with a gasket. If your engine did not have a gasket use a sealant.

13

6599824

OIL SEAL front

14

16F2

PLUG oil drain

15

6599876

SPRING CLIP

16

TUBE NLA - oil pickup - Included with Ref. 31 - Was 6599863 - D

17

6632158

PLUG camshaft

18

6599789

PLUG

19

PLUG NLA - Was 6599788 - A

20

6599791

BOLT

21

STUD NLA - Order Ref. 20 - Was 6599784 - A

22

6599800

WASHER

23

61D5

NUT

24

17C660

BOLT

25

61D6

NUT 5

26

23E6

WASHER

27

6599840

STUD

28

47G524

SCREW

29

6655775

INSERT 30 degrees

30

6599879

VALVE GUIDE

31

6599849

SCREEN, OIL ENG W/Ref. 16

32

PLUG NLA - Was 41K000001B - A

33

6632525

KIT oil relief

34

BARREL KIT See BTI255 NLA - Order Ref. 35 & 36

35

6655776

BARREL See BTI255 See Service Manual

36

6655777

BARREL See BTI255 See Service Manual
