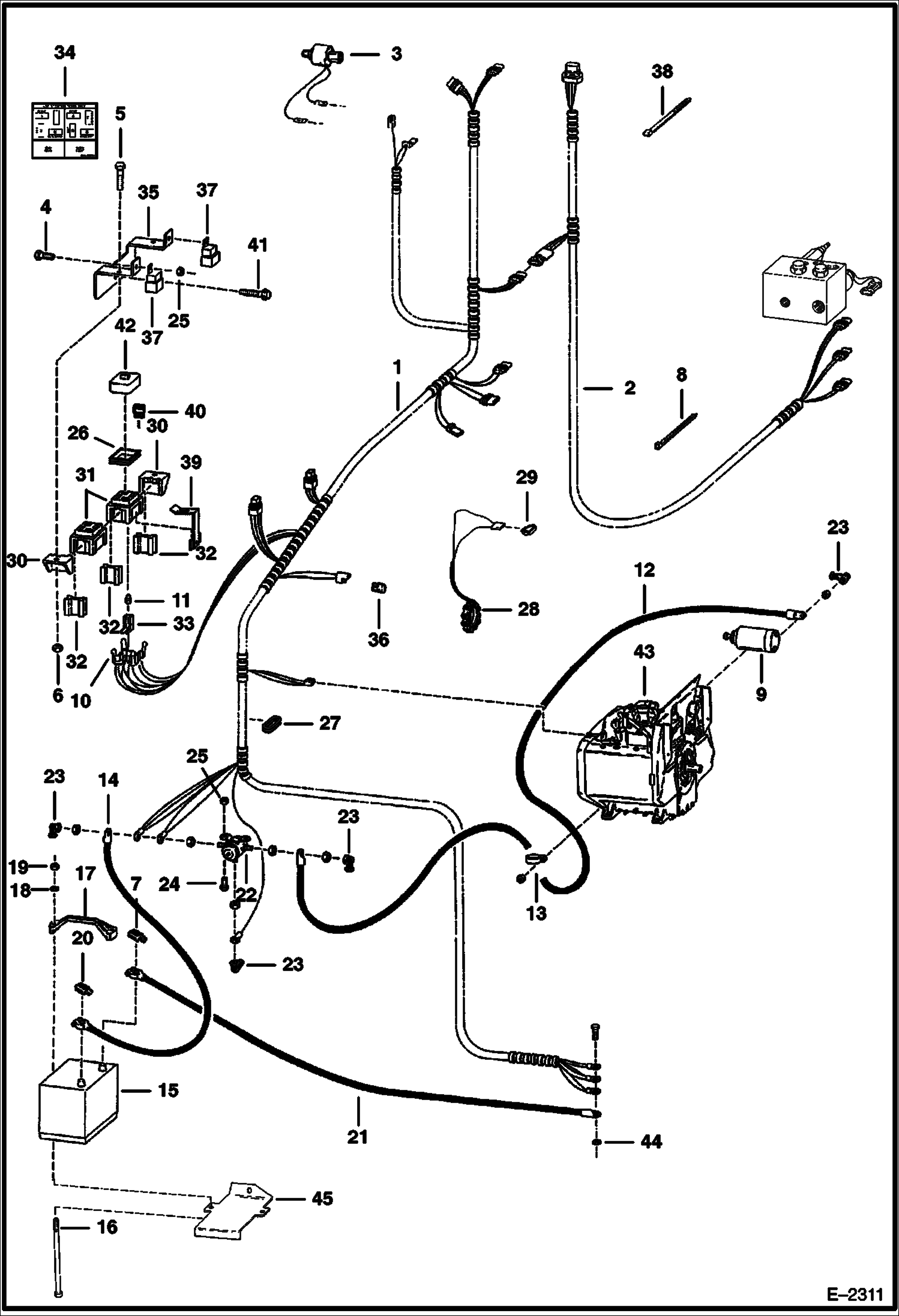

Запчасти Bobcat 400s ENGINE ELECTRICAL ELECTRICAL SYSTEM

1

HARNESS NLA - Order 1-6709893 Harness & 1-6709734 Decal - Was 6708224 - A

1

6709893

HARNESS

2

6707497

HARNESS controller

2

6710423

HARNESS controller

3

6565369

SOLENOID fuel

4

17C410

BOLT 10

5

45G1212

BOLT

6

50D12

NUT

7

6599652

BOOT negetive

8

6665527

TIE never modify

9

STARTER See Illustration STARTER/ B17885

10

6665357

LOCK yellow

11

6650107

SEAL wire

12

6564306

CABLE

13

31H17

CLAMP

14

6714448

CABLE battery - Was 6564307 - A

15

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

15

6630154

CAP gang - Danger

15

6630155

CAP gang - Poison

15

CAP NLA - Tilt Tite - Was 6514898 - A

16

6569623

BOLT

17

6569203

CLAMP

18

25E15

WASHER

19

59D5

NUT 5

20

2356058

BOOT

21

6564403

CABLE battery - W/Ref. 7

22

6659319

SOLENOID

23

6560172

COVER

24

17C408

BOLT

25

85D4

NUT 5

26

6671528

SEAL green square

27

6504108

GROMMET

28

STATOR See Illustration IGNITION/ B14061

29

REGULATOR See Illustration IGNITION/ B14061

30

6665909

MOUNT

31

6665356

BLOCK fuse

32

6665411

WEDGE red

33

PIN NLA - female - Order 6668719 Pin for 16 Ga. wire - Order 6668720 Pin for 14 Ga. wire

34

6709733

DECAL fuse/relay - When repl. 6708727 also order a 20 amp. fuse for the engine, early loaders had a 15 amp. fuse - Was 6708727 - A

34

6709734

DECAL fuse/relay

35

6708281

MOUNT fuse/relay

36

6567537

DIODE

37

6670312

SWITCH, MAGNETIC relay - Was 6665005 - A

38

6610510

TIE

39

6708437

CLIP clip for fuse cap

40

6707620

FUSE, 10A MINI 5

40

6707621

FUSE, 15A MINI 5

40

6707622

FUSE, 20A MINI 5 20 amp.

40

6707623

FUSE, 25A MINI 5

40

6674099

BREAKER, 25A

41

84G3712

BOLT 5

42

6665358

COVER , FUSE fuse block

43

ENGINE See Illustration ENGINE/ B17898

44

6E6

WASHER

45

6715086

PAN battery - Was 6715080 - A
