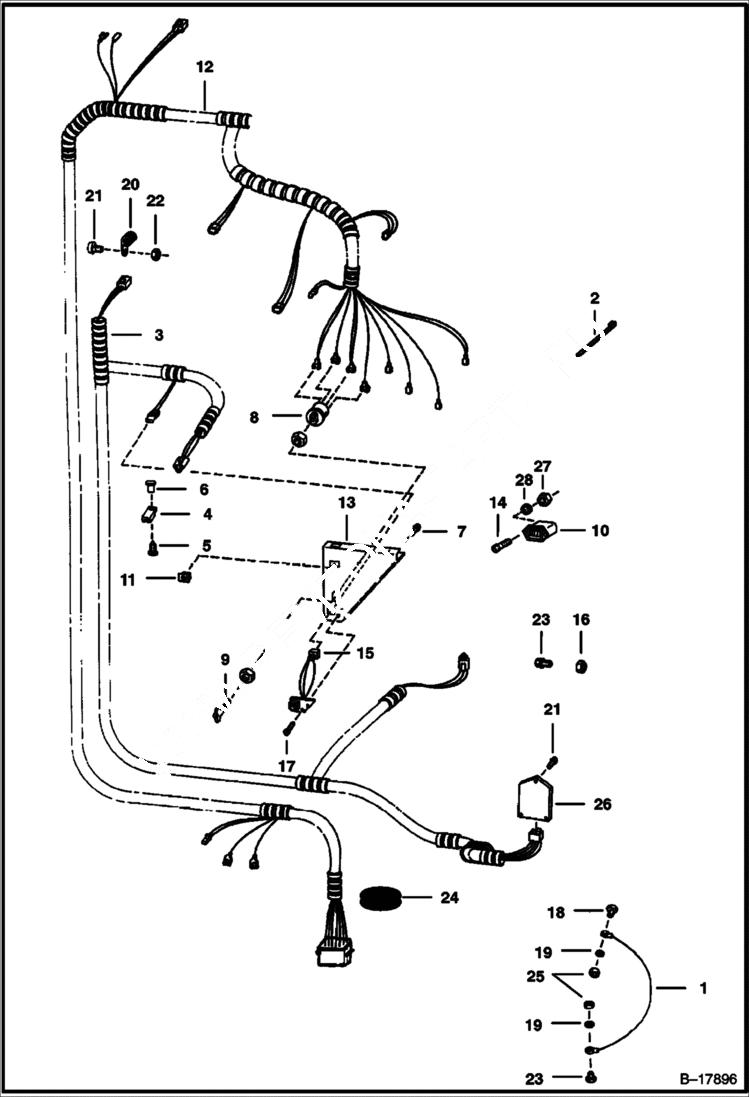

Запчасти Bobcat 400s CAB ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6594283

WIRE

2

6610510

TIE

3

6707495

HARNESS controller - W/Rectangular 8 pin connector, connecting to the engine harness

3

6710422

HARNESS controller - W/Round 7 pin connector, connecting to the engine harness

4

6665000

CLIP

5

6665321

RIVET

6

6665322

RIVET

7

6702642

SCREW

8

6632052

SWITCH ignition

8

KIT NLA - key, nut & washer - Was 6632056 - A

9

6505412

KEY

10

6664886

HOURMETER

11

6665314

PLUG Was 6719038 - A

12

6708235

HARNESS cab

13

6708268

PANEL instrument

14

65G608

SCREW

15

6667905

SWITCH trac override - Was 6706995 - A

15

6673005

SWITCH traction/seat sensor override

16

12D4

NUT

17

6669225

BOLT Was 58G000408B - A

18

17C512

BOLT 5

19

25E15

WASHER

20

30H54

CLIP

21

17C410

BOLT 10 Was 35C000410B - B

22

83D4

NUT 10

23

84G3112

BOLT 5

24

742876

GROMMET

25

61D5

NUT

26

CONTROLLER See Illustration SEAT SENSOR OVERRIDE/ B15147 NLA - ORDER KIT 6716457

26

6680411

CONTROLLER Use in Kit 6717699 - Was 6674222 - A

27

12D6

NUT 10

28

12E6

WASHER
