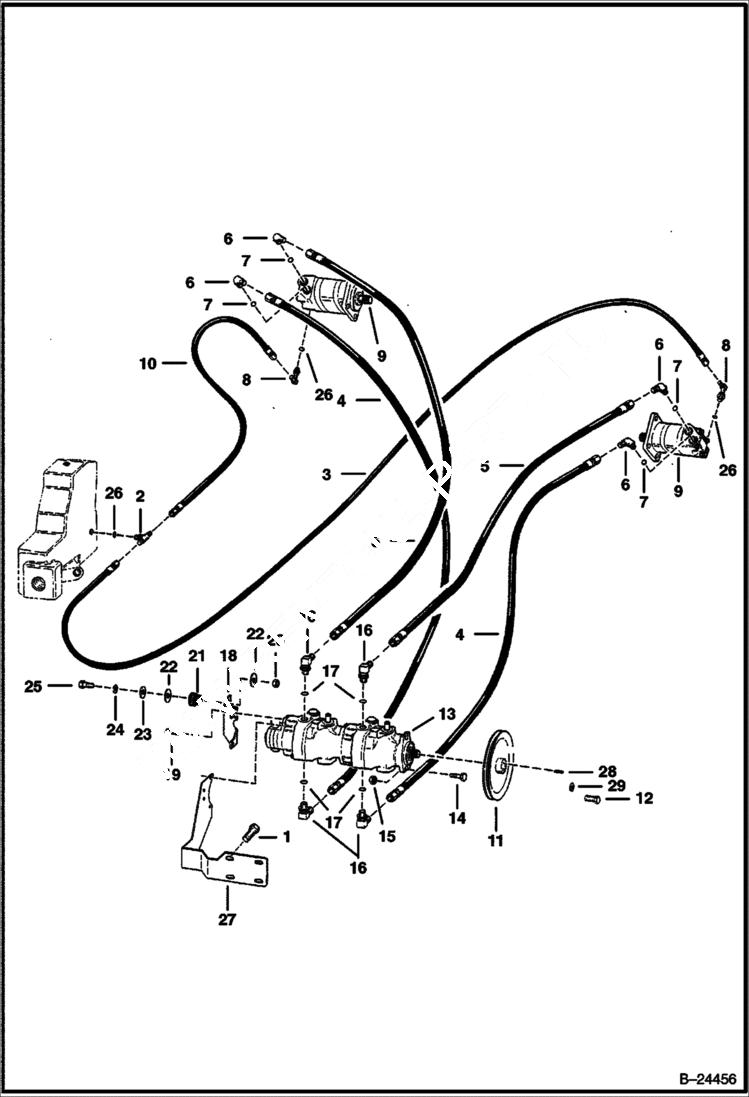

Запчасти Bobcat 400s HYDROSTATIC CIRCUITRY HYDROSTATIC SYSTEM

1

6708543

TANK Was 6564006 - A

2

19K3

FITTING

3

6530858

HOSE

4

6530861

HOSE

5

6530860

HOSE

6

18K7

FITTING W/Ref. 7

7

79K10

O RING 10

8

6564153

ELBOW Use with 6530862 Hose

8

17K3

ELBOW W/Ref. 26

9

MOTOR See Illustration HYDROSTATIC MOTOR/ D1635

10

6529344

HOSE 14'' (355,6 mm)

11

6531174

PULLEY

12

18C616

BOLT 5 Was 17C000616B - B

13

PUMP See Illustration HYDROSTATIC PUMP/ B17883

14

17C624

BOLT 5

15

57D6

NUT 5

16

ELBOW NLA - W/Ref. 17 - flat boss face - Was 17KB001012B - A

16

6715651

ELBOW W/Ref. 17 - tapered boss face

16

97K10

O-RING 10 flared end

17

79K12

O RING 10 flat boss end - Was 79K000016B - D

17

99K12

O RING tapered boss end

18

6564055

MOUNT

18

7172914

BRACKET, PUMP GEAR Use W/ 7003484 pump

19

17C628

BOLT

20

85D8

NUT, 5

21

6560633

DAMPENER

22

6564692

WASHER

23

6565472

WASHER .062'' (1,5748 mm) thick

23

6515817

WASHER Use W/ 7003484 pump - .1793'' (4,554 mm) thick

24

25E21

WASHER 5

25

17C844

BOLT

26

79K4

O RING 10

27

6624289

STRAP, TIE

28

616783

WASHER

29

6598880

KEY
