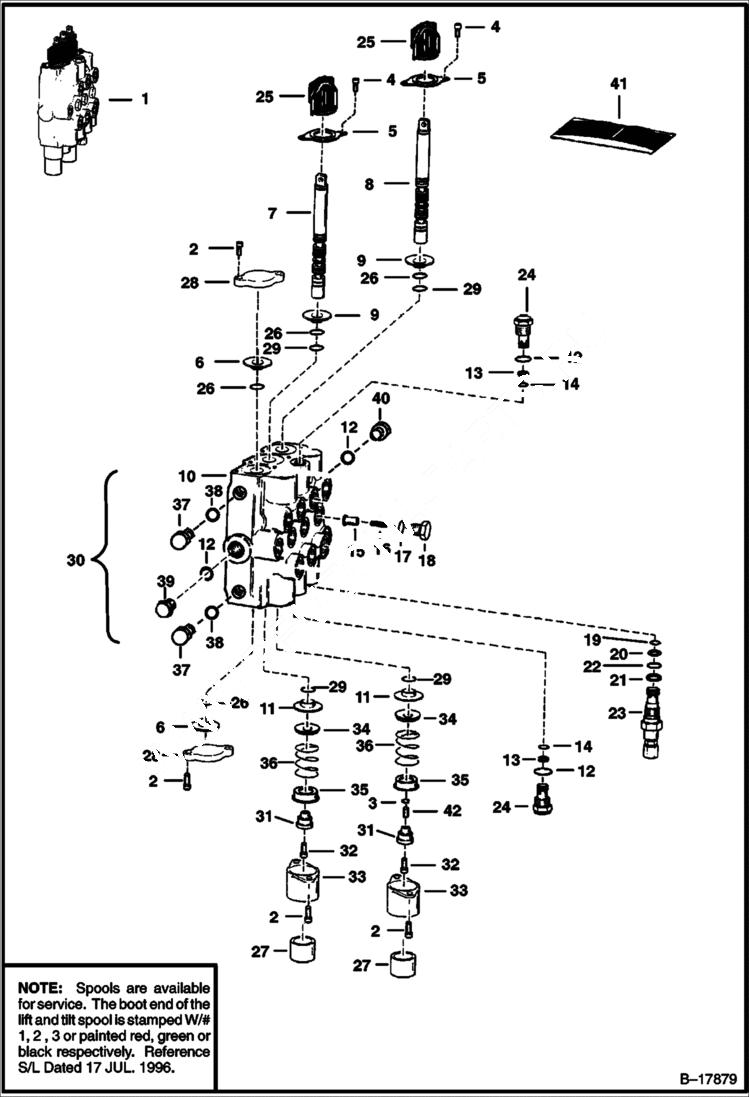

Запчасти Bobcat 400s HYDRAULIC VALVE HYDRAULIC SYSTEM

1

VALVE See Illustration HYDRAULIC VALVE/ E1518 See BTI347 NLA - Ref. 2 - 40 - Was 6596190 - A

2

29G416

BOLT Was 6588982 - B

3

54K20002

O'RING 10

4

29G412

BOLT Was 6588163 - B

5

6589564

RETAINER

6

6593359

BUSHING

7

6666591

SPOOL tilt - #1 or Red - SEE NOTE

7

6666592

SPOOL tilt - #2 or Green - SEE NOTE

7

6666593

SPOOL tilt - #3 or Black - SEE NOTE

8

6666588

SPOOL lift - #1 or Red - SEE NOTE

8

6666589

SPOOL lift - #2 or Green - SEE NOTE

8

6666590

SPOOL lift - #3 or Black - SEE NOTE

9

6589565

BUSHING

10

BODY NSS

11

6595663

BUSHING Seal Backup

12

79K10

O RING 10 flat boss face

12

99K10

O'RING tapered boss face

13

80K14

BACK-UP WASHER Was 73K000014B - B

14

58K014

O-RING 10 back-up washer required

14

6677106

O-RING Back-up Washer not required

15

6592115

SEAT

16

6592117

SPRING, LOAD CHECK

17

79K8

O RING 10

18

6592116

NUT load check

19

O-RING NSS

20

WASHER NSS

21

O-RING NSS

22

WASHER NSS

23

6676195

VALVE main relief - W/Ref. 19-22 - Was 6598959 - A

24

6592720

PLUG W/Ref. 12-14

25

6587763

BOOT

26

1K127

O-RING 10 Was 93K127 - A

27

6662848

CAP

28

6595569

END CAP

29

6683274

SEAL, SPOOL 10 See BTI374 - spool - Was 6665846 - A

30

SHORT BLOCK NLA - Order Ref. 1

31

6592109

ADAPTER

32

6588166

SCREW Was 30G000418B - D

33

7101345

BONNET, DETENT HYD VALVE Was 6587633 - A

34

7211397

WASHER, SPRING Was 6587523 - A

35

6592100

COLLAR

36

6587580

SPRING

37

6816855

PLUG Was 6534973 - A

38

79K7

O RING 10

39

90K7

PLUG Was 90KV00007B - A

40

24K8

PLUG W/Ref. 12 - flat boss face

40

90K8

PLUG tapered boss face - W/Ref. 12 - Was 90KV00008B - A

41

6816250

KIT, SEAL spool - Was 6803605 - A

41

6659574

SEAL KIT main relief - Ref. 19-22 - Was 6661328 - B

41

6809425

SEAL KIT upper deck - Ref. 12-14 and 17 - Was 6586461 - A

41

6816251

KIT, SEAL See BTI374 - Ref. 3, 4, 12-14, 17, 19-22, 25, 26, 29 & 42 - Was 6816717 - A

42

6596807

PLUG plastic - 0.46'' long
