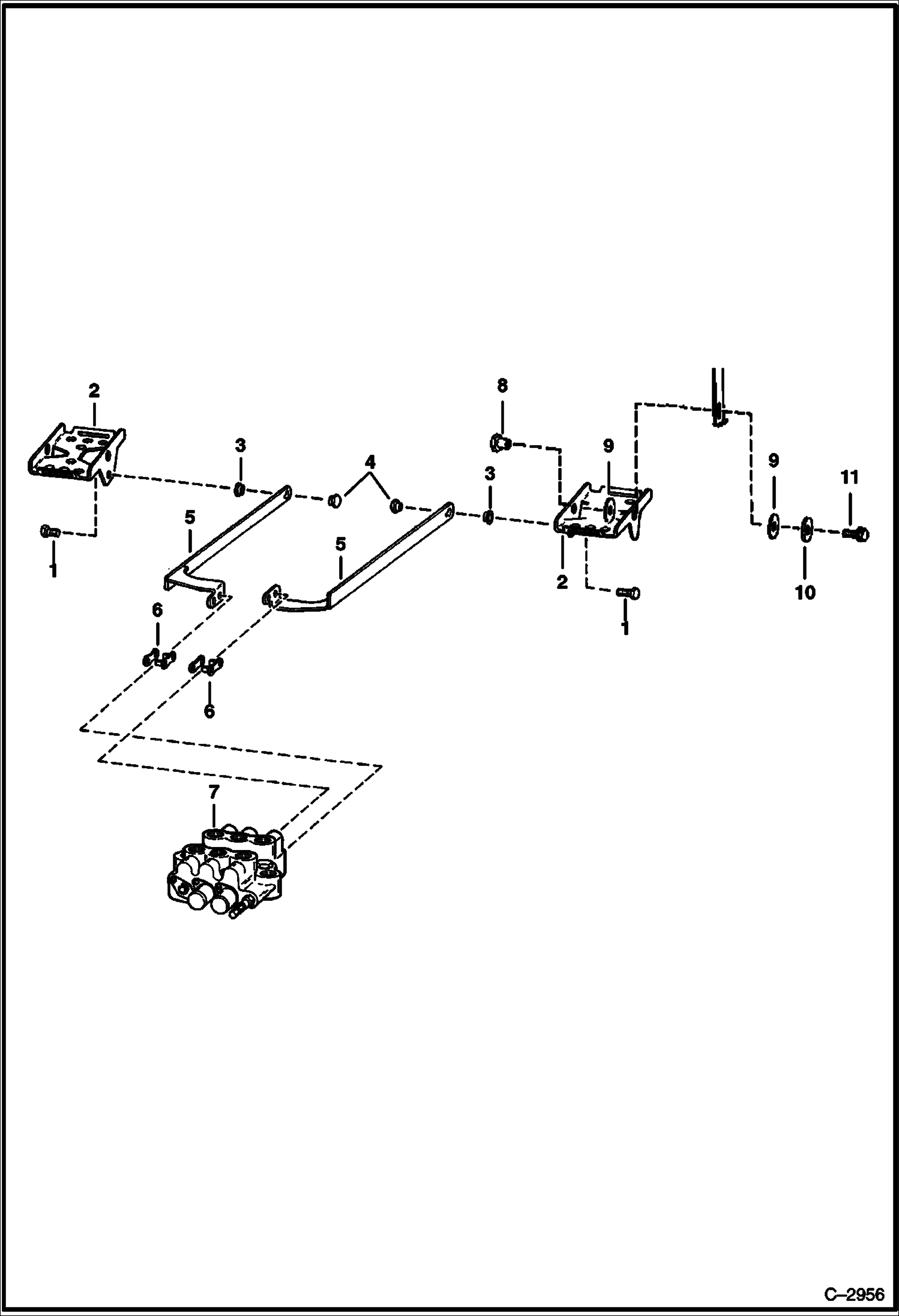

Запчасти Bobcat 400s CONTROL PEDALS HYDRAULIC SYSTEM

1

17C610

BOLT

2

PEDAL NLA - Order 6707056 and 6707053 - Was 6594297 - B

2

6707056

PEDAL Order 6707053

3

6598906

BUSHING nylon

4

6559479

NUT

5

6594296

BAR Straight pedal end

5

6707053

BAR Offset pedal end

6

6515186

CONNECTOR connector

7

VALVE See Illustration HYDRAULIC VALVE/ B17879

8

6594298

NUT retaining

9

6700170

WASHER nylon - Was 6563152 - A

10

872229

WASHER

11

35C616

BOLT 5
