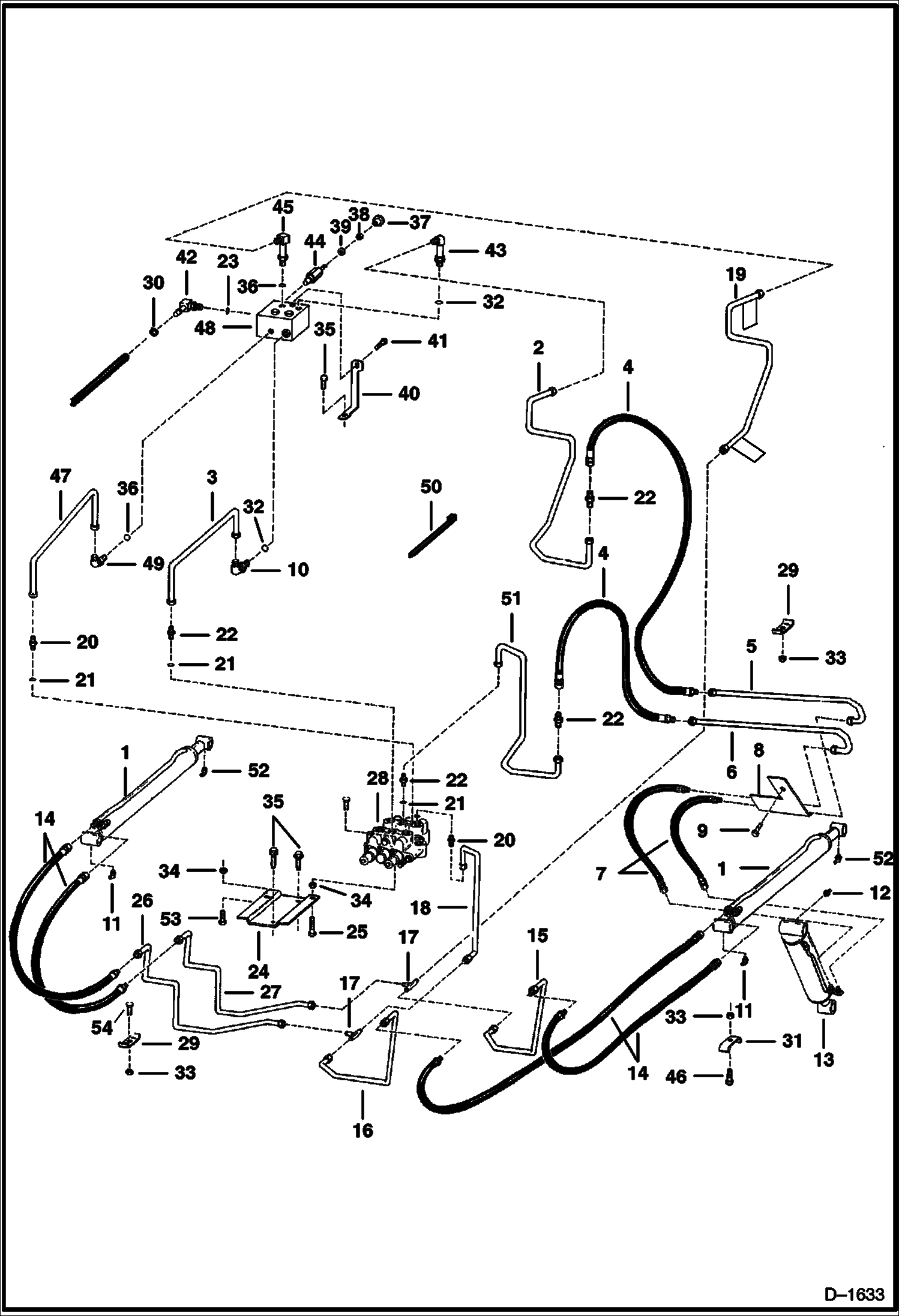

Запчасти Bobcat 400s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B6942 LIFT

2

6706867

TUBELINE

3

6706868

TUBELINE

4

6708501

HOSE

5

6706073

TUBELINE

6

6706072

TUBELINE

7

6706074

HOSE

8

6553422

COVER

9

84G3720

BOLT

10

17K6

ELBOW

11

11H15

GREASE FITTING

12

10H25

FITTING, GREASE 5

13

CYLINDER See Illustration TILT CYLINDER/ C2808 TILT

14

6530859

HOSE

15

6564107

TUBELINE

16

6564108

TUBELINE

17

10K5

TEE

18

6564111

TUBELINE

19

6730284

TUBELINE available only as an assembly W/two danger decals installed - Was 6706865 - A

19

6809511

DECAL, DANGER

20

731795

CONNECTR W/Ref. 21

21

79K10

O RING 10 Flat boss face

21

99K10

O'RING Tapered boss face

22

731794

CONNECTR W/Ref. 21 - flat boss face

22

6715184

ADAPTER W/Ref. 21 - tapered boss face

22

97K8

O-RING Flared end

23

79K5

O RING 10 flat boss face

23

99K5

O-RING tapered boss face

24

6707412

MOUNT

25

17C540

BOLT

26

6564110

TUBELINE

27

6564109

TUBELINE

28

VALVE See Illustration HYDRAULIC VALVE/ B17879

29

6500989

CLAMP

30

42HS04

CLAMP, HOSE Was 6515575 - A

31

6502203

CLAMP

32

79K8

O RING 10

33

95D6

NUT Was 91D000006B - A

34

91D5

NUT 5

35

84G3716

SCREW 5

36

79K6

O RING 10 flat boss face

36

99K6

O RING tapered boss face

37

KNOB NLA - red round - Order 6737524 knob - Was 6664858 - A

37

6737524

KNOB red square - Was 6668913 - A

38

7D4

NUT

39

6707101

SEAL

40

6707413

BRACKET

41

17C612

BOLT 5

42

ELBOW NLA - W/Ref.23 - flat boss face - Was 6657083 - A

42

6715183

ELBOW W/Ref. 23 - check boss face to determine correct replacement O-ring

43

6812820

ELBOW Was 6511914 - A

44

6665490

VALVE

45

6558510

ELBOW W/ Ref. 36 - flat boss face

45

ELBOW NLA - W/ Ref. 36 - tapered boss face - Was 6715188 - A

45

97K6

O RING flared end

45

6812815

FITTING W/ Ref. 36 - Flat boss face

46

17C624

BOLT 5

47

6706866

TUBELINE

48

BLOCK See Illustration BICS BLOCK/ C3430

49

17K5

ELBOW

50

6624289

STRAP, TIE

51

6711974

TUBELINE Was 6707330 - A

52

12H15

FITTING, GREASE 5

53

17C528

BOLT

54

37C624

BOLT Was 7C624 - A
