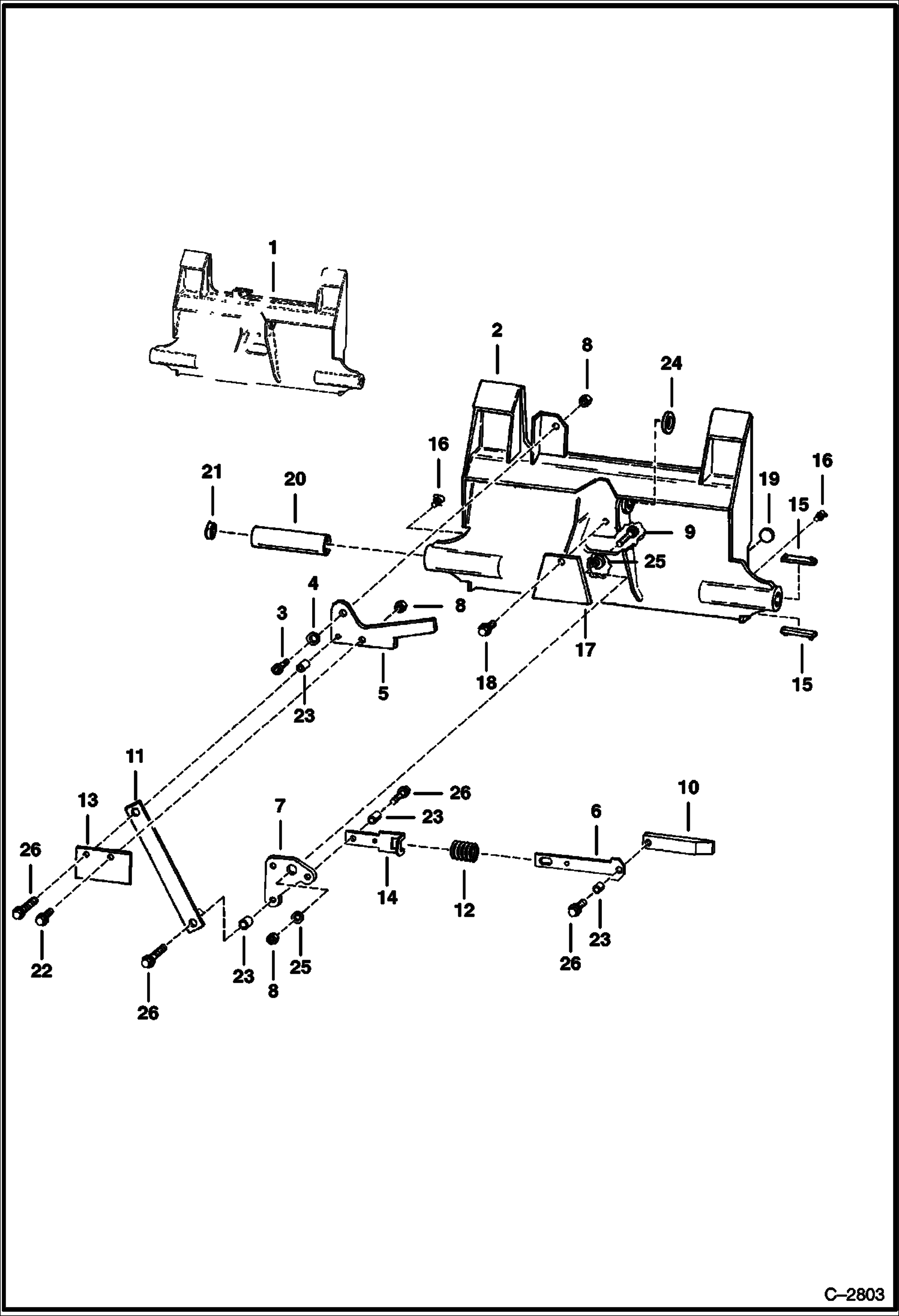

Запчасти Bobcat 400s BOB-TACH MAIN FRAME

1

6529478

BOB-TACH See Illustration DECALS/ B17907 Also Order 6565367 Decal - Was SALES - A

2

FRAME NLA

3

38C810

BOLT

4

25E21

WASHER 5

5

6529720

LEVER

6

6529716

LINK wedge

7

6531832

BELLCRANK

8

85D6

NUT, 5

9

17C632

BOLT 5

10

6563909

WEDGE

11

6531833

LINK 11.20'' (284 mm)

12

6565156

SPRING

13

6529721

SEAL

14

6529718

RETAINER spring

15

6562026

INSERT

16

12H15

FITTING, GREASE 5

17

6565192

COVER

18

84G3712

BOLT 5

19

215842

PLUG

20

6565160

BUSHING weld on

21

1990599

WIPER

22

35C616

BOLT 5

23

6636022

SPACER

24

6563830

BUSHING weld on

25

25E18

WASHER

26

35C612

BOLT
