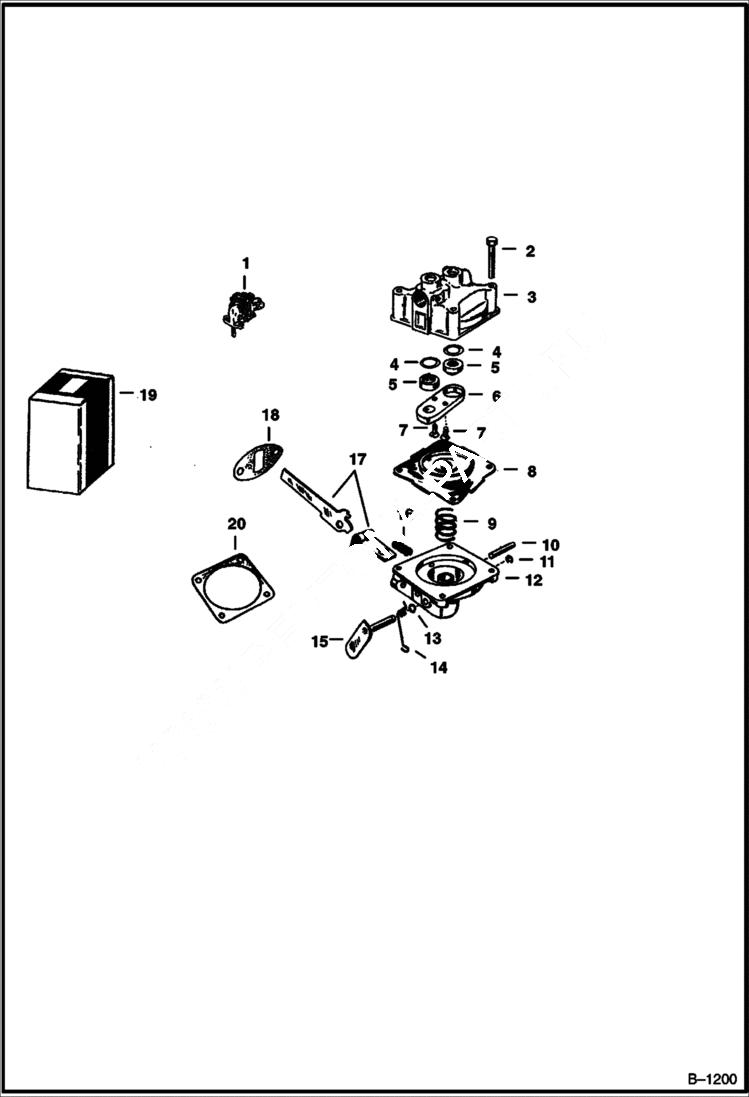

Запчасти Bobcat 400s FUEL PUMP POWER UNIT

1

6517269

FUEL PUMP W/Ref. 2 - 17

2

BOLT NLA

3

BODY NLA - upper

4

GASKET NSS

5

VALVE NSS

6

RETAINER NSS - valve

7

SCREW NSS - flat head

8

DIAPHRAGM NSS

9

SPRING NSS

10

PIN NLA

11

SNAP RING NLA

12

BODY NLA - lower

13

O-RING NLA

14

SPRING NLA

15

LEVER NLA

16

SPRING NSS - Rocker arm

17

ARM NLA

18

GASKET NLA - fuel pump mounting - Was 858770B - B

19

6517645

REPAIR KIT W/Ref. 4 - 9, 16 & 20

20

GASKET NSS - diaphragm - Pull Rod Side
