ALTERNATOR ASSEMBLY Kohler

Запчасти Bobcat 400s ALTERNATOR ASSEMBLY Kohler ELECTRICAL SYSTEM

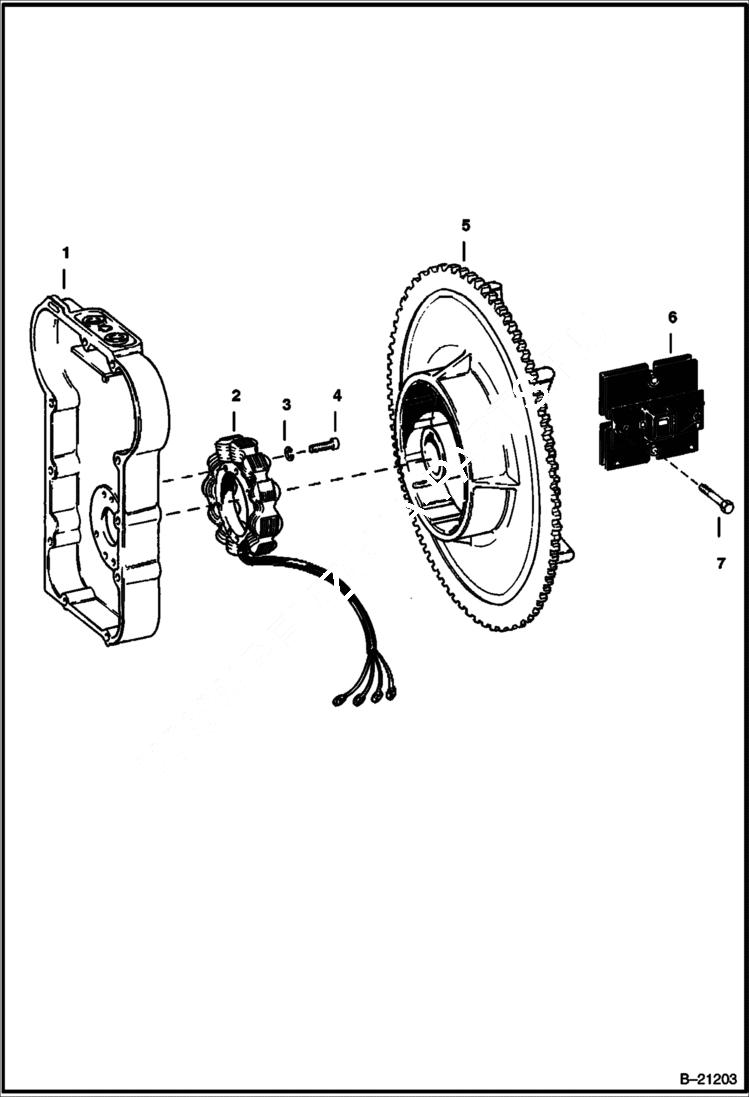

Схема запчастей Bobcat 400s - ALTERNATOR ASSEMBLY Kohler ELECTRICAL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

COVER NLA - gear - Was 6517163 - A

1

PLATE NLA - blower support - Was 6517117 - A

2

6516694

STATOR ASSY.

3

4E4

WASHER Was 4E000003B - D

4

85G1016

SCREW

5

FLYWHEEL NLA - Was 6517192 - A

6

6516693

REGULATOR See BTI362 W/Rectifier

7

17C424

BOLT
