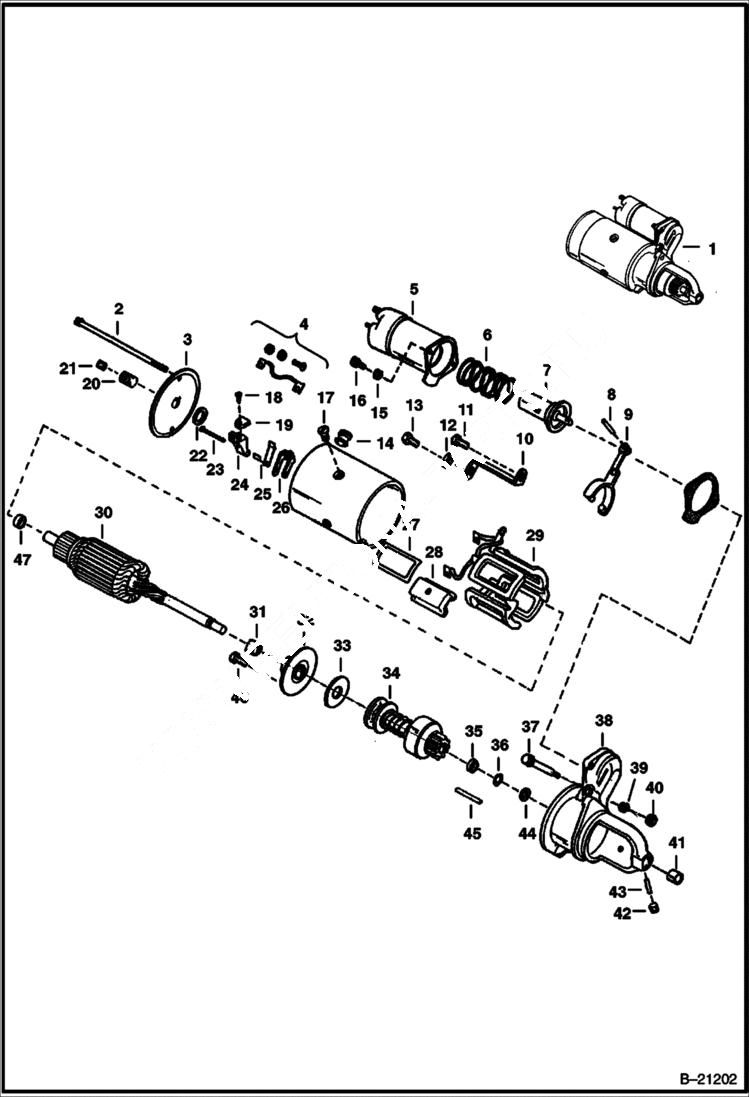

Запчасти Bobcat 400s STARTER Delco - 1109433 or 1108336 Kohler Engine Spec. 3966 & Above ELECTRICAL SYSTEM

1

STARTER ASSY. NLA - Ref. 2, 3, 5-13, 16-23 & 26-45 - Was 6515796 - A

1

STARTER NLA - reman. - Was 6515796 REM - A

2

6515797

BOLT thru

3

FRAME NLA - W/Ref. 47 - Was 999460B - A

4

877650

SUPPORT Brush Support Pkg.

5

884581

SWITCH

6

SPRING NSS

7

PLUNGER NSS

8

PIN NLA

9

896126

LEVER shift

10

CONNECTOR NLA

11

BOLT NLA

12

15E10

WASHER

13

SCREW NLA

14

GROMMET NLA

15

4E4

WASHER

16

SCREW NLA - Was 43G000408B - A

17

SCREW NLA

18

SCREW NSS

19

BRUSHES NLA - Qty. 4 of Ref. 18, 19 & 25 - Was 1810250B - A

20

WICK NLA

21

PLUG NLA - wick - Was 12F000012B - A

22

WASHER NLA

23

PIN NLA

24

6656398

HOLDER brush - Was 891252B - A

25

SPRING NLA - Was 871517B - A

26

880603

HOLDER brush

27

INSULATOR NLA

28

POLE SHOE NLA

29

6515799

COIL field assy. - 4 Coils

30

6515800

ARMATURE

31

BUSHING NLA - thrust plate - Was 871525B - A

32

6630411

PLATE center bearing - W/Ref. 35 - Was 871524 - A

33

WASHER NLA - thrust plate - Was 871610B - A

34

DRIVE ASSY. NLA - Was 6598232 - A

35

COLLAR NLA

36

RETAINER NLA

37

SCREW NLA

38

HOUSING NLA - drive - W/Ref. 45 - Was 6515803 - A

39

4E5

WASHER

40

NUT NLA

41

860669

BUSHING drive end

42

16F2

PLUG wick

43

WICK NLA

44

COLLAR NLA

45

DOWEL PIN NLA

45

DOWEL PIN NLA

46

SCREW plate NLA - plate - Was 86G001006B - A

47

874935

BUSHING
