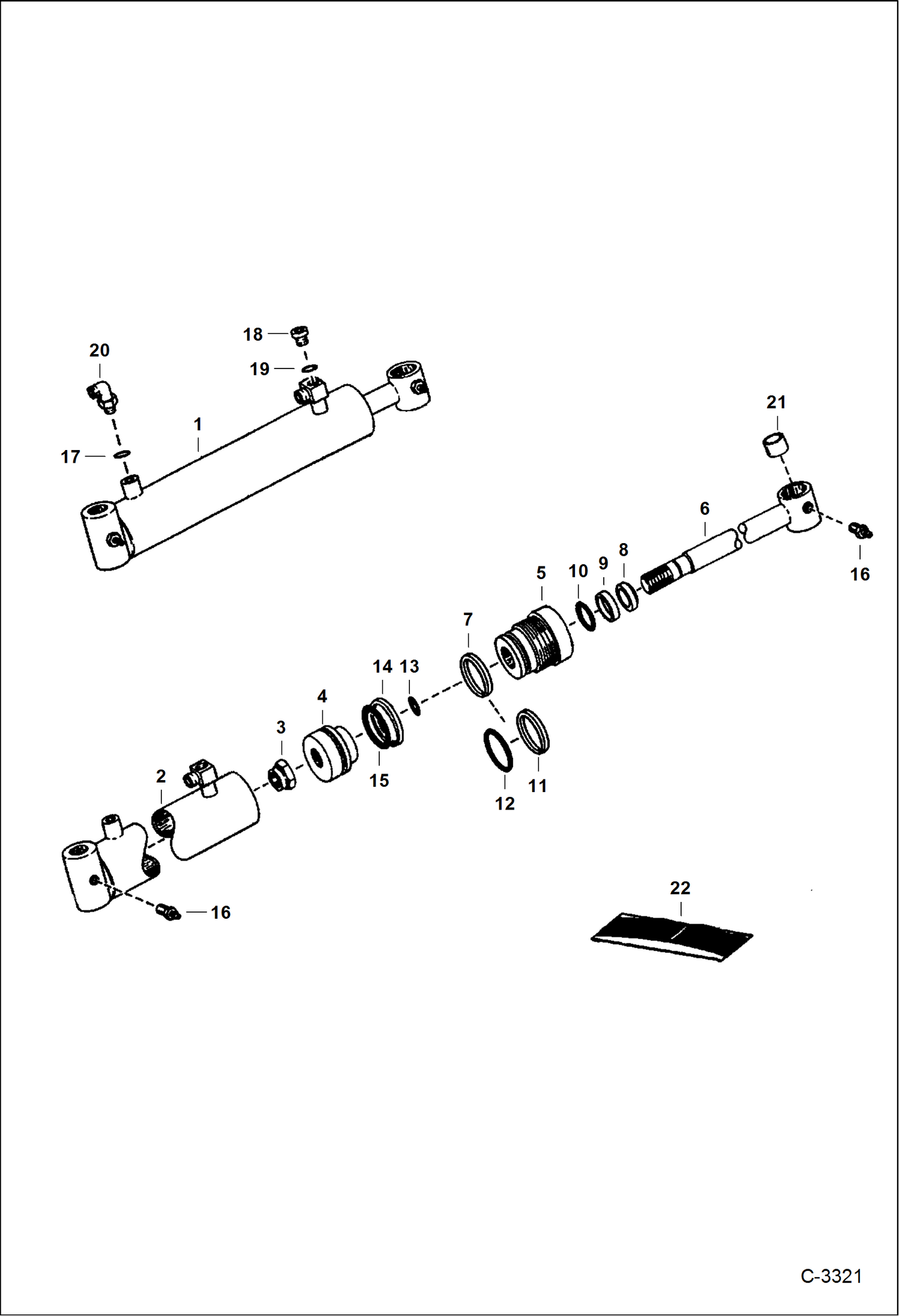

Запчасти Bobcat 400s TILT CYLINDER 1 in. (25,4 mm) Shaft HYDRAULIC SYSTEM

1

6531681

CYLINDER Ref. 2 - 19

2

6531682

CASE

3

92D12

NUT Was 86D000012B - A

4

6558196

PISTON

5

6538595

HEAD, CYL HYD Was 6504933 - A

6

6587333

ROD Was 6529330 - A

7

7008781

SEAL, QUAD

8

SEAL NSS - wiper

9

SEAL NSS - rod

10

O-RING NSS

11

666939

RING back-up

12

O-RING NSS

13

O-RING NSS

14

SEAL NSS - piston

15

O-RING NSS

16

10H25

FITTING, GREASE 5

17

79K6

O RING 10

18

47K2

PLUG

19

79K3

O RING 10

20

17K5

ELBOW

21

6547652

BUSHING

22

7137771

SEAL KIT Ref. 3, 7-10, & 13-15 - Was 6803472 - A
