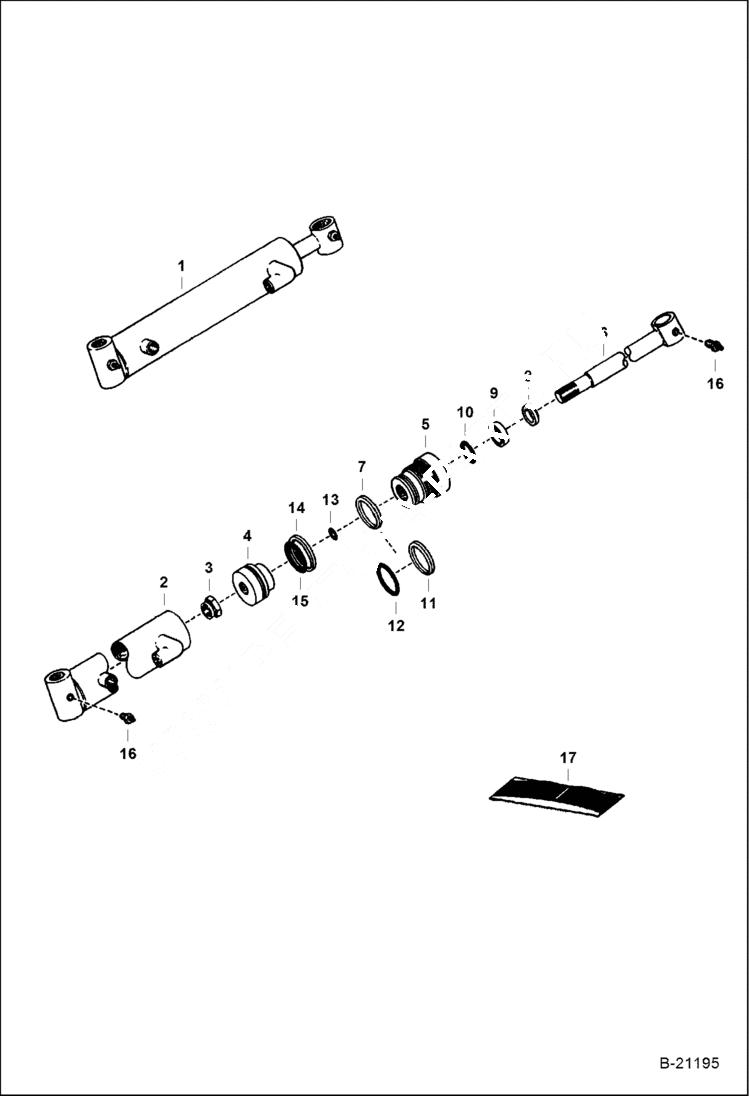

Запчасти Bobcat 400s TILT CYLINDER 1-1/4 in (31,75 mm) Shaft HYDRAULIC SYSTEM

1

CYLINDER NLA - Order 2 of 6531681

2

CASE NLA

3

92D12

NUT See BTI126 Was 86D000012B - A

4

6558196

PISTON See BTI126

5

6539323

HEAD Was 6504932 - A

6

SHAFT NLA - Was 6516211 - A

7

7008781

SEAL, QUAD

8

6665208

SEAL wiper - Was NSS - D

9

6667324

SEAL Rod - Was NSS - D

10

82K136

O-RING

11

73K224

RING back-up - Was NSS - D

12

54K40124

O-RING static - Was NSS - D

13

O-RING NSS

14

6516231

SEAL piston - W/Ref. 15 - Was NSS - D

15

54K30118

O-RING Was NSS - D

16

10H25

FITTING, GREASE 5

17

7137769

KIT, SEAL Ref. 3, 7-10, & 13-15 - Was 6803329 - A
