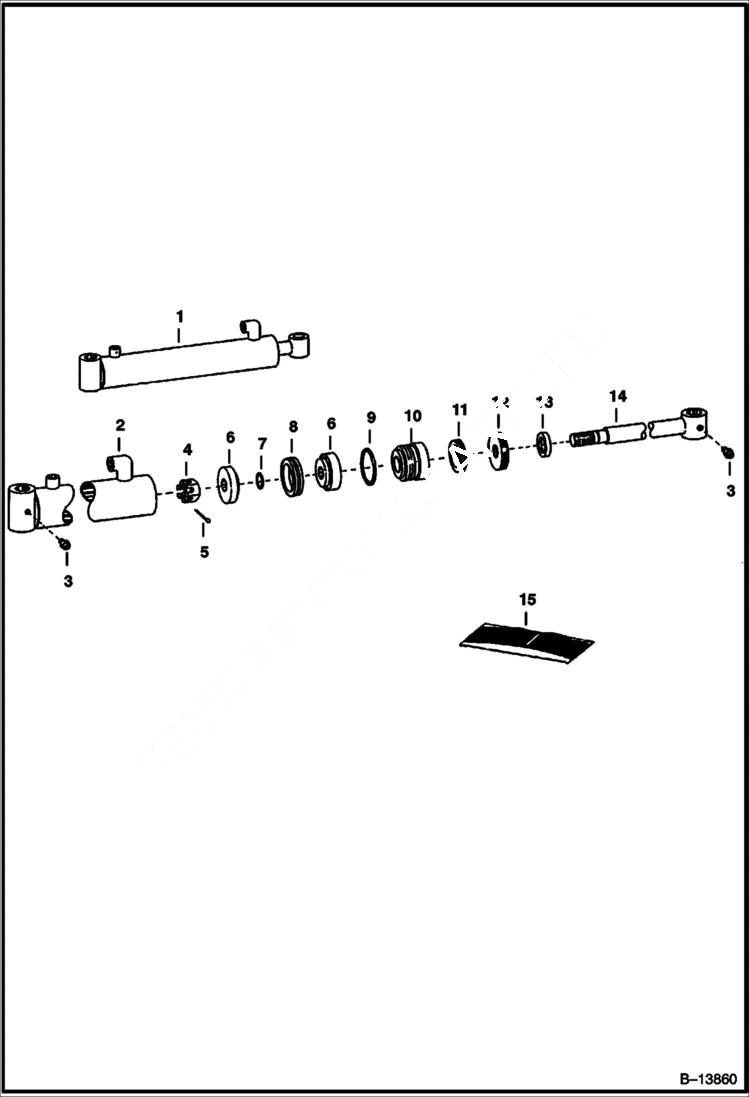

Запчасти Bobcat 400s TILT CYLINDER 1 in (25,4 mm) Shaft HYDRAULIC SYSTEM

1

CYLINDER NLA - Order 6531681

2

CASE NLA

3

10H25

FITTING, GREASE 5

4

3D12

NUT castle

5

1F616

PIN

6

PISTON NLA - Was 6516207 - A

7

O-RING NSS

8

SEAL NSS - piston

9

O-RING NSS

10

GLAND NLA - Was 6505845 - A

11

SEAL NSS - Rod

12

RETAINER NSS - Rod seal - Was 6505826 - A

13

200032

SEAL wiper

14

ROD NSS - Order 6501108 Cylinder - Was 6516206 - A

15

6661304

SEAL KIT Ref. 7, 8, 9, 11 & 13 - Was 6505850 - A
