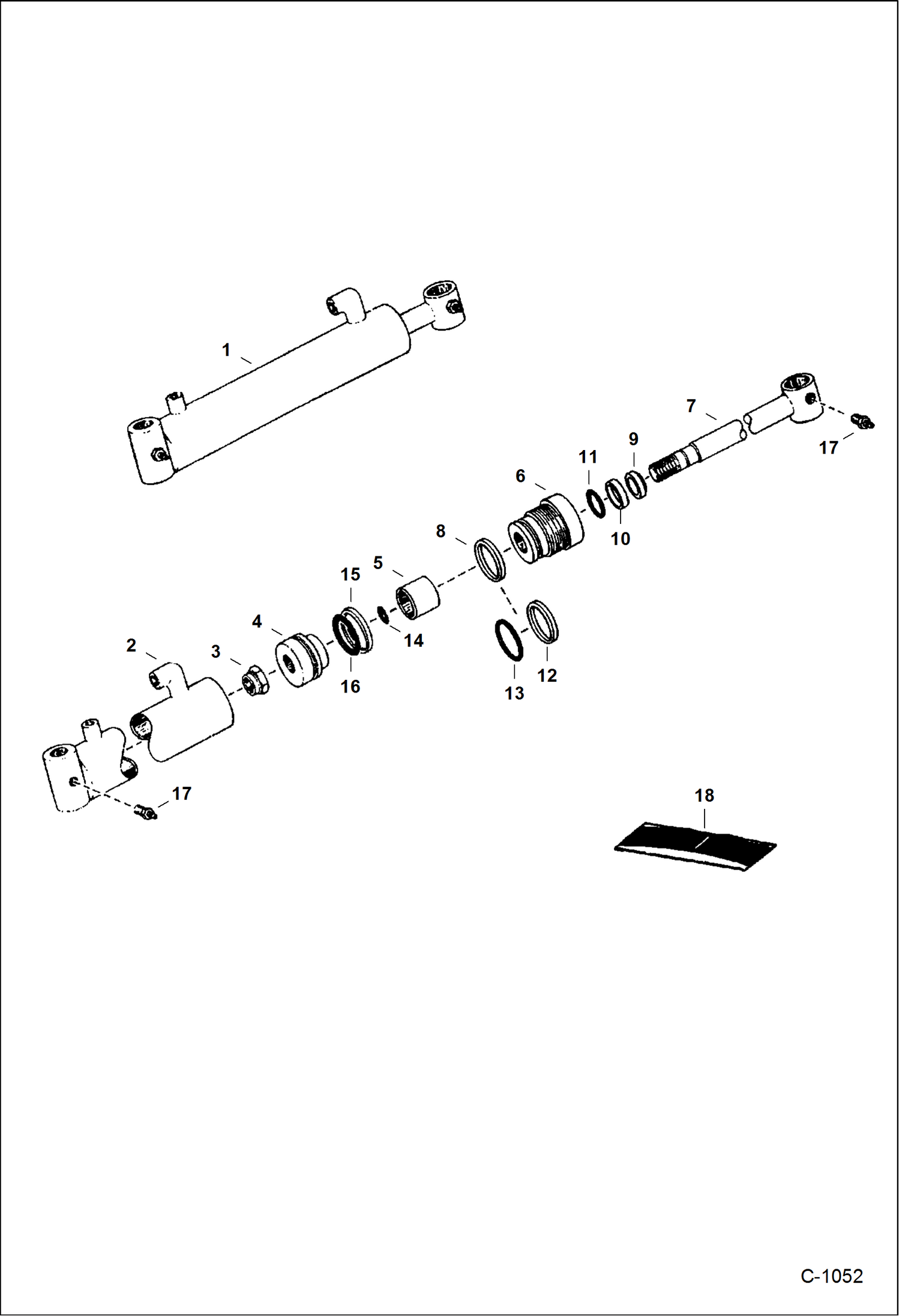

Запчасти Bobcat 400s LIFT CYLINDER 1-1/4 in. (31,75 mm) Shaft HYDRAULIC SYSTEM

1

CYLINDER ASSY. NLA - Ref. 2-16 - Was 6501103 - A

2

6592030

CASE

3

92D12

NUT See BTI126 Was 86D000012B - A

4

6558196

PISTON See BTI126

5

6514501

SPACER

6

6539323

HEAD Was 6504932 - A

7

NLA - Was 6504950 - A

8

7008781

SEAL, QUAD

9

6665208

SEAL wiper - Was NSS - D

10

6667324

SEAL rod - W/Ref. 11 - Was NSS - D

11

82K136

O-RING

12

73K224

RING back-up - Was NSS - D

13

54K40124

O-RING Was NSS - D

14

O-RING NSS

15

6516231

SEAL piston - Was NSS - D

16

54K30118

O-RING Was NSS - D

17

10H25

FITTING, GREASE 5

18

7137769

KIT, SEAL Ref. 3, 8-11, & 14-16 Was 6803329 - A
