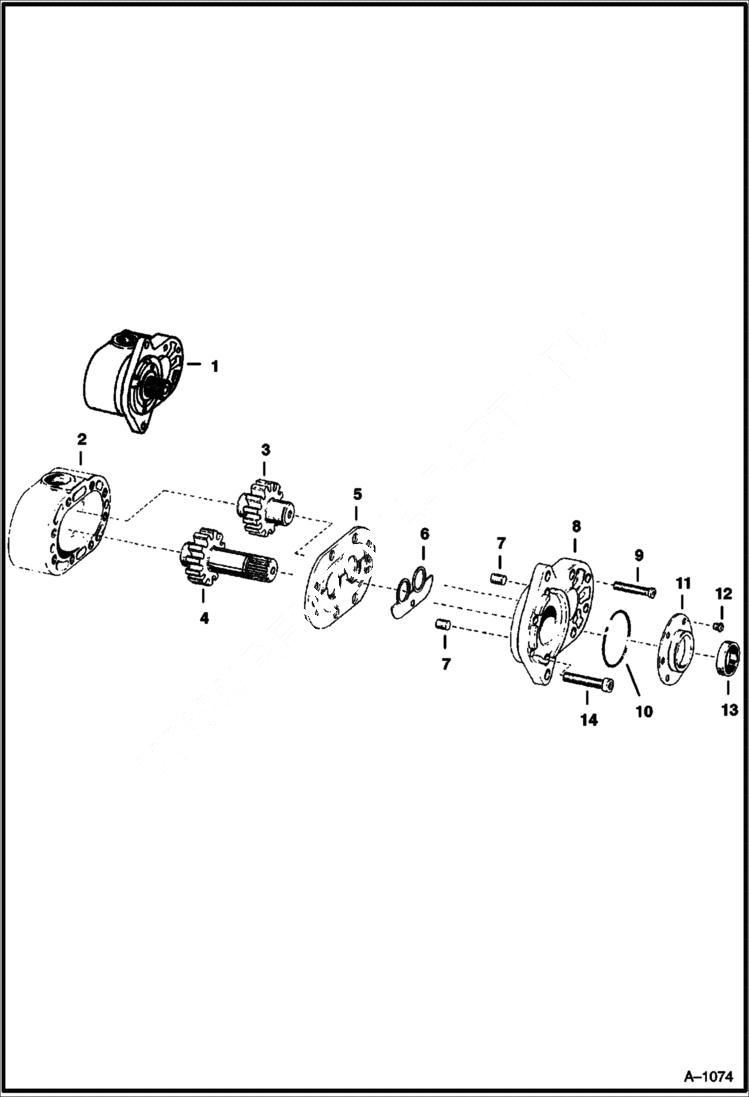

Запчасти Bobcat 400s HYDRAULIC PUMP Clockwise Rotation M-500 Diesel - S/N 44572 & Above HYDRAULIC SYSTEM

1

6516281

PUMP Webster - #116YC053-RC - See Ill. B1237 for pump drive parts

2

6516259

BODY

3

6516271

SHAFT idler & gear

4

6516268

SHAFT drive & gear

5

6516261

PLATE wear & gear

6

BLOCK NSS - anti-extrusion

7

6516264

DOWEL PIN

8

6516256

BODY ASSY.

9

93G520

SCREW cap

9

6516265

WASHER

10

25K30130

O RING 10

11

RETAINER NLA - seal - W/Ref. 13 - Was 6515437 - A

12

SCREW NLA - Was 85G001005B - A

13

1318237

SEAL oil

14

93G520

SCREW

14

6516266

WASHER
