Запчасти Bobcat 400s HYDRAULIC PUMP Counterclockwise Rotation M-444 & M-500 HYDRAULIC SYSTEM

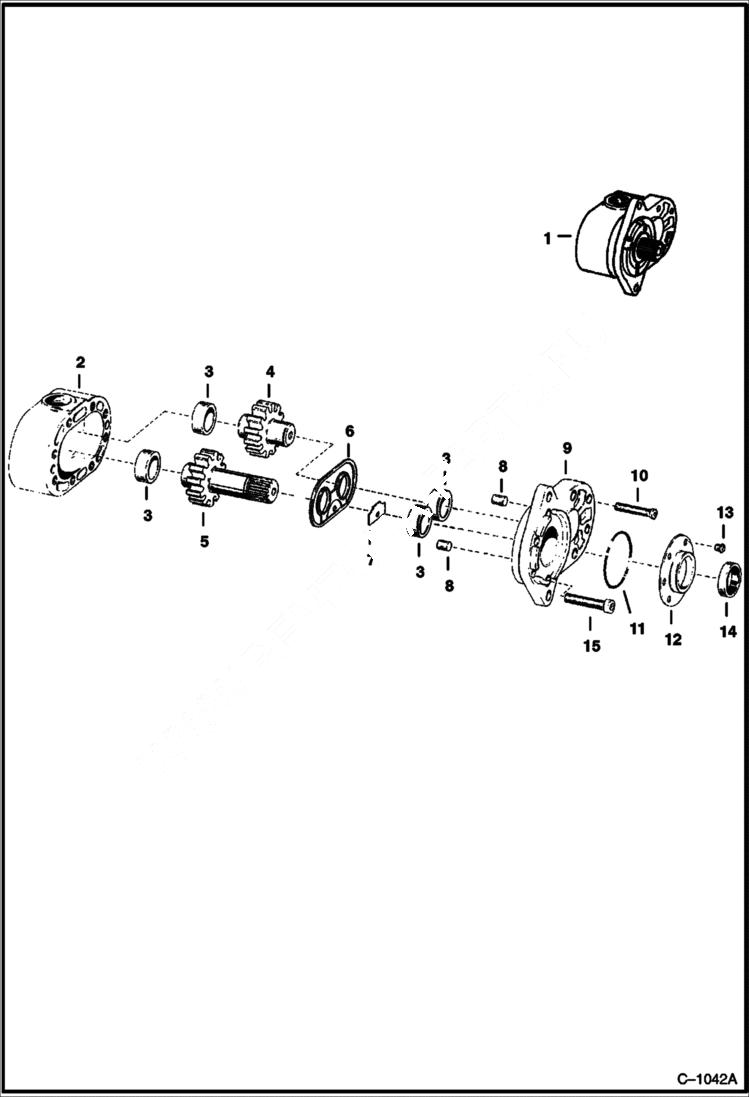

Схема запчастей Bobcat 400s - HYDRAULIC PUMP Counterclockwise Rotation M-444 & M-500 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6511860

PUMP hydraulic - Ref. 2-15 - For Pump drive parts see Ill. C1060 or B21207

2

COVER ASSY. NLA

3

654386

BEARING needle

4

6516270

SHAFT idler & gear

5

SHAFT NLA - drive & gear

6

PLATE NLA - wear & seal

7

6516273

BLOCK anti-extrusion

8

6515115

DOWEL PIN

9

BODY ASSY. NLA

10

93G520

SCREW cap

11

25K30130

O RING 10

12

SEAL Ref 12 Ref 14 NLA - W/retainer assy. - Was 6515437 - A

13

SCREW NLA - Was 85G001005B - A

14

1318237

SEAL oil

15

93G624

SCREW cap

Выбрано товаров: 15
