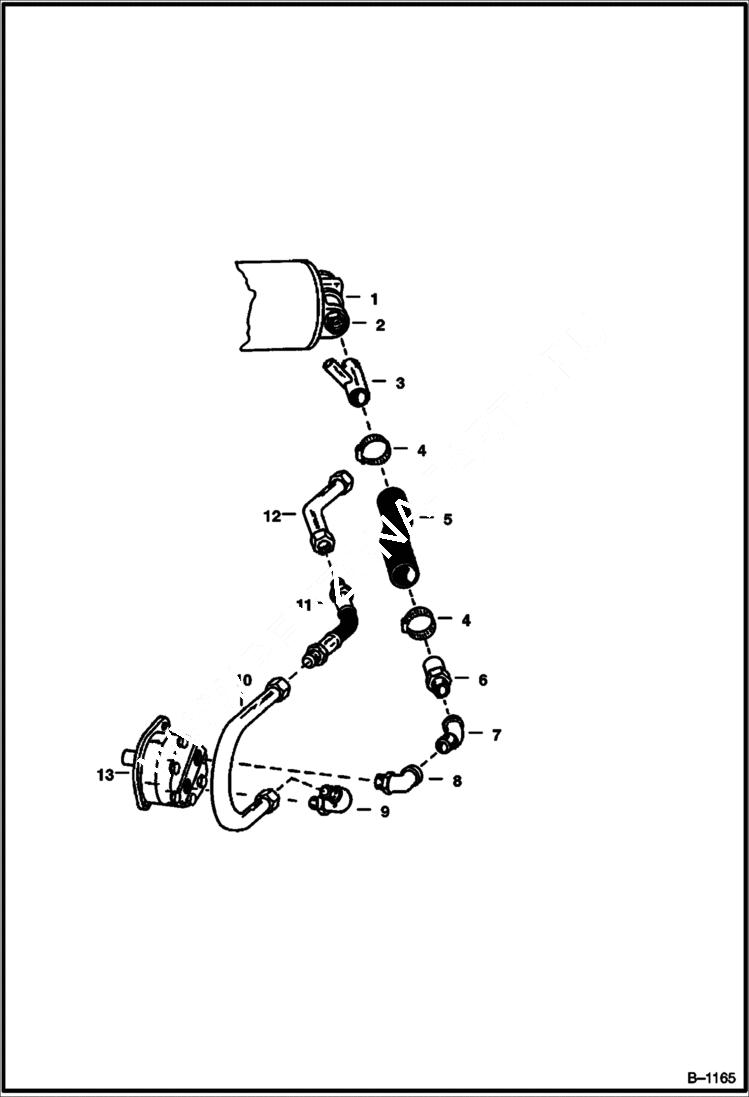

Запчасти Bobcat 400s HYDRAULIC PUMP CIRCUITRY HYDRAULIC SYSTEM

1

FILTER See Illustration HYDRAULIC OIL FILTER/ B13878 HYDRAULIC NLA - hydrostatic - 10 micron - Was 6555477 - A

2

19F16

BUSHING reducing

3

6501488

TUBE

4

42H32

HS CLAMP5

5

6503414

HOSE

6

ADAPTER NLA - Was 6504881 - A

7

25F5

ELBOW street

8

536224

UNION street

9

17KB1210

FITTING, HYD ELBOW Was 6714901 - A

10

TUBE NLA - Was 6501442 - A

11

6501199

HOSE

12

6501443

TUBE

13

PUMP See Illustration HYDRAULIC PUMP/ B21193 See Illustration HYDRAULIC PUMP/ C1042 See Illustration HYDRAULIC PUMP/ A1074 See Illustration HYDRAULIC PUMP/ C1042A HYDRAULIC
