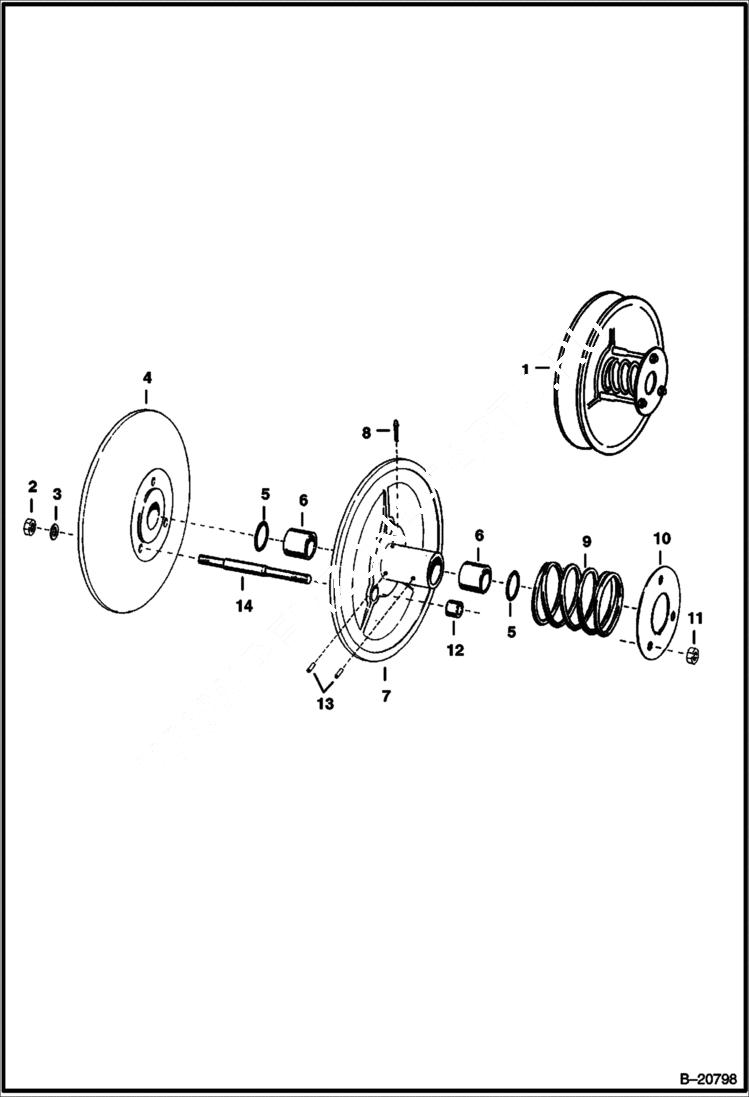

Запчасти Bobcat 400s VARIABLE SPEED DRIVEN SHEAVE M-500 Models S/N 44568 & Above - Tapered Jackshaft DRIVE TRAIN

1

6501434

SHEAVE ASSY. Ref. 2 - 14

2

61D8

NUT 5

3

6E8

WASHER

4

6504914

SHEAVE half

5

225855

SEAL, OIL 10 38 mm (1.5'') OD

6

1318377

BUSHING

7

6501426

SHEAVE, VARIABLE SPEED HALF half - W/Ref. 5, 6, 8, 12 & 13

8

1318381

FITTING

9

6504926

SPRING

10

6504925

PLATE

11

81D6

NUT

12

618337

BUSHING 5 stud

13

791355

ROLL PIN

14

6504924

STUD
