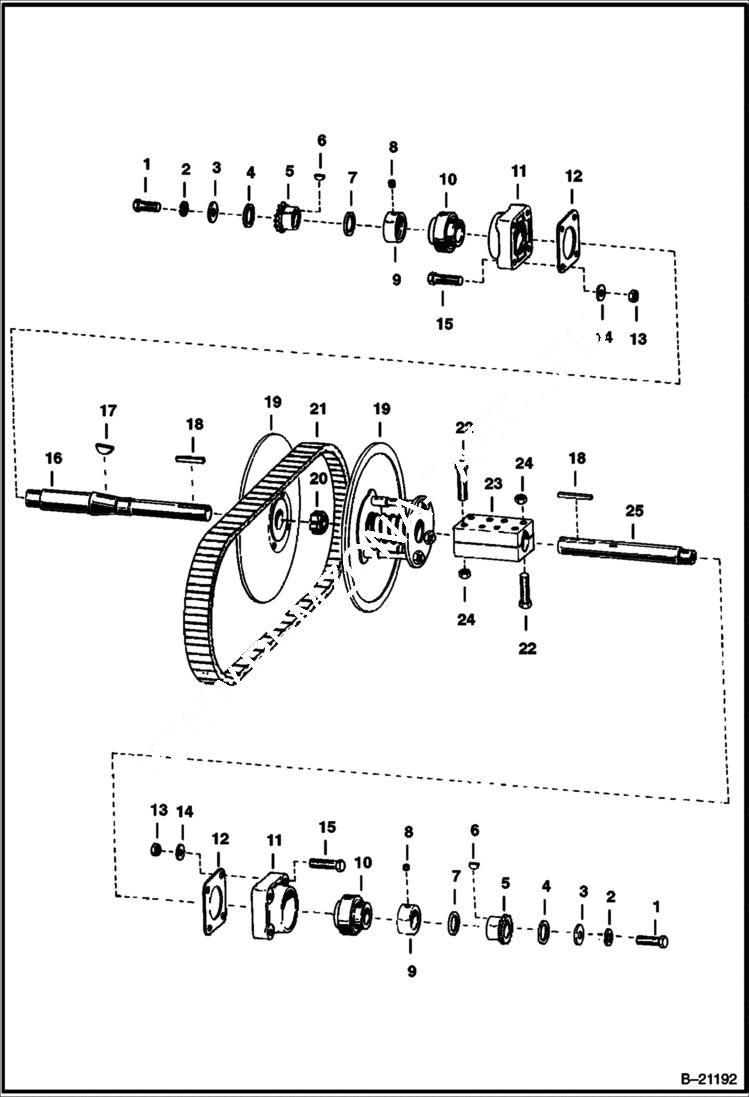

Запчасти Bobcat 400s VARIABLE SPEED JACKSHAFT S/N 44568 & Above - Tapered Jackshaft DRIVE TRAIN

1

17C816

BOLT

2

4E8

WASHER

3

6558268

WASHER

4

6503370

WASHER

4

WASHER NLA - Was 6505362 - A

5

6502315

SPROCKET

6

5J806

KEY

7

6502521

WASHER

7

WASHER NLA - Was 6505361 - A

8

15G606

SCREW

9

6515106

COLLAR W/Ref. 8

10

BEARING NLA - Order (1) Ref. 9 & 6518862 - Was 6509275 - A

10

6518862

BEARING W/O Collar

11

6515105

HOUSING bearing

12

6502341

GASKET

13

81D8

NUT

14

6515466

WASHER sealing

15

17C824

BOLT 5

16

6503352

JACKSHAFT half - L.H.

17

5J1010

KEY

18

7J3200

KEY square

19

6501434

SHEAVE ASSY. See Illustration VARIABLE SPEED DRIVEN SHEAVE/ B20798

20

6503357

NUT spanner

21

6515271

BELT Length 62.5'' (1587,5mm)

21

6504510

BELT Length 58.5'' (1485,9mm)

22

18C544

BOLT 5

23

6502810

SPLICER splicer

24

82D5

NUT 5

25

6551114

JACKSHAFT half - R.H.
