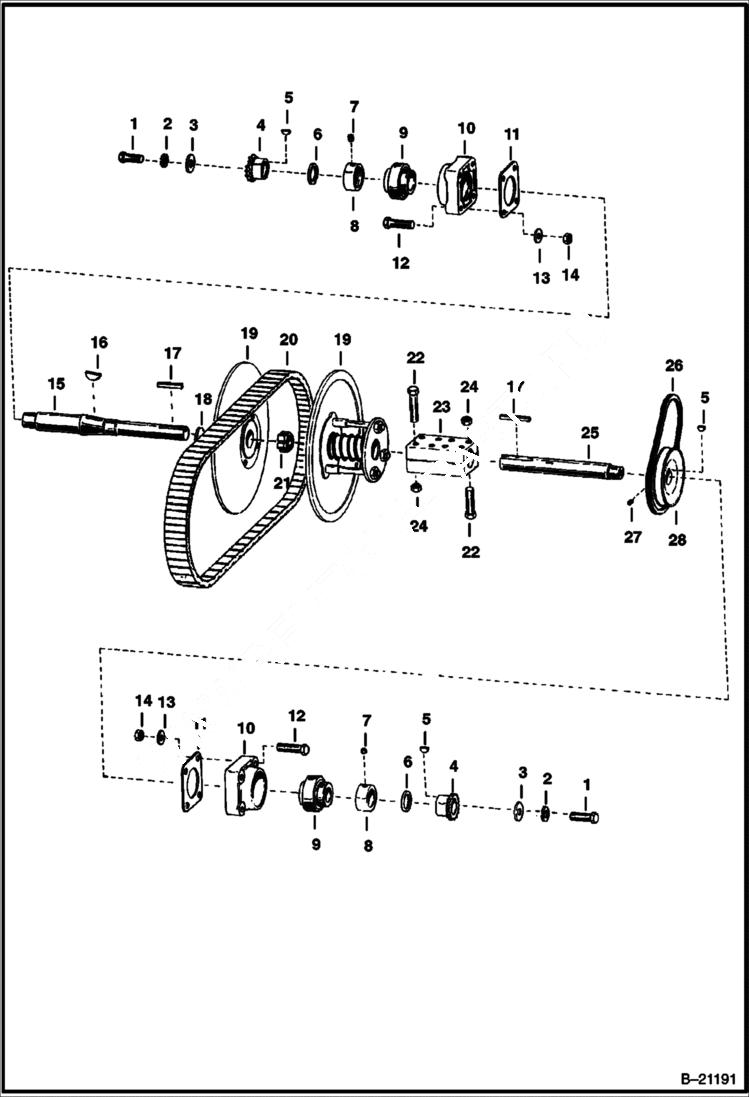

Запчасти Bobcat 400s VARIABLE SPEED JACKSHAFT 500 & 444 S/N 44567 & Below Tapered Jackshaft Conversion DRIVE TRAIN

1

17C816

BOLT

2

4E8

WASHER

3

6558268

WASHER

4

6502315

SPROCKET

5

5J806

KEY

6

6502521

WASHER machine

7

15G606

SCREW

8

6515106

COLLAR locking

9

BEARING NLA - Order (1) Ref. 8 & 6518862 - Was 6509275 - A

9

6518862

BEARING W/O Collar

10

6515105

HOUSING bearing

11

6502341

GASKET

12

17C824

BOLT 5

13

6515466

WASHER sealing

14

81D8

NUT

15

6554942

JACKSHAFT M-444

15

6503352

JACKSHAFT M-500

16

5J1010

KEY

17

7J3200

KEY

18

100202

SNAP RING Use 1300 688

19

6501434

SHEAVE ASSY. See Illustration VARIABLE SPEED DRIVEN SHEAVE/ B20798 DRIVEN

20

6504510

BELT drive

20

6515271

BELT drive

21

6503357

NUT spanner

22

18C544

BOLT 5

23

6502810

SPLICER splicer

24

82D5

NUT 5

25

6551114

JACKSHAFT

26

6505371

BELT alternator

27

15G406

SCREW

28

6551201

PULLEY
