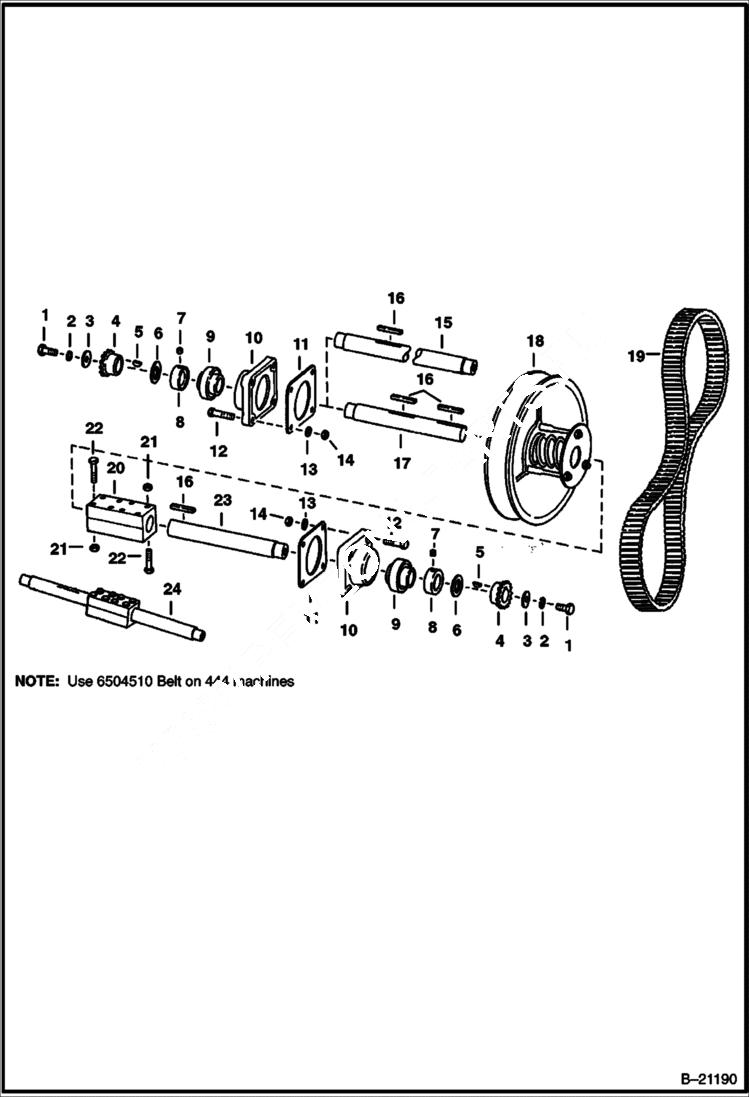

Запчасти Bobcat 400s VARIABLE SPEED JACKSHAFT M-500 & M-444 S/N 44567 & Below - Straight Jackshaft DRIVE TRAIN

1

17C816

BOLT

2

4E8

WASHER

3

6558268

WASHER

4

6502315

SPROCKET

5

5J806

KEY

6

6502521

WASHER machine

7

15G606

SCREW

8

6515106

COLLAR locking

9

BEARING NLA - Order (1) Ref. 8 & 6518662 - Was 6509275 - A

9

6518862

BEARING W/O Collar

10

6515105

HOUSING bearing

11

6502341

GASKET

12

17C824

BOLT 5

13

6515466

WASHER sealing

14

81D8

NUT

15

JACKSHAFT See BTI101 NLA - (500) - ONE PIECE

15

JACKSHAFT See BTI101 NLA - (444) one piece

15

JACKSHAFT See BTI101 NLA - (444) one piece

16

7J3200

KEY

17

JACKSHAFT See BTI101 NLA - Left

18

SHEAVE See Illustration VARIABLE SPEED DRIVEN SHEAVE/ C1015 See BTI101 NLA - DRIVEN

19

6504510

BELT drive - 444 & 500 - See Note - 58.5 in.

19

6515271

BELT drive - 500 - 62.5 in.

20

6502810

SPLICER splicer

21

82D5

NUT 5

22

18C544

BOLT 5

23

6551114

JACKSHAFT half - Right

24

JACKSHAFT See BTI101 NLA
