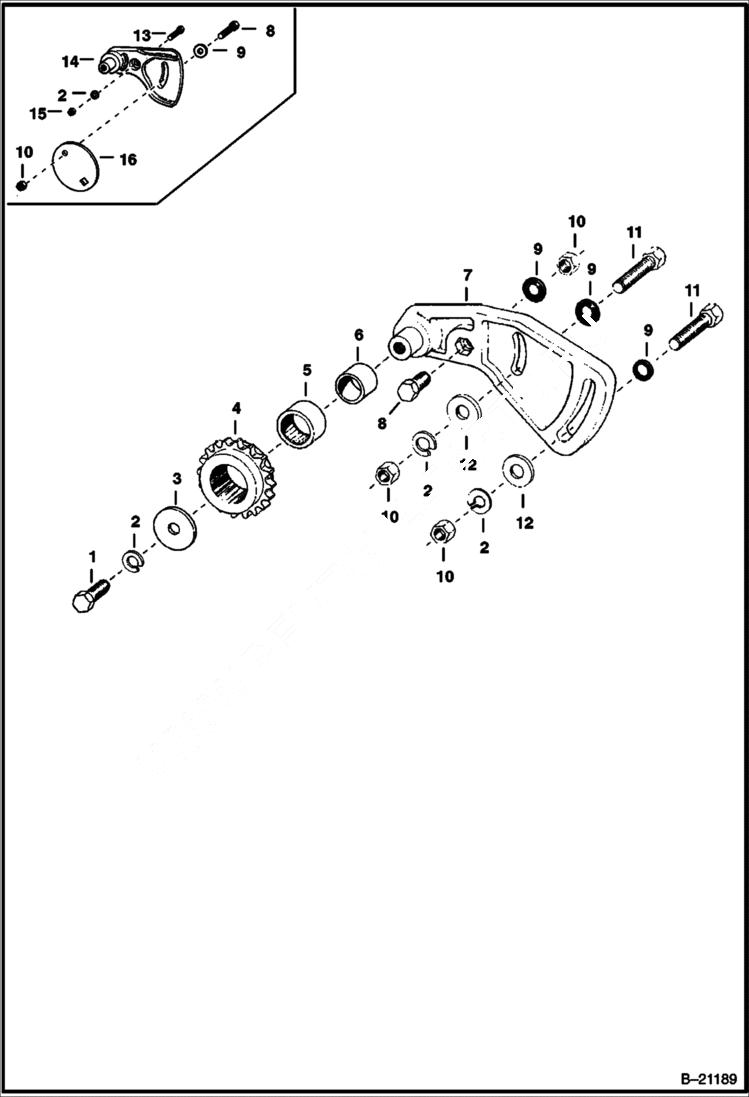

Запчасти Bobcat 400s INSIDE CLUTCH CHAIN TIGHTENER Right Side DRIVE TRAIN

1

17C824

BOLT 5

2

4E8

WASHER

3

6515817

WASHER

4

6502598

SPROCKET #50C16

4

6504512

SPROCKET #40C19

5

861741

BEARING needle

6

6515069

RACE

7

ARM NLA - R.H. - Was 6502619 - A

7

ARM NLA - L.H. - Was 6502618 - A

8

SCREW NLA - Was 18C000920B - A

9

6515467

WASHER sealing

10

62D9

NUT

11

BOLT NLA - Was 18C928 - A

12

WASHER NLA - Was 584092 - A

13

18C820

BOLT

14

ARM NLA - R.H. - Was 6502619 - A

14

ARM NLA - L.H. - Was 6502618 - A

15

62D8

NUT

16

6505346

WASHER eccentric
