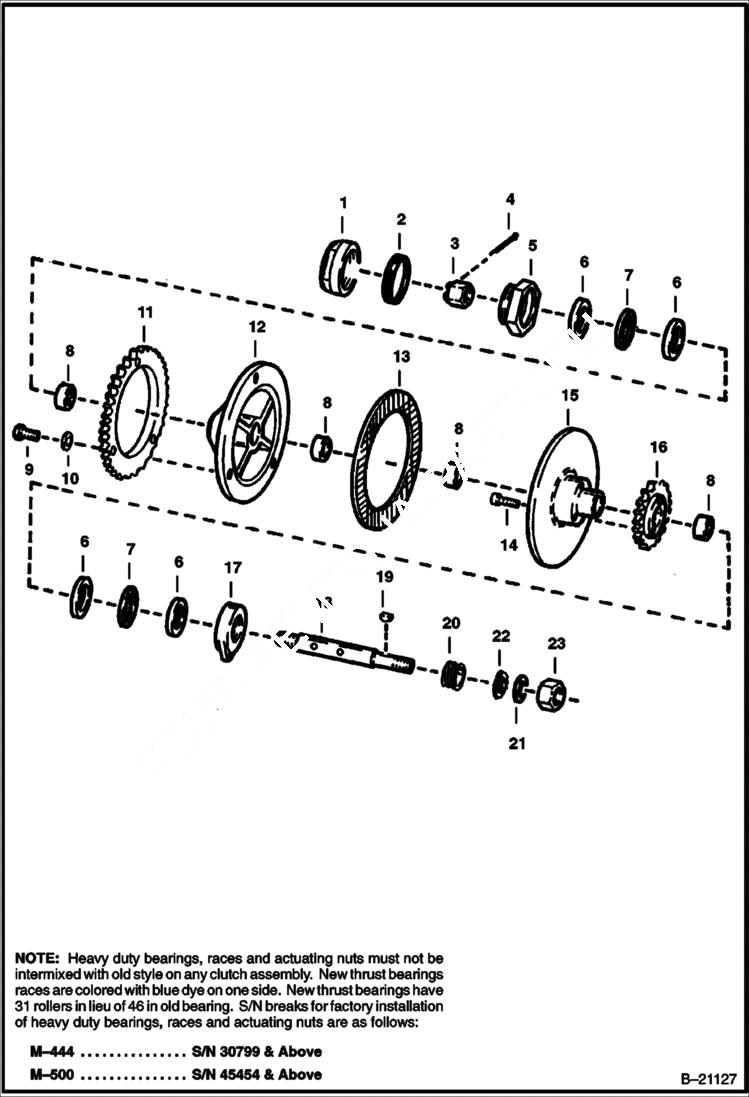

Запчасти Bobcat 400s CLUTCH DRIVE TRAIN

1

6502539

CAP

2

6515195

SEAL

3

6D14

NUT castle

4

1F424

PIN

5

NUT NLA

5

6541404

NUT clutch - See Note

6

RACE NLA - thrust

6

6540478

RACE thrust - See Note

7

BEARING NLA

7

6519100

BEARING thrust - See Note

8

6515068

BEARING needle

9

8C512

SCREW

10

6E5

WASHER

11

6502282

SPROCKET clutch

12

6502538

PLATE, CLUTCH outside

13

6649871

LINING Was 6502424 - A

14

1318464

SCREW cap

15

6502532

PLATE, CLUTCH inside

16

6502597

SPROCKET #50B16

16

6502283

SPROCKET #40B19

17

NUT NLA - L.H.

17

6540558

NUT actuating - L.H. - See Note

17

NUT NLA - R.H.

17

6540559

NUT actuating - R.H. - See Note

18

6502415

PIN clutch

19

5J405

KEY woodruff

20

6502311

THREAD L.H.

20

6502312

THREAD R.H.

21

6505041

WASHER

22

5E14

WASHER

23

62D14

NUT
