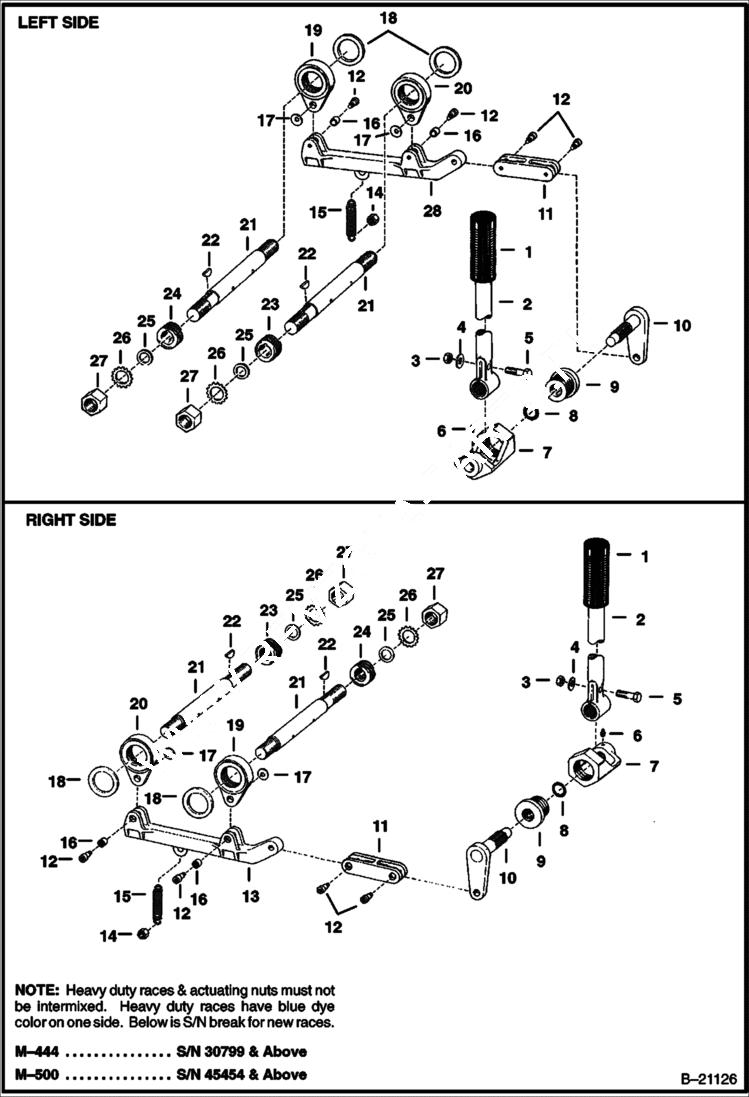

Запчасти Bobcat 400s CLUTCH CONTROL LINKAGE DRIVE TRAIN

1

6513963

GRIP

2

6502635

LEVER splined shaft

2

LEVER NLA - flat shaft - Was 6505372 - A

3

62D6

NUT 5

4

6E6

WASHER

5

18C624

BOLT

5

17C620

BOLT

6

10H35

FITTING, GREASE 10

7

6502630

NUT steering

7

8D24

NUT

8

25K40028

O RING 10

9

6502291

BUSHING

10

6504707

SHAFT splined

10

SHAFT NLA - flat - Was 6505373 - A

11

BAR NLA - Was 6502537

12

6502340

SCREW shoulder

13

BAR NLA - RH - Was 6502536 - A

14

81D6

NUT

15

6505076

SPRING

16

6544654

BUSHING

17

6515316

WASHER spring

18

RACE See BTI113 NLA - thrust

18

6540478

RACE thrust - See Note

19

NUT See BTI113 NLA - actuating - R.H. Threaded - W/Ref. 18

19

6540559

NUT actuating - R.H. Threaded - See Note - W/Ref. 18

20

NUT See BTI113 NLA - actuating - L.H. Threaded - W/Ref. 18

20

6540558

NUT actuating - L.H. Threaded - See Note - W/Ref. 18

21

6502415

PIN clutch

22

5J405

KEY woodruff

23

6502311

THREAD L.H.

24

6502312

THREAD R.H.

25

6505041

WASHER

26

5E14

WASHER

27

62D14

NUT

28

BAR NLA - LH - Was 6502535 - A
