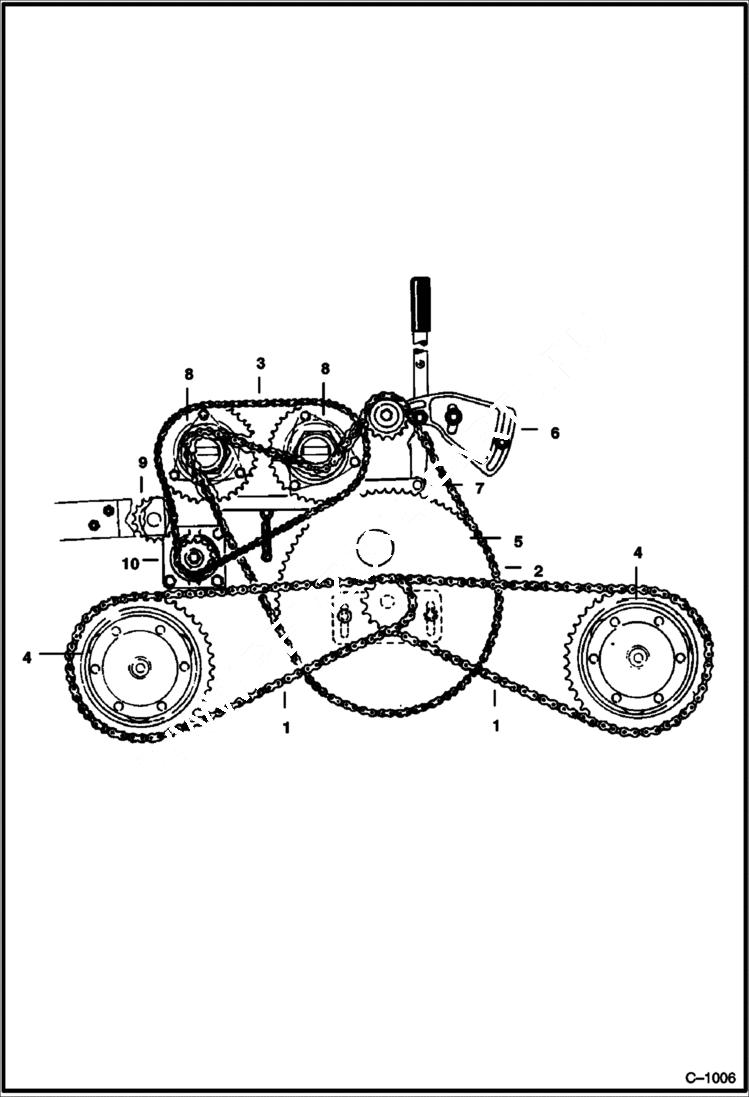

Запчасти Bobcat 400s DRIVE TRAIN Left Side DRIVE TRAIN

1

6515462

CHAIN #60 76 PITCH #60H - 76 pitch w/conn.

1

6515376

CHAIN #60H - 77 pitch w/conn.

1

6557648

LINK

1

6515191

LINK #60 - press fit

1

6515383

LINK connector W/cotter key

2

6515377

CHAIN #50 - 118 pitch w/conn.

2

6515370

CHAIN #40 - 145 pitch w/conn.

2

6515187

LINK #50

3

6515369

CHAIN #40 - 80 pitch w/conn.

3

6564943

LINK #40 - press fit

3

600761

OFF LINK #40 - half

4

AXLE See Illustration FRONT BRAKE AXLE/ B21125 See Illustration AXLE/ C1007

5

JACKSHAFT See Illustration LOWER JACKSHAFT/ C1008 LOWER

6

TIGHTENER See Illustration INSIDE CLUTCH CHAIN TIGHTENER/ B21189 CHAIN - INSIDE

7

LINKAGE See Illustration CLUTCH CONTROL LINKAGE/ B21126 CLUTCH CONTROL

8

CLUTCH See Illustration CLUTCH/ B21127

9

TIGHTENER See Illustration OUTSIDE CLUTCH CHAIN TIGHTENER/ C1013 CHAIN - OUTSIDE

10

JACKSHAFT See Illustration VARIABLE SPEED DRIVEN SHEAVE/ B20798 VARIABLE SPEED
