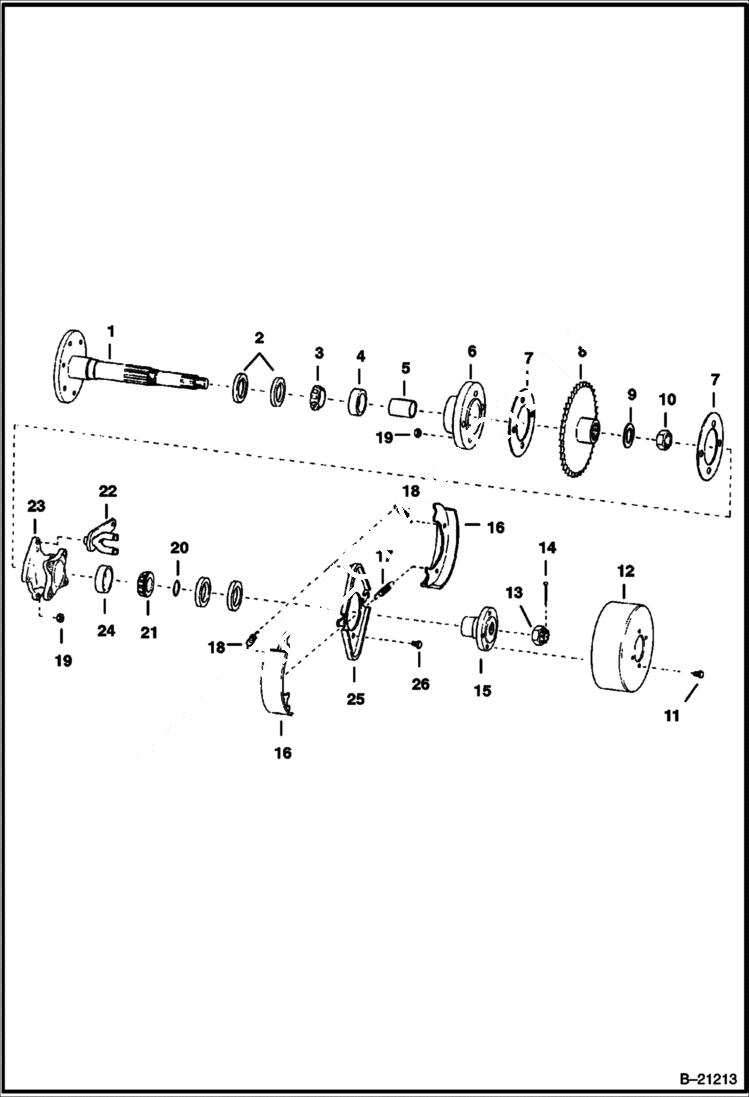

Запчасти Bobcat 400s AXLE & BRAKE ASSEMBLY ACCESSORIES & OPTIONS

1

6542555

AXLE front

2

6515000

SEAL

3

6648774

BEARING Was 743778B - A

4

6648776

RACE Was 6618776 - D

5

SPACER NLA - Was 6502288 - A

6

6502533

HUB outside

7

6502209

GASKET

8

6504794

SPROCKET

9

6503242

WASHER

10

NUT NLA - Was 6503241 - A

11

17C712

BOLT

12

6518098

DRUM brake

13

4D18

NUT castle

14

1F628

PIN

15

HUB NLA - brake drum mounting - Was 6503238 - A

16

KIT NLA - Brake Shoe - 2 sets - Was 6516195 - A

17

6518095

SPRING holding

18

6518094

SPRING return

19

81D8

NUT

20

980678

O'RING

20

25K40112

O RING 10 Use in Kit 6506919

21

1318538

BEARING

21

6519412

BEARING

22

CAM NLA - R.H. - Was 6546212 - A

22

6546211

CAM L.H.

22

6501439

CAM

23

6503235

HUB

23

6542728

HUB

24

1318539

BEARING

24

6519413

RACE

25

6516196

PLATE

26

17C820

BOLT
