HYDRAULIC PUMP DRIVE F2L310 Deutz Diesel

Запчасти Bobcat 400s HYDRAULIC PUMP DRIVE F2L310 Deutz Diesel POWER UNIT

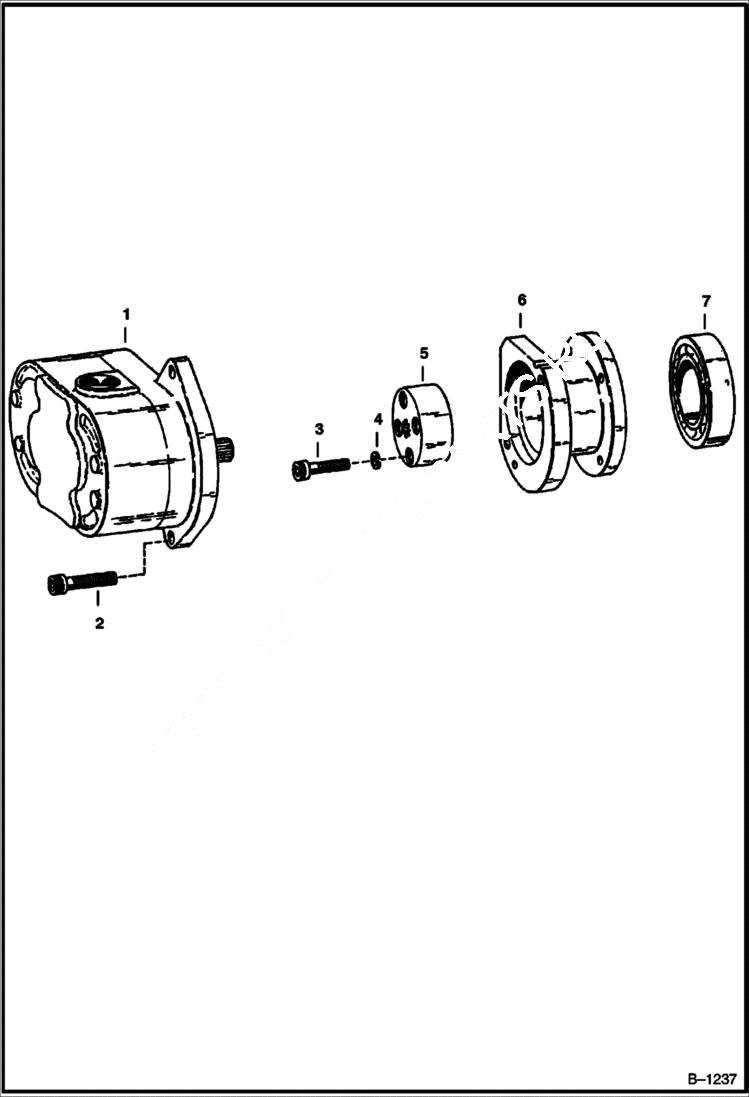

Схема запчастей Bobcat 400s - HYDRAULIC PUMP DRIVE F2L310 Deutz Diesel POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PUMP See Illustration HYDRAULIC PUMP/ C1042 HYDRAULIC

2

73G624

BOLT socket

3

SCREW NLA - socket - Was 5GM00830B - A

4

6EM80

WASHER, SPRING

5

COUPLER NLA - Was 6508095 - A

6

6508165

ADAPTER

7

302712

BEARING outside camshaft support
