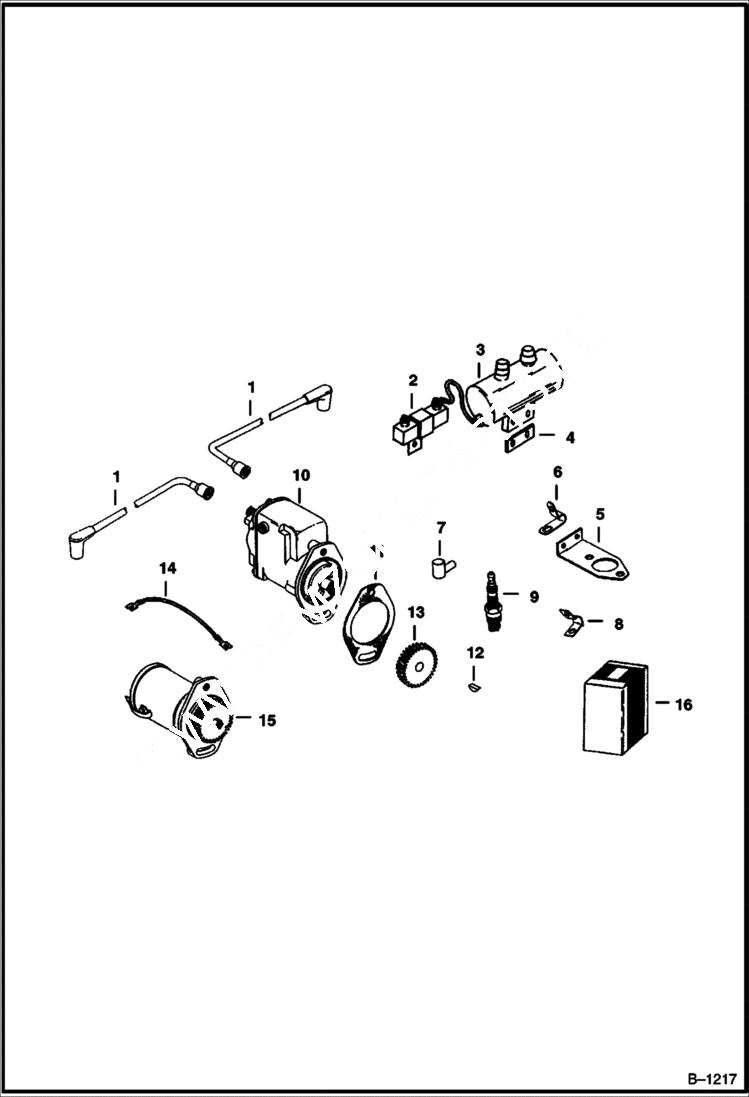

Запчасти Bobcat 400s IGNITION POWER UNIT

1

CABLE NLA - #1

1

CABLE NLA - set

1

CABLE NLA - #2

1

6511016

CABLE lead

2

6517343

RESISTOR

3

6512212

COIL

4

PLATE NLA - Was 6517345 - A

5

BRACKET NLA

6

CLIP NLA - cable

7

COVER NLA - terminal

8

CLIP NLA - cable

9

SPARK PLUG LPG NLA - Use Champion J6 or Prestolite 14 3

9

890268

SPARK PLUG-10 Gasoline

10

MAGNETO See Illustration MAGNETO/ B1191 NLA - WAS 6517352 - A

11

6517353

GASKET magneto mounting

12

5J808

KEY woodruff

13

GEAR NLA - Magneto Drive - Was 6517355 - A

14

WIRE NLA - lead

15

DISTRIBUTOR See Illustration DISTRIBUTOR/ B1206 NLA - WAS 6517356 - A

16

6518099

KIT high temperature shut-off
