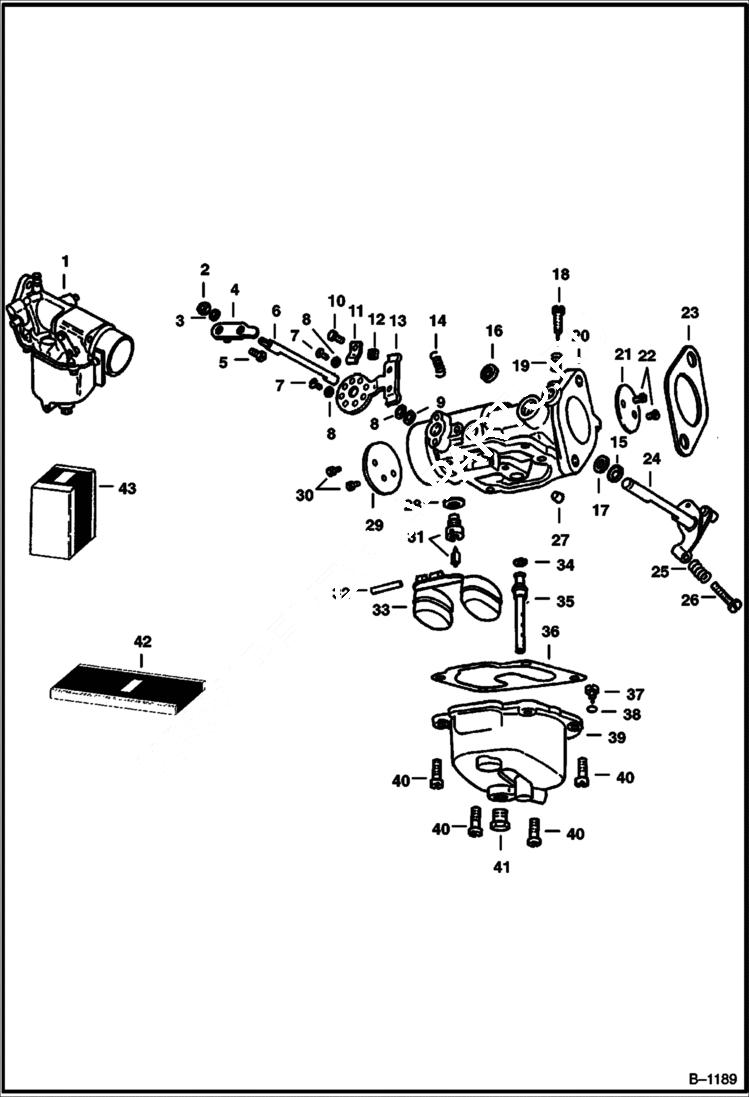

Запчасти Bobcat 400s CARBURETOR Zenith No. 13306 POWER UNIT

1

CARBURETOR NLA - Use W/E/S No. 3959 & 3966 - Carburetor Model 12A10 - Was 6517135 - A

1

CARBURETOR NLA - Use W/E/S No. 3947 - Use 6517135

2

14D8

NUT

3

17E10

WASHER

4

852287

LEVER choke

5

BOLT NLA - choke lever - Was 46G000806B - A

6

SHAFT NSS - cover - Was 6517279 - A

7

BOLT NLA - retaining - Was 871564B - A

8

RETAINER NSS - shutter seal

9

SEAL NSS - choke shaft

10

BOLT NLA - choke clamp - Was 46G000808B - A

11

CLAMP NLA - bracket - Was 871561B - A

12

NUT NSS - clamp screw

13

6517261

BRACKET choke

14

6644952

SPRING return - Was 850032B - A

15

RETAINER NSS - seal

16

PLUG NSS - cup

17

SEAL NSS - rubber

18

NEEDLE NSS - idle adjustment

19

6517264

SPRING

20

BODY NLA - carburetor

21

PLATE NSS - throttle - Was 6517265 - A

22

WASHER NSS - screw & lock - W/17E000004B

23

6517132

GASKET flange

24

SHAFT NLA - throttle - W/E/S No. 3947

24

6517267

SHAFT throttle - W/E/S No. 3959 & 3966

25

866397

SPRING throttle stop

26

42G1016

10 SCREWS

27

PLUG NSS - cup

28

WASHER NSS - seal

29

6517268

PLATE choke

30

SCREW NSS - choke plate

31

VALVE NSS - fuel

32

850001

PIN float

33

FLOAT NSS - Was 6517270 - A

34

WASHER NSS - seal

35

WELL & VENT NLA - Discharge - Was 6517272 - A

36

GASKET NSS

37

JET NLA - main - use complete carb. #651713 - W/E/S No. 3959 & 3966 - Was 898146B - A

37

6517274

JET main - W/E/S No. 3947

38

WASHER NSS - fiber

39

6517275

BOWL fuel

40

SCREW NSS

41

40K2

PLUG bowl drain

42

KIT NLA - carb. gasket - W/E/S No. 3959, 3966 & 3947 - Ref. 23, 34, 36, 38 - Was 6517276 - A

43

KIT NLA - carb. repair - W/E/S No. 3959, 3966 - Ref. 8, 9, 15 - 18, 22, 23, 27, 30, 31, 34, 36, 38 & 40 - Was 6517446 - A
