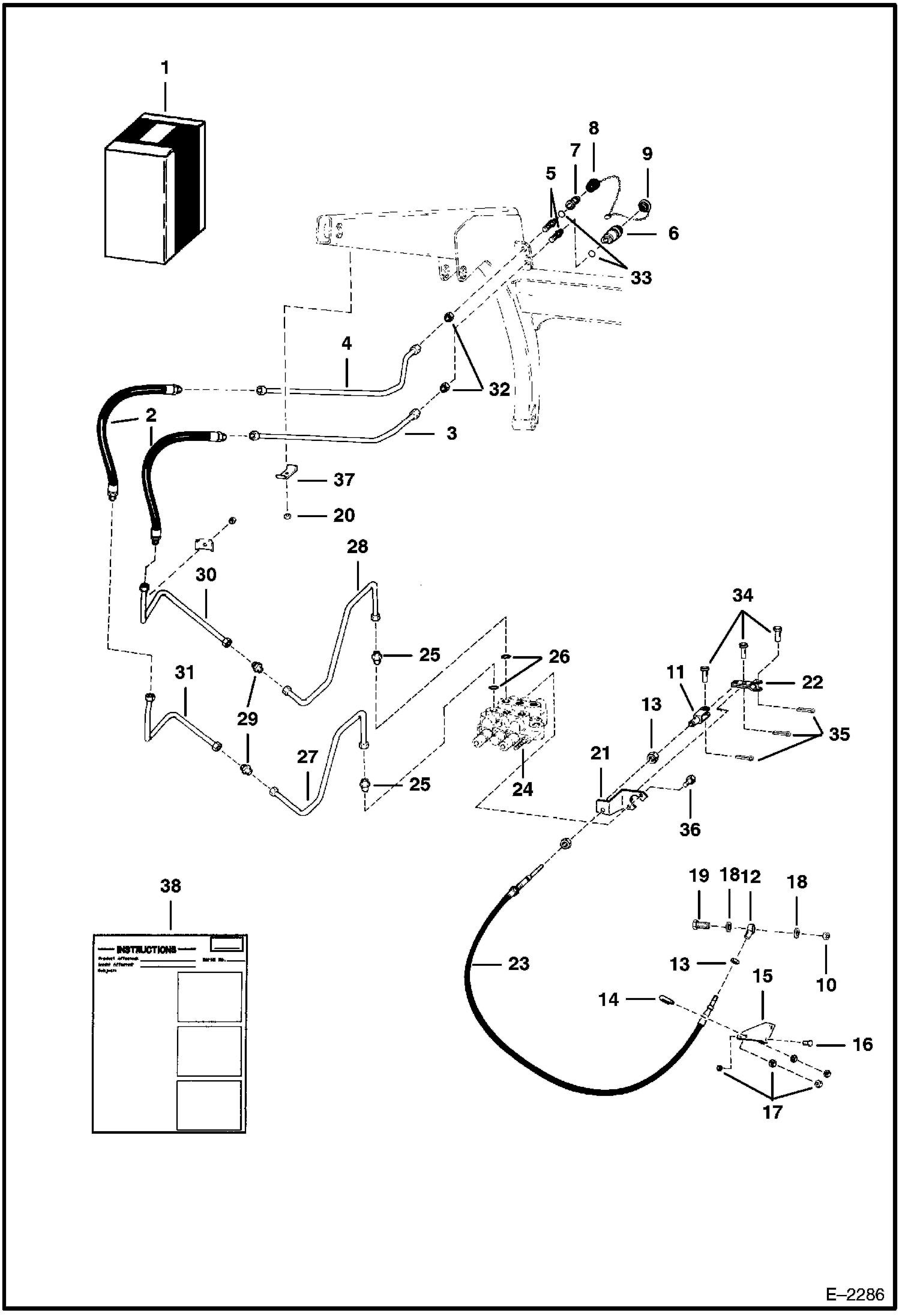

Запчасти Bobcat 400s AUXILIARY HYDRAULIC KIT ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-23 & 25-38 - Was 6592935 - A

2

6530855

HOSE Was 6565078 - A

3

6564122

TUBE

4

6564123

TUBE

5

45K6

CONNECTR

6

COUPLER NLA - Poppet - female - Was 6630092 - A

6

6667805

COUPLER, FF FEMALE See BTI302 - straight

6

25K30024

O RING 10 For poppet syle couplers

6

73K116

RING For poppet syle couplers

7

COUPLER NLA - Poppet - male - Was 6630093 - A

7

6667806

COUPLER See BTI302 Flush face - male

8

3679001

CAP

9

3679000

PLUG-DUST

10

62D4

NUT

11

2J4200

CLEVIS

12

6593671

CONNECTOR

13

8D4

NUT

14

6592766

U-BOLT

15

6564802

MOUNT

16

17C512

BOLT 5

17

85D5

NUT 5

18

25E13

WASHER 5

19

17C416

BOLT

20

85D6

NUT, 5

21

6592937

GUIDE

22

6592940

ARM

23

6599469

CABLE

24

VALVE See Illustration HYDRAULIC VALVE/ B9634

25

731794

CONNECTR

26

79K10

O RING 10

27

6565144

TUBE

28

6565145

TUBE

29

87F6

FITTING

30

6592960

TUBE

31

6592961

TUBE

32

86F6

NUT

33

79K8

O RING 10

34

1304227

PIN

35

1F208

PIN

36

73G412

SCREW

37

6500989

CLAMP

38

6566718

INSTRUCTIONS
