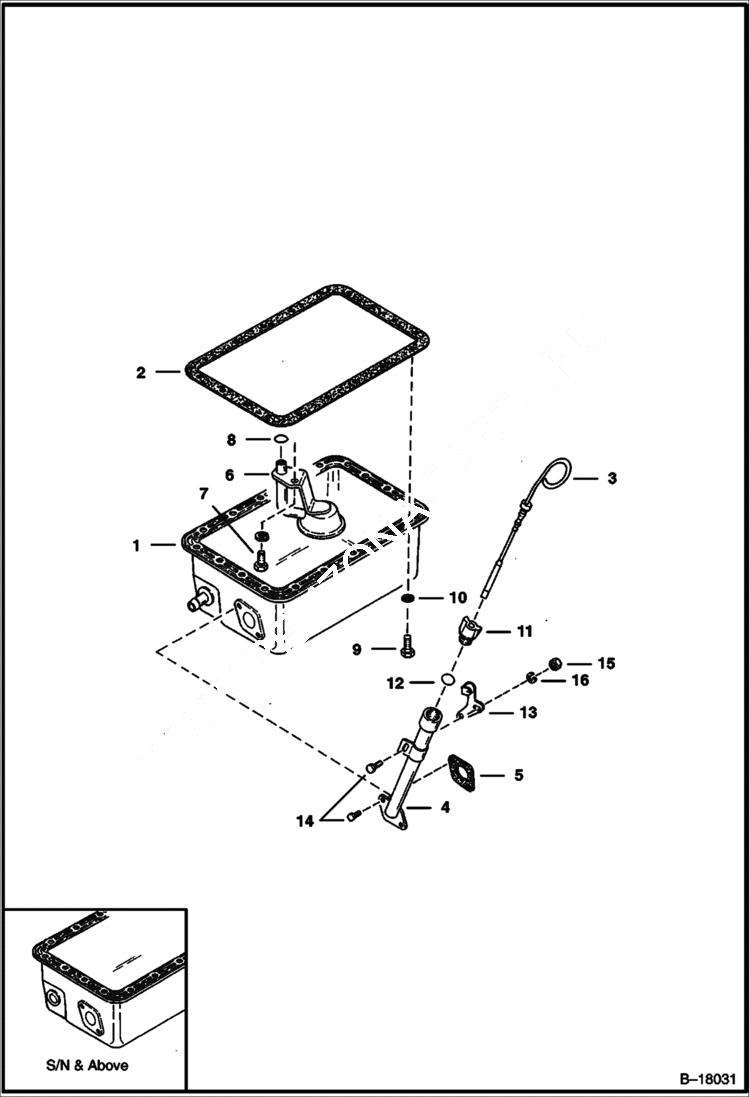

Запчасти Bobcat 400s OIL PAN POWER UNIT

1

PAN See Illustration ENGINE & ATTACHING PARTS/ B18026 NLA - W/NIPPLE - ORDER 6641350 - WAS 6630201 - A

1

6641350

PAN W/Adapter

2

6666798

GASKET Was 6599111 - A

3

6599145

DIPSTICK

4

6599143

TUBE

5

6599142

GASKET

6

6599003

SCREEN

7

1CM818

BOLT Was 4CM818 - A

8

6599983

O-RING

9

6599069

BOLT

10

6EM60

WASHER, SPRING

11

6599144

PLUG

12

25K40100

O RING 10

13

BRACKET NLA - Was 6599146 - A

14

1CM818

BOLT

15

1DM8

NUT Was 25DM00008B - A

16

1EM80

WASHER
