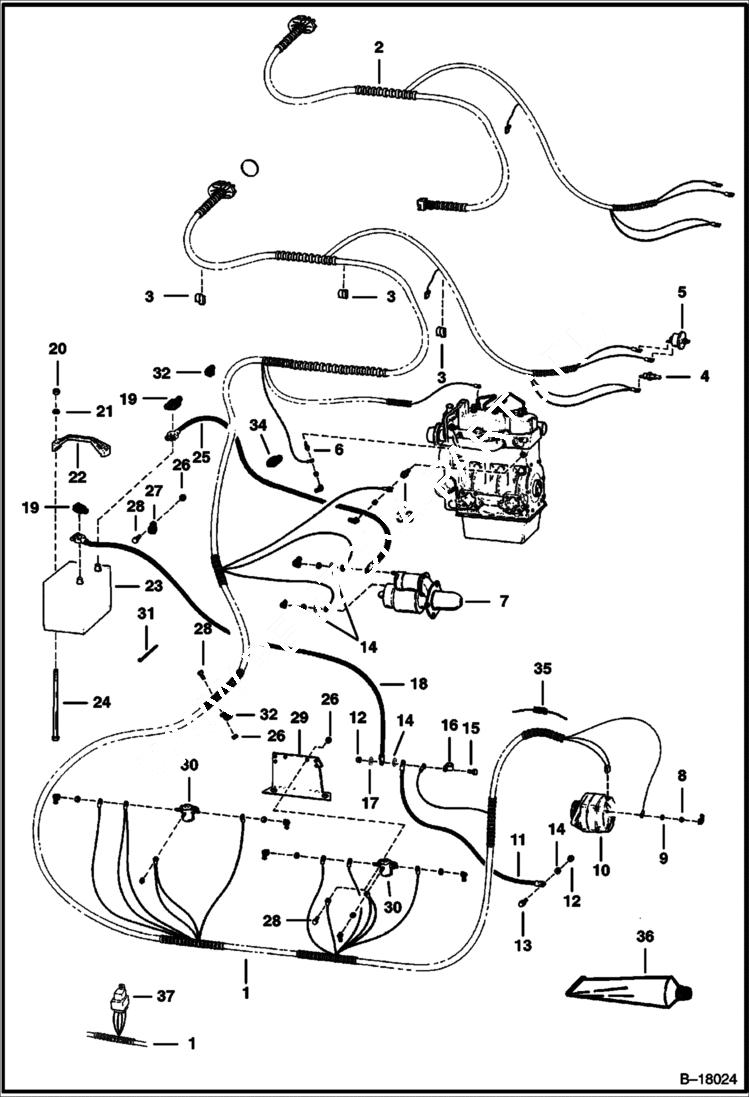

Запчасти Bobcat 400s ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6565088

HARNESS engine - for delco alternator

1

6529472

HARNESS engine - for motorola alternator

1

6703688

HARNESS engine/chassis - with Bosch Solenoids Ref. 37 & motorola alternator

1

6705156

HARNESS Engine/chassis - for Mando alternator

2

6565087

HARNESS chassis - Use W/6565088 and 6529472

3

6599698

CLIP

4

6632633

SWITCH hyd temp - Was 6564560 - A

5

6671062

SWITCH hydro. pressure - Was 6664577 - A

6

SWITCH See BTI259 NLA - engine temp. - Was 6599492 - A

6

6658818

SENDER See BTI259 eng. temp. - threaded connector - Use W/6658817 gauge

7

STARTER See Illustration STARTER (SEALED)/ B17654 See Illustration STARTER/ B1192

8

1DM6

NUT Use W/Delco Alternator - Was 4DM6 - A

9

6E4

WASHER 10

10

ALTERNATOR See Illustration ALTERNATOR/ C2999 See Illustration ALTERNATOR/ C1802

11

6565170

CABLE neg

12

85D6

NUT, 5

13

84G3712

BOLT 5

14

6E6

WASHER

15

17C618

BOLT Was 17C000616B - B

16

30H42

CLAMP

17

25E17

WASHER 5

18

6514559

CABLE

19

2356058

BOOT

20

59D5

NUT 5

21

25E15

WASHER

22

6569203

CLAMP Was 6563462 - A

23

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

23

6630154

CAP gang - Danger

23

6630155

CAP gang - Poison

23

6514898

CAP tilt-tite

24

6569623

BOLT

25

6557450

CABLE

26

85D4

NUT 5

27

31H17

CLAMP Was 30H000019B - B

28

17C410

BOLT 10

29

6564401

MOUNT

30

6632186

SOLENOID

31

6610510

TIE Was 6591255 - A

32

30H54

CLIP

33

6969775

SWITCH, OIL PRESSURE Oil pressure - Was 6652576 - A

34

31H42

CLIP

35

3675725

DIODE

36

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz

37

6651975

SWITCH
