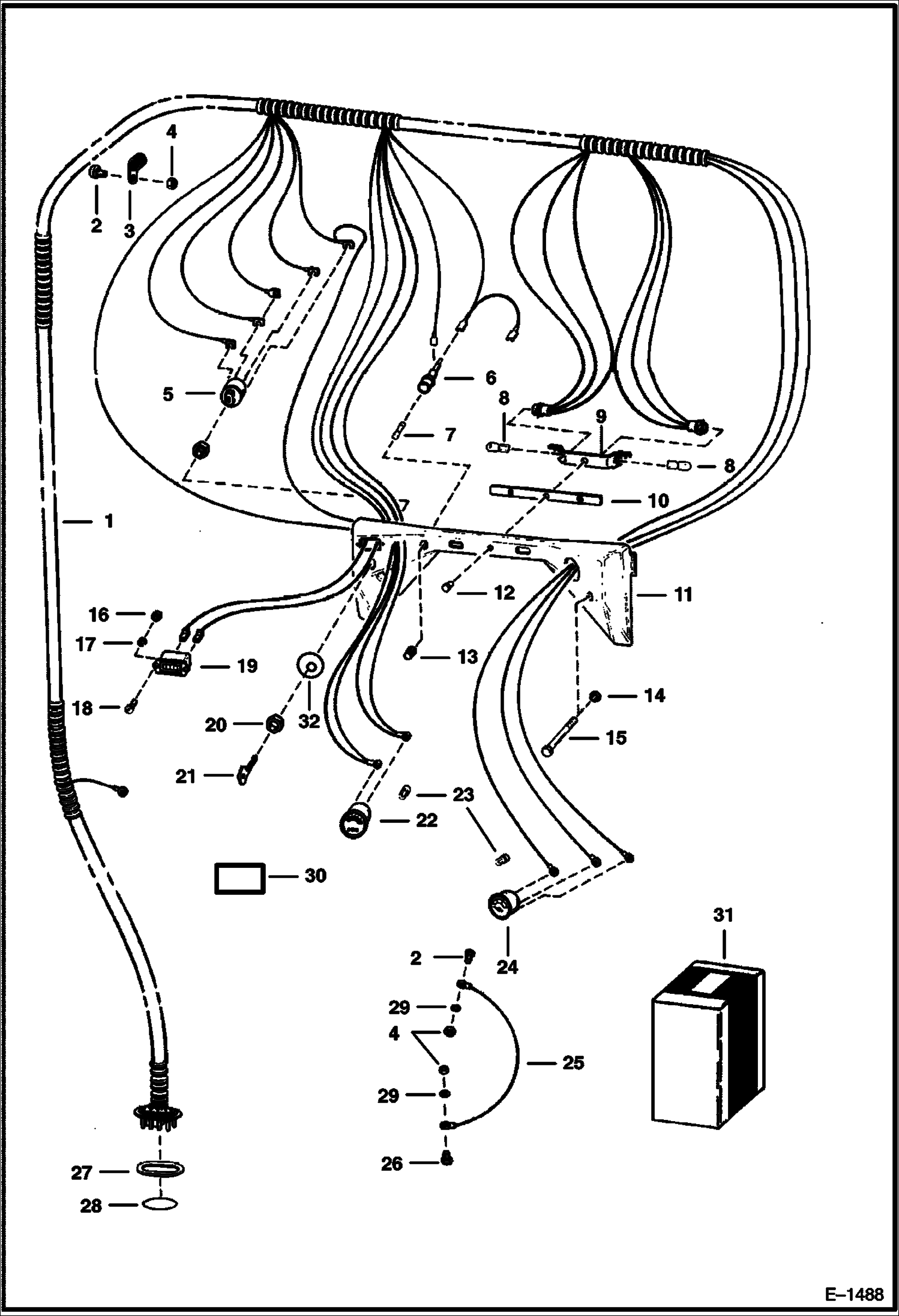

Запчасти Bobcat 400s CAB ELECTRICAL CIRCUITRY (S/N 13642 & Below) ELECTRICAL SYSTEM

1

6565066

HARNESS

2

17C512

BOLT 5

3

30H45

CLIP Was 30H000041B - B

4

61D5

NUT

5

SWITCH See BTI289 NLA - ignition - Order Ref. 30

5

6665606

SWITCH

6

6513469

HOLDER

7

1319451

FUSE 5

8

6513468

BULB

9

6558242

BRACKET

10

6560699

LENS

11

6564159

PANEL

12

6514742

RIVET

13

6514642

CAP

14

83D5

NUT 5

15

17C572

BOLT

16

12D6

NUT 10

17

12E6

WASHER

18

85G608

SCREW

19

6664886

HOURMETER Was 6631657 - A

20

6598721

NUT For NLA/6519592 Switch

20

6674202

NUT For 6665606 Switch

21

6512809

KEY for 6519592

21

KEY NLA - for 6665606 switch - includes two keys W/ring - Order 6693241 - Was 6709527 - A

21

6693241

KEY 10 ignition - single key W/O ring

22

VOLTMETER NLA - W/clamp - Order 6669664 voltmeter & 6679027 clamp - Was 6658819 - A

22

6669664

VOLTMETER W/O clamp

23

6599696

SOCKET & BULB Assy.

23

895771

#161 BULB

24

6631649

GAUGE See BTI259 engine temp.

24

GAUGE See BTI259 NLA - eng temp - W/clamp - Order 6669663 gauge & 6679027 clamp - Was 6658817 - A

24

6669663

GAUGE See BTI259 eng temp - W/O clamp

25

6594283

WIRE ground

26

84G3112

BOLT 5

27

6564590

FLANGE

28

25K40100

O RING 10

29

25E15

WASHER

30

6565976

DECAL

31

6724282

SWITCH KIT W/Ref. 5 & 21

32

6709172

PLATE
