CONTROL PEDALS (S/N 11950 & Above)

Запчасти Bobcat 400s CONTROL PEDALS (S/N 11950 & Above) HYDRAULIC SYSTEM

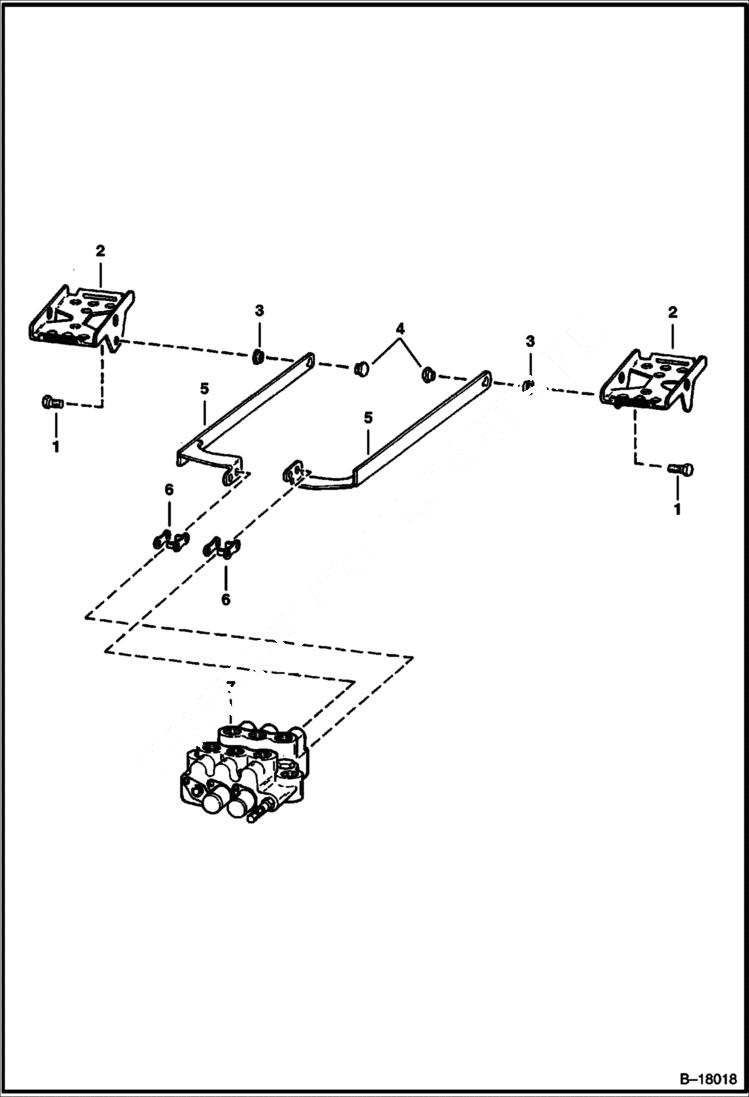

Схема запчастей Bobcat 400s - CONTROL PEDALS (S/N 11950 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

17C610

BOLT

2

PEDAL NLA - one piece stamped - Order 6707056 pedal & Ref. 5 (6707053 bar) - Was 6594297 - A

2

6707056

PEDAL two piece welded

3

6598906

BUSHING nylon

4

6559479

NUT

5

BAR NLA - Order Ref. 2 (6707056 pedal) & 6707053 bar

5

6707053

BAR

6

6515186

CONNECTOR connector

7

VALVE See Illustration HYDRAULIC VALVE/ B9634
