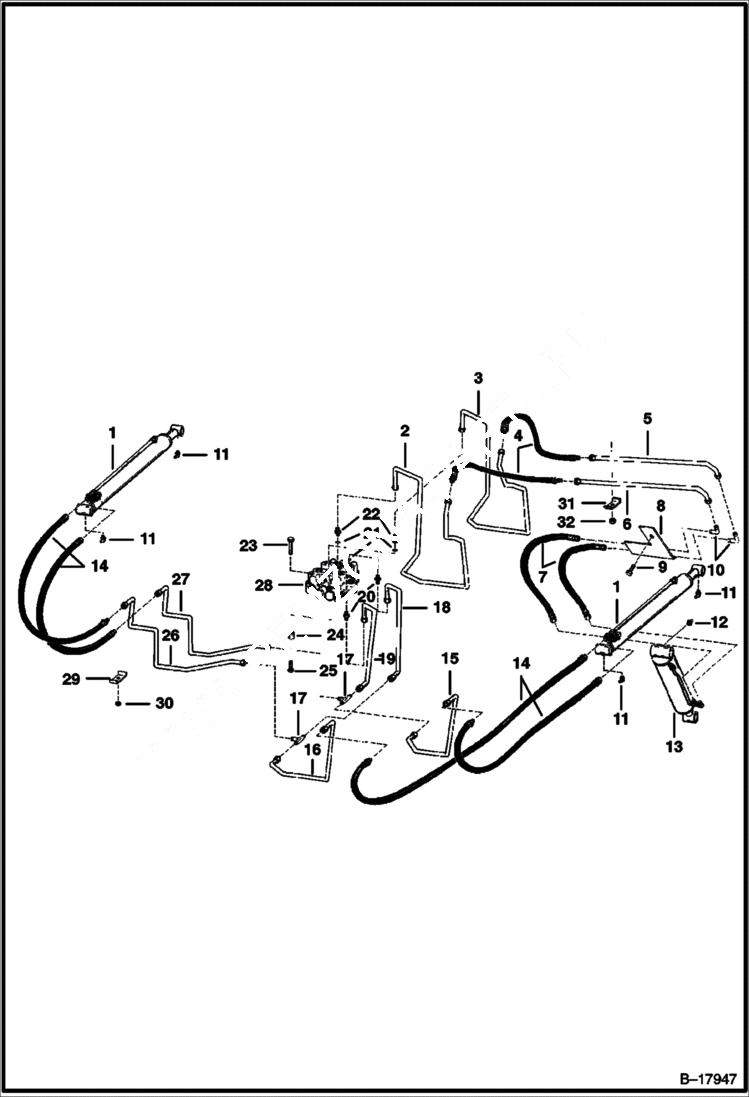

Запчасти Bobcat 400s HYDRAULIC CIRCUITRY HYDRAULIC SYSTEM

1

CYLINDER See Illustration LIFT CYLINDER/ B17948 See Illustration LIFT CYLINDER/ C1489 LIFT

2

6564113

TUBE

3

6564114

TUBE

4

6530855

HOSE Was 6565078 - A

5

6564116

TUBE Use W/ Ref. 10

5

6706073

TUBELINE Use W/O Ref. 10

6

6564115

TUBE Use W/ Ref. 10

6

6706072

TUBELINE Use W/O Ref. 10

7

6530857

HOSE Use W/Ref. 10 - WAS 6565078 - A

7

6706074

HOSE Use W/O Ref. 10

8

6553422

COVER

9

84G3724

BOLT Was 84G003720B - B

10

77F6

ELBOW

11

11H15

GREASE FITTING

12

10H25

FITTING, GREASE 5

13

CYLINDER See Illustration TILT CYLINDER/ B17950 TILT

14

6530859

HOSE Was 6565086 - A

15

6564107

TUBELINE

16

6564108

TUBELINE

17

10K5

TEE

18

6564111

TUBELINE

19

6564112

TUBE

20

731795

CONNECTR W/Ref. 21

21

79K10

O RING 10

22

731794

CONNECTR W/Ref. 21

23

17C556

BOLT

24

NUT NLA - Hydraulic valve coupling - Was 6564096 - A

25

17C508

BOLT

26

6564110

TUBELINE

27

6564109

TUBELINE

28

VALVE See Illustration HYDRAULIC VALVE/ B9634

29

6500989

CLAMP

30

85D6

NUT, 5

31

6502203

CLAMP

32

59D6

NUT
