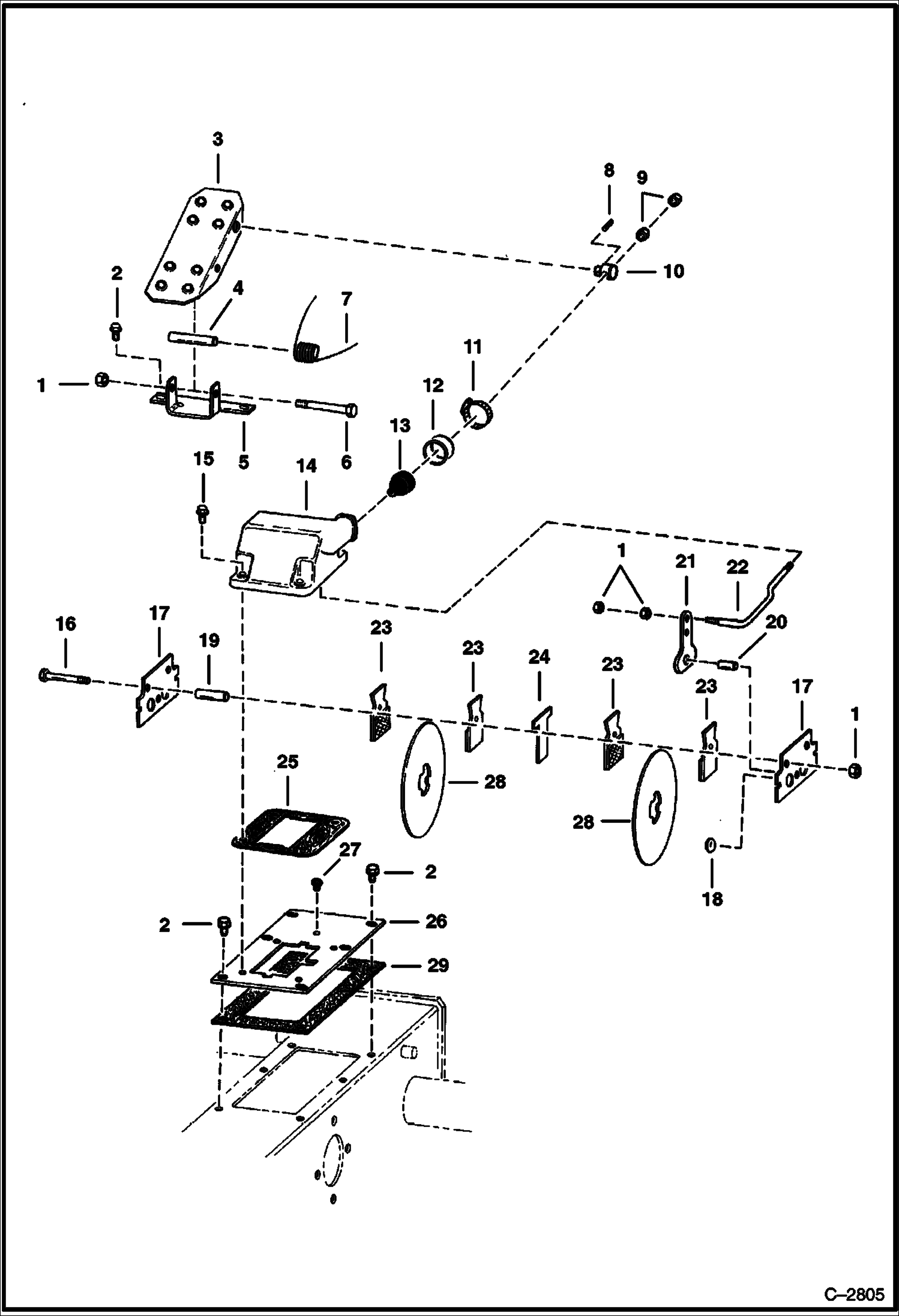

Запчасти Bobcat 400s BRAKES DRIVE TRAIN

1

85D6

NUT, 5

2

84G3716

SCREW 5

3

6563792

PEDAL

4

6564389

BUSHING

5

6563793

MOUNT

6

17C664

BOLT

7

6598800

SPRING

8

14J2512

PIN 5

9

85D8

NUT, 5

10

6563178

PIVOT

11

42H32

HS CLAMP5

12

6565117

TUBE

13

BOOT NLA - Was 6564713 - A

14

6531388

COVER Was 6563794 - A

15

84G3728

BOLT

16

17C652

BOLT

17

6563789

PLATE

18

6563786

CAM

19

6564390

BUSHING

20

14J3713

PIN

21

6598483

LEVER

22

6563790

ROD

23

6513603

PAD

24

6563787

SHIM .0329 (,83 mm)

24

6592880

SHIM .0179 (,45 mm)

25

6531389

GASKET Was 6563788 - A

26

6563791

COVER

27

6558506

PLUG

28

6559206

DISC, BRAKE Was 6529272 - A

29

6593418

GASKET
