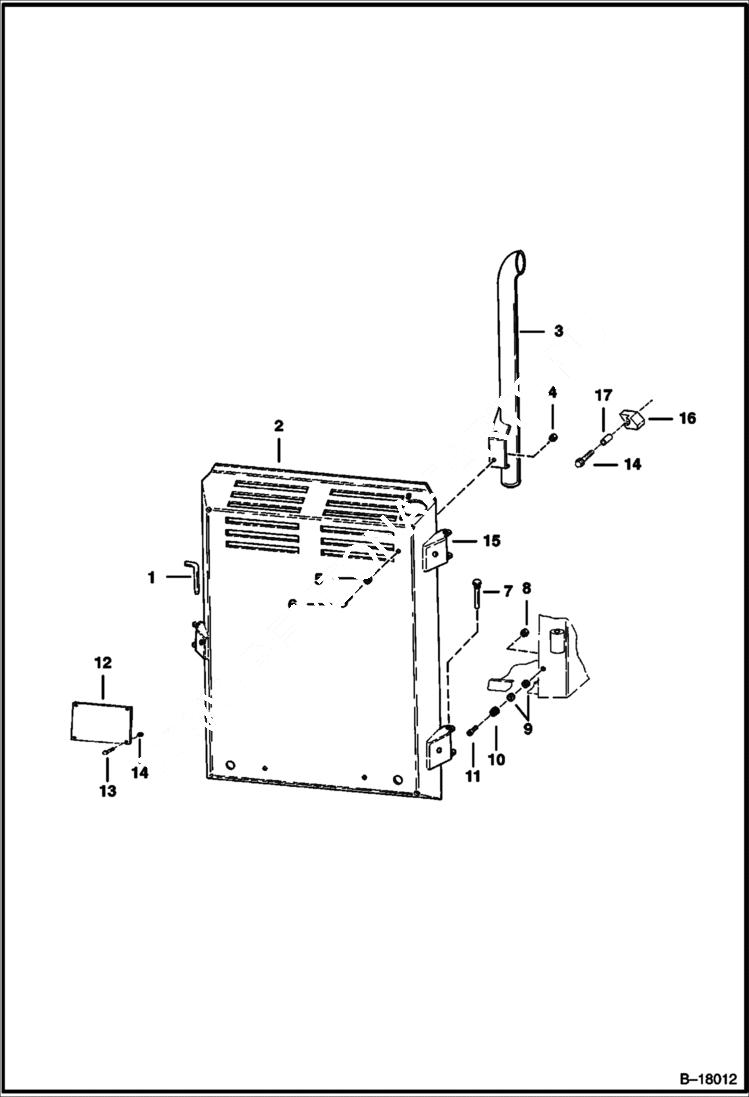

Запчасти Bobcat 400s REAR DOOR MAIN FRAME

1

6564192

PIN

2

DOOR NLA - Order 1- Ref. 2 - Ref. 12, 8-Ref. 8 & 13 - Was 6564865 - A

2

6707894

DOOR

3

6565813

EXHAUST PIPE exhaust - long

3

6712642

EXHAUST PIPE exhaust - short - Was 6716423 - A

4

61D6

NUT 5

5

25E17

WASHER 5

6

17C612

BOLT 5

7

6564340

PIN

8

83D5

NUT 5

9

25E16

WSHR

10

6511847

BUMPER

11

73G516

SCREW

12

6707884

COVER

13

25G514

BOLT

14

84G3728

BOLT

15

6562225

HINGE

16

6565526

STOP

17

6563612

BUSHING
