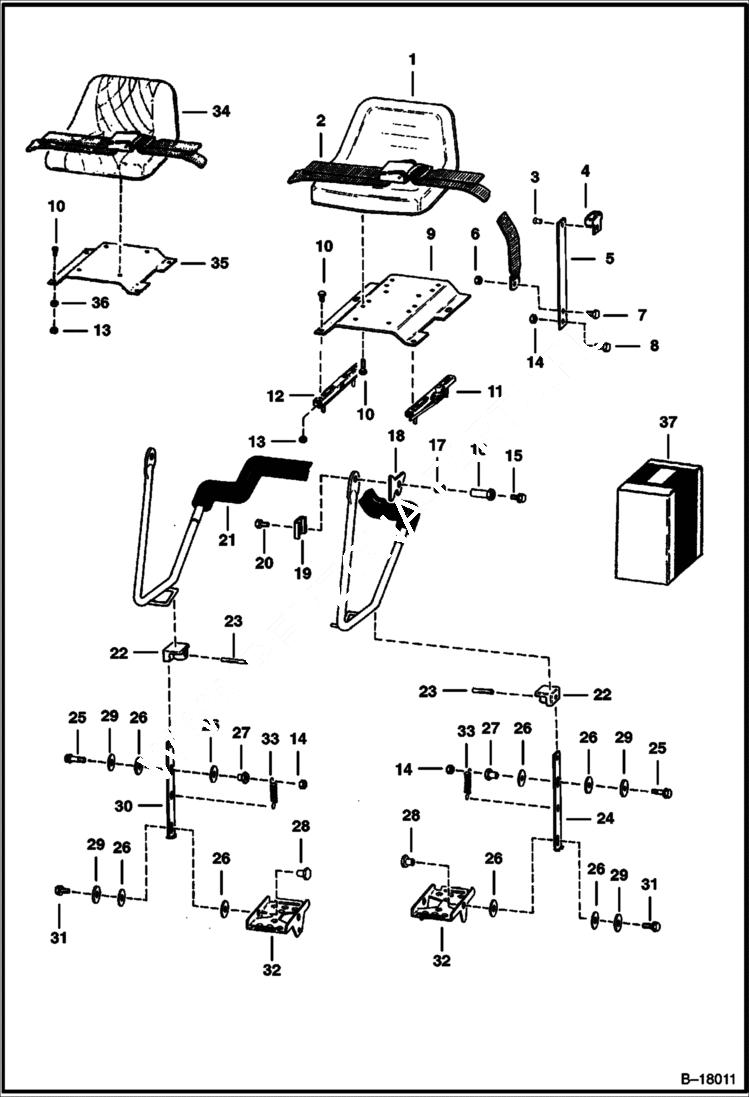

Запчасти Bobcat 400s SEAT & SEAT BAR (S/N 11950 & Above) MAIN FRAME

1

6591598

SEAT Milsco

2

SEAT BELT NLA - Order 6725403 - Was 6564774 - A

2

SEAT BELT NLA - Order 6725403 seat belt - Was 6667875 - A

2

SEAT BELT NLA - W/Spring Plates - Order 6675074 Seat Belt & (2) of 6725373 Spring Plate - Was 6725403 - A

2

6675074

SEAT BELT W/O spring plates

3

6630207

RIVET 5 Was 6512797 - B

4

GUIDE NLA - Order 6703703 - Was 6565355

5

GUIDE ASSY NLA - W/Ref. 3 & 4 - 13.75'' long-Use W/NLA 6564774 seat belt - Was 6565354 - A

5

GUIDE ASSY NLA - W/Ref. 3 & 4 - 12.25'' long-used W/NLA 6667875 - Order 6711908 spring plate, Ref. 4 & (2) of Ref. 3 - Was 6711907 - A

5

6711908

SPRING PLATE Use W/Ref. 2 (NLA/6667875 Seat Belt)

5

6725373

SPRING PLATE Use W/Ref. 2 (6675074 seal belt)

6

85D7

NUT

7

17C716

BOLT

8

17C612

BOLT 5

9

MOUNT NLA - Only Ref. 1 - Order Ref. 35 - Was 6565287 - A

10

17C512

BOLT 5 Was 17C000510B - B

11

6599779

ADJUSTER

12

6599780

TRACK

13

85D5

NUT 5

14

85D6

NUT, 5

15

35C608

BOLT

16

6568742

BUSHING

17

6704453

SPRING Was 6578252 - A

18

6563313

RETAINER

19

6563557

WASHER

20

17C608

BOLT

21

SEAT BAR See BTI278 NLA

21

6704562

SEAT BAR

22

6702343

BLOCK Was 6702343 - A

23

14J2512

PIN 5 Was 14J002510B - B

24

6594293

LINK

24

6704559

LOCK W/Ref. 22, 23 - Was 6704557 - A

25

35C624

BOLT

26

6700170

WASHER nylon

27

6559479

NUT

28

6594298

NUT

29

872229

WASHER

30

6594294

LINK

30

6704558

LOCK W/Ref. 22, 23 - Was 6704556 - A

31

35C616

BOLT 5

32

PEDAL NLA - Order 6707056 pedal & 6707053 link - Was 6594297 - A

33

6594284

SPRING

34

6643253

SEAT, OPERATOR VINYL See Note - Michigan Seat Co.

35

6594257

BRACKET Use W/Ref. 1 & 34

36

774220

NUT

37

KIT NLA - W/Ref. 2 & 5 - Order Ref. 2 (6725403 seat belt) - Was 6713061 - A
