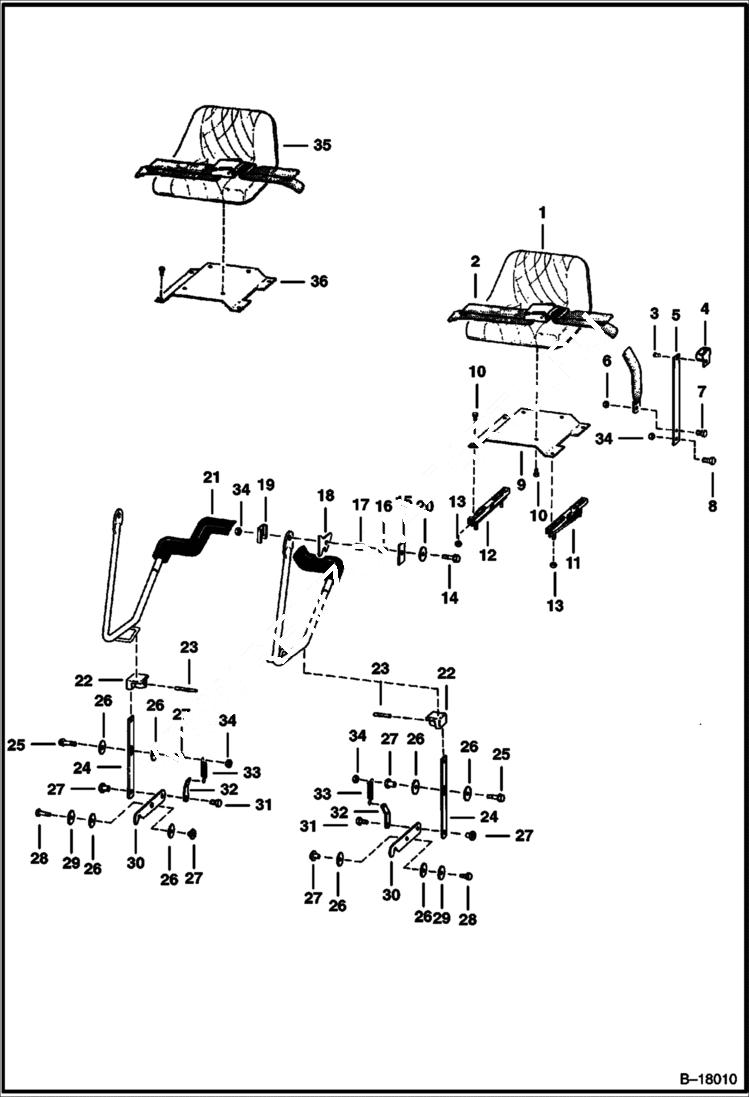

Запчасти Bobcat 400s SEAT & SEAT BAR (S/N 11949 & Below) MAIN FRAME

1

6591598

SEAT

2

SEAT BELT See Illustration SEAT & SEAT BAR/ B18011 NLA - WAS 6564774 - A

3

6630207

RIVET 5 Was 6512797 - B

4

GUIDE NLA - Order 6703703 - Was 6565355

5

6565354

GUIDE ASSY. W/Ref. 3 & 4

6

85D7

NUT

7

17C716

BOLT

8

17C612

BOLT 5

9

MOUNT NLA - Order Ref. 36 - Was 6565287 - A

10

17C510

BOLT

11

6599779

ADJUSTER

12

6599780

TRACK

13

85D5

NUT 5

14

17C632

BOLT 5

15

6564506

WASHER

16

6564507

BUSHING

17

6704453

SPRING Was 6578252 - A

18

6563313

RETAINER

19

6563557

WASHER

20

25E17

WASHER 5

21

SEAT BAR See BTI278 NLA - Was 6564882 - A

22

6702343

BLOCK Was 6563148 - A

23

14J2512

PIN 5 Was 14J002510B - B

24

6564129

LINK

25

35C620

BOLT 5 Was 31C000620B - A

26

6700170

WASHER nylon - Was 6563152 - A

27

6559479

NUT

28

35C612

BOLT Was 31C000612B - A

29

872229

WASHER

30

6593352

LOCK

31

17C608

BOLT

32

6564483

BRACKET

33

6505076

SPRING

34

85D6

NUT, 5

35

6643253

SEAT, OPERATOR VINYL Michigan Seat Co.

36

6594257

BRACKET
