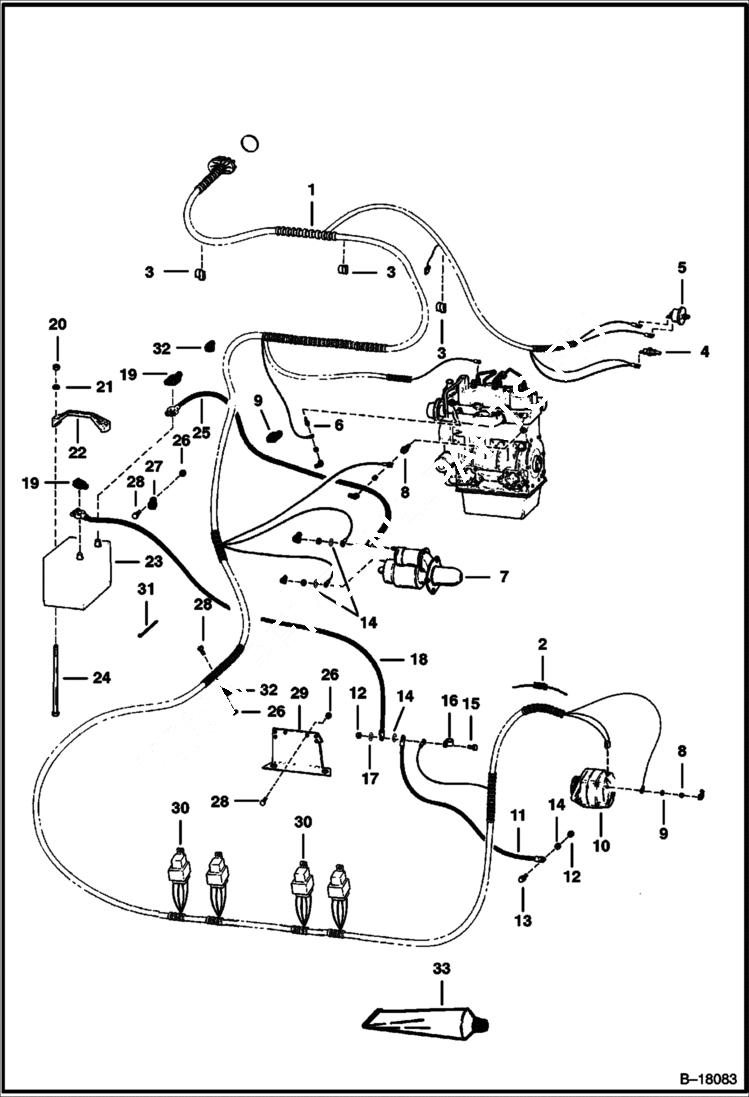

Запчасти Bobcat 400s ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6703688

HARNESS engine

1

6705156

HARNESS engine

2

3675725

DIODE

3

6599698

CLIP

4

6632633

SWITCH hyd temp

5

6671062

SWITCH hydro. pressure - Was 6664577 - A

6

6658818

SENDER eng temp - threaded connector

7

STARTER See Illustration STARTER (SEALED)/ B17654 See Illustration STARTER/ B1192

8

6969775

SWITCH, OIL PRESSURE engine oil pressure - Was 6652576 - A

9

31H42

CLIP

10

ALTERNATOR See Illustration ALTERNATOR/ C2999

11

6565170

CABLE neg

12

85D6

NUT, 5

13

84G3712

BOLT 5

14

6E6

WASHER

15

17C618

BOLT

16

30H42

CLAMP

17

25E17

WASHER 5

18

6514559

CABLE

19

2356058

BOOT

20

59D5

NUT 5

21

25E15

WASHER

22

6569203

CLAMP

23

6674687

BATTERY, DRY 600 AMP Was 6669318 - A

23

6630154

CAP gang - Danger

23

6630155

CAP gang - Poison

23

CAP NLA - tilt-tite - Was 6514898 - A

24

6569623

BOLT

25

6557450

CABLE

26

85D4

NUT 5

27

31H17

CLAMP

28

17C410

BOLT 10

29

6564401

MOUNT

30

6651975

SWITCH

31

6610510

TIE Was 6591255 - A

32

30H54

CLIP

33

6599360

SEALANT, ELEC .3 OZ electrical - tube - 3 oz
